Oldsmobile
>>
2002
>>
Bravada AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt System
>>
Schematic and Routing Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic and Routing Diagrams

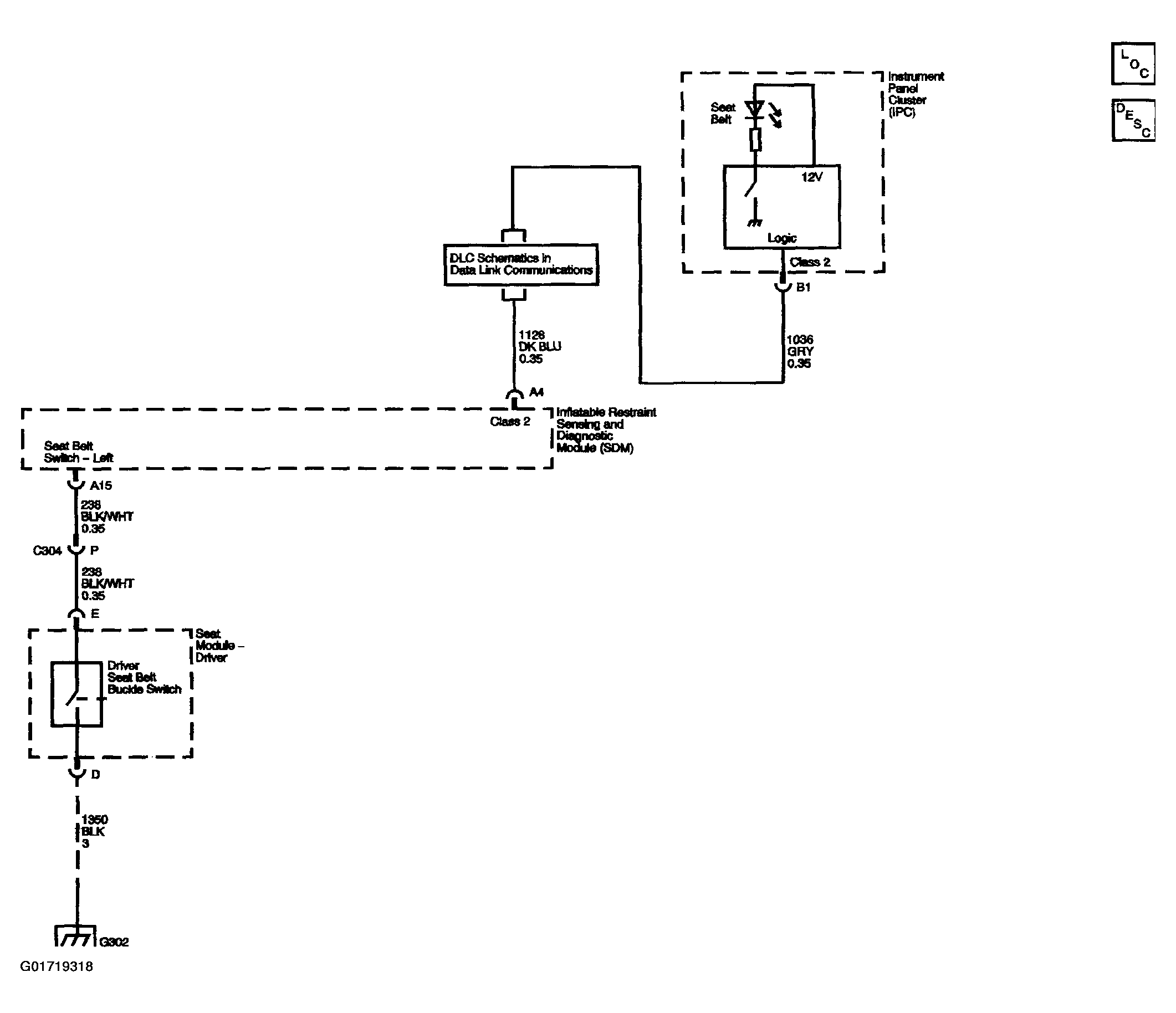

Fig 1: Seat Belt Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
