Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door lock. Refer to Lock Replacement - Front Door .
  4. Remove the front door inside handle rod from the front door lock.

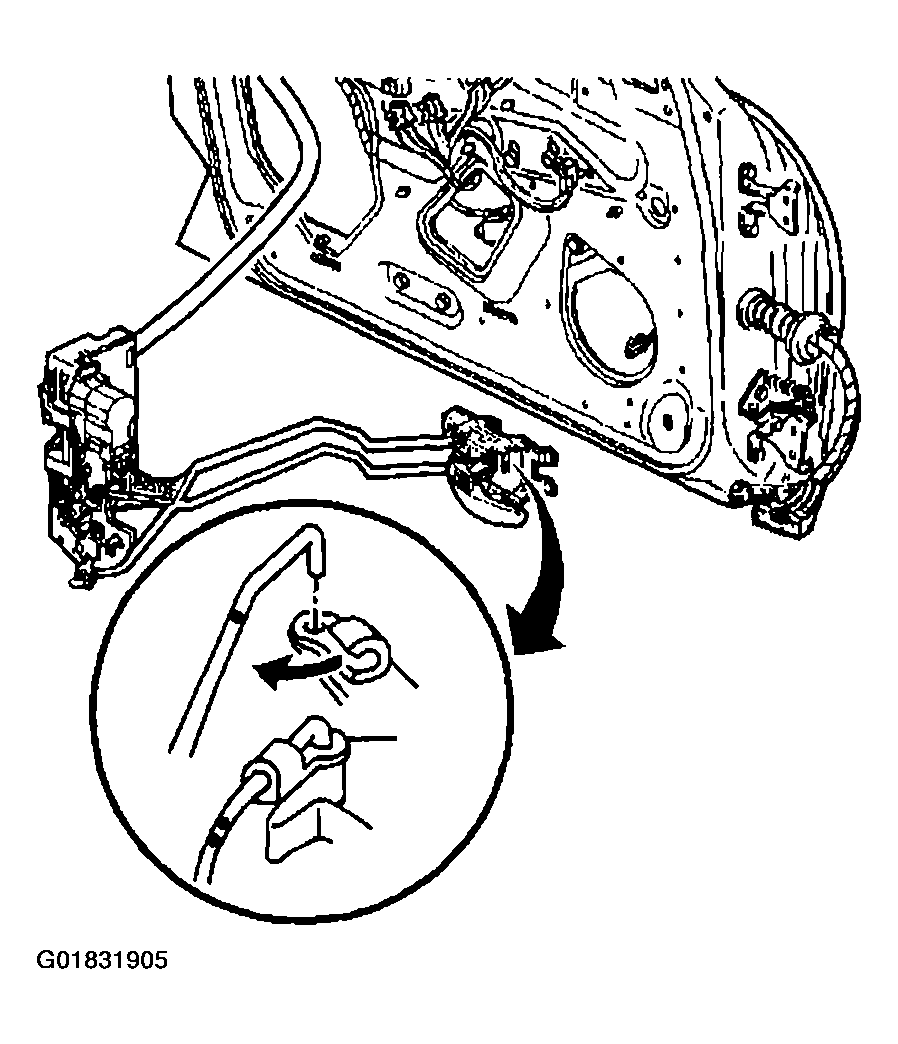

    Fig 1: Removing Front Door Inside Handle Rod From Front Door Lock
    G01831905Courtesy of GENERAL MOTORS CORP.
