Removal Procedure

Important:

• The door locks use the fork bolt lock design which includes a safety interlock feature. The door is secured in a closed position when the door lock fork bolt engages the striker. Rotate the lock knob rearward in order to unlock the door from the inside.
• Replace the door lock if it is faulty. Do not attempt to repair.

1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .

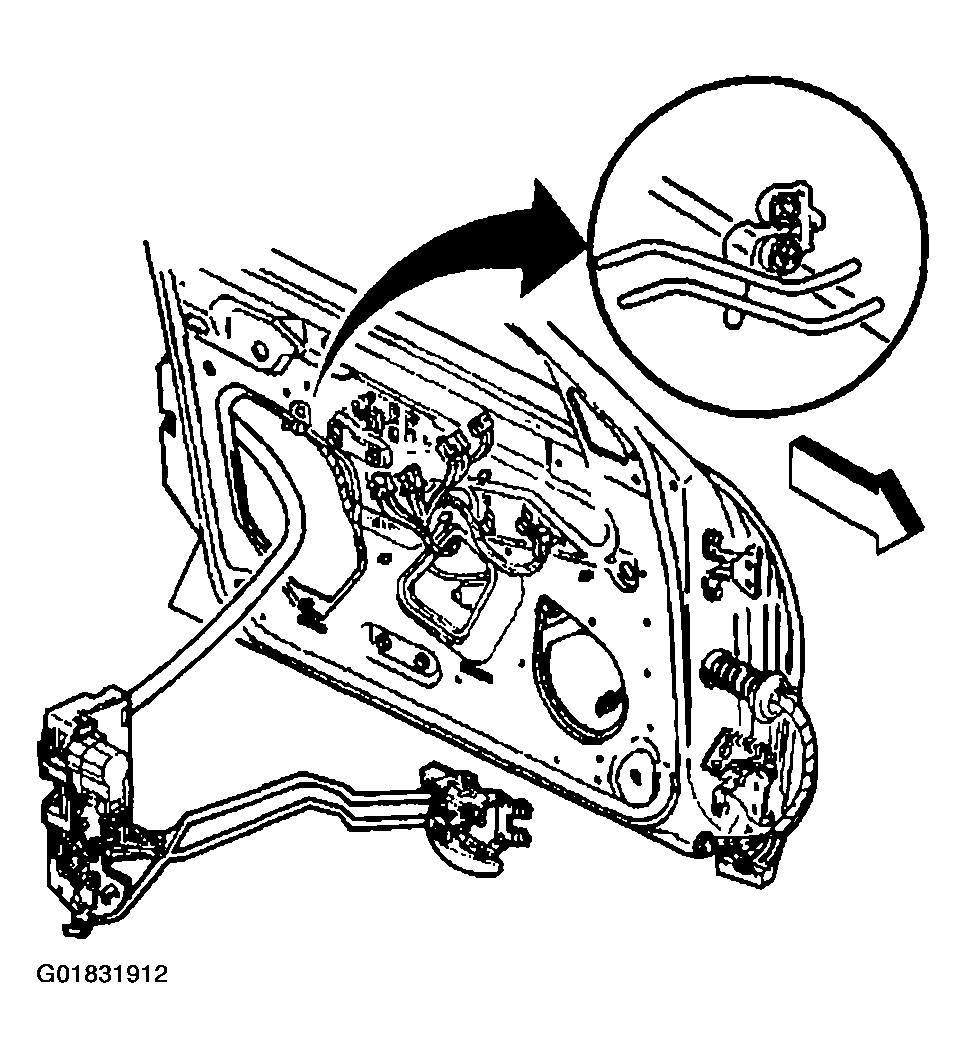

   Fig 1: Removing Front Door Locking Rods

   Courtesy of GENERAL MOTORS CORP.
3. Remove the rods from the front door inside handle.
4. Use side cutters in order to remove the lock-to-rod clip which secures the front door outside handle rod to the front door lock.
5. Discard the lock-to-rod clip.
6. Disconnect the front outside door lock cylinder rod.
7. Remove the rods from the plastic door clip.

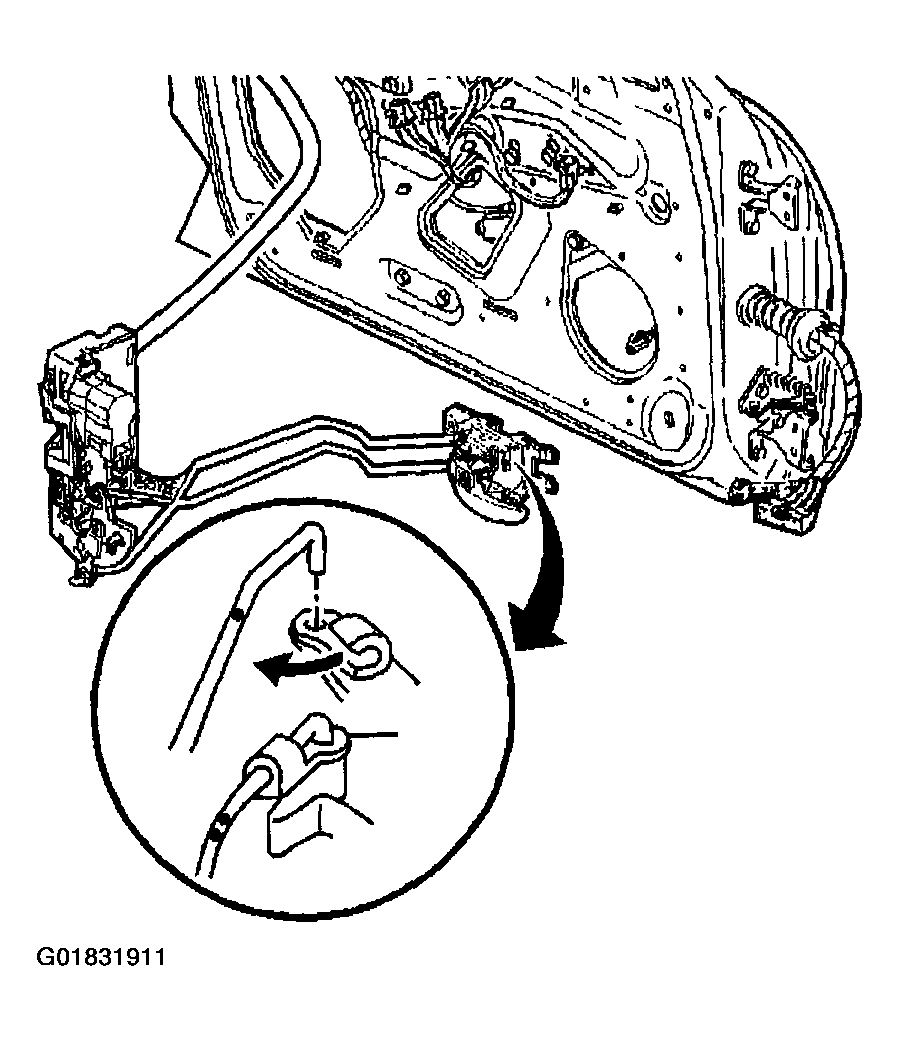

   Fig 2: Removing Rods From Plastic Door Clip

   Courtesy of GENERAL MOTORS CORP.
8. Remove the screws (1, 2, 3) which secure the front door lock to the front door.

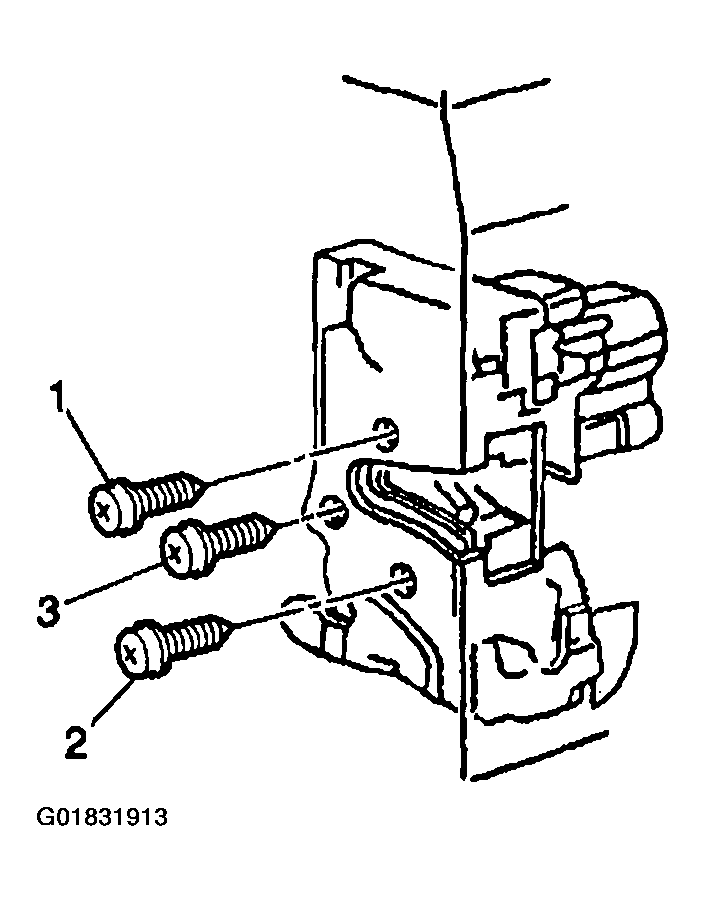

   Fig 3: Removing Screws Which Secure Front Door Lock To Front Door

   Courtesy of GENERAL MOTORS CORP.
9. Disconnect the electrical connectors from the front door lock.

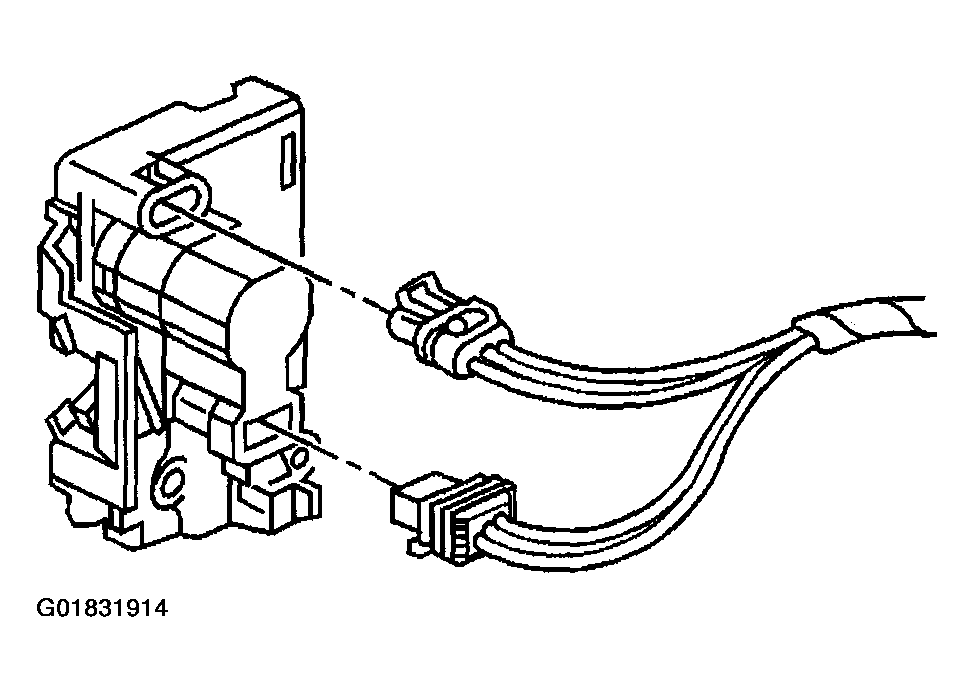

   Fig 4: Disconnecting Electrical Connectors From Front Door Lock

   Courtesy of GENERAL MOTORS CORP.
10. Remove the front door lock with the inside handle rods attached, from the front door.
11. Remove the front door handle rods from the front door lock.
    Fig 5: Removing Front Door Handle Rods From Front Door Lock

    Courtesy of GENERAL MOTORS CORP.
