Removal Procedure

  1. Remove the wire harness cover from the lighted rearview mirror, if equipped.

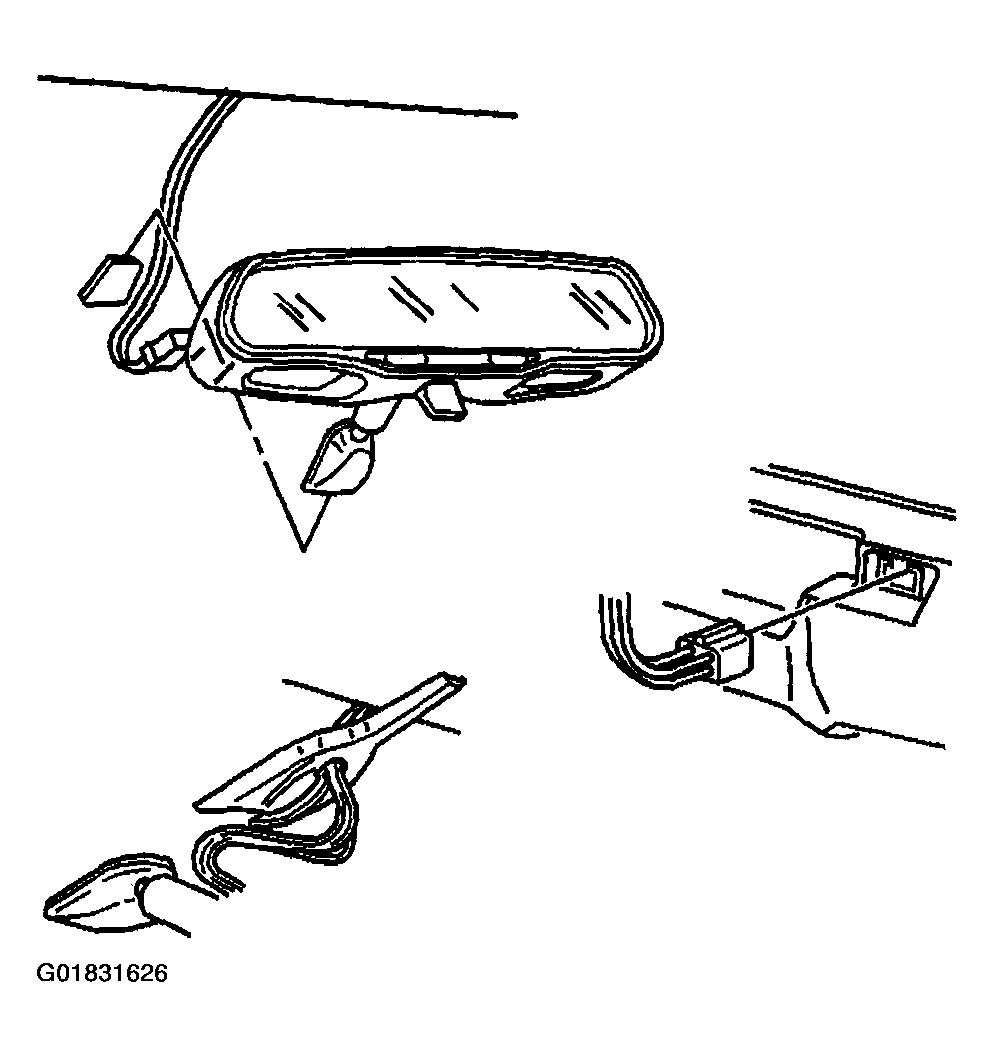

    Fig 1: Removing Wire Harness Cover
    G01831626Courtesy of GENERAL MOTORS CORP.
  2. Remove the screw from the base.
  3. Slide mirror off of the support.
  4. Disconnect the electrical connector from the lighted rearview mirror, if equipped.
    Fig 2: Removing Electrical Connector & Screw
    G01831627Courtesy of GENERAL MOTORS CORP.
