Component Locations

NOTE: Starter relay may also be referred to as crank relay.
COMPONENT LOCATIONS

Component Location
CRANK Fuse In Underhood Fuse Block
Powertrain Control Module In Air Cleaner Assembly, Front Left Of Engine Compartment
Starter (1) On Lower Left Front Of Engine
STARTER Relay In Underhood Fuse Block
Starter Solenoid On Top Of Starter
(1) See Fig 1 .

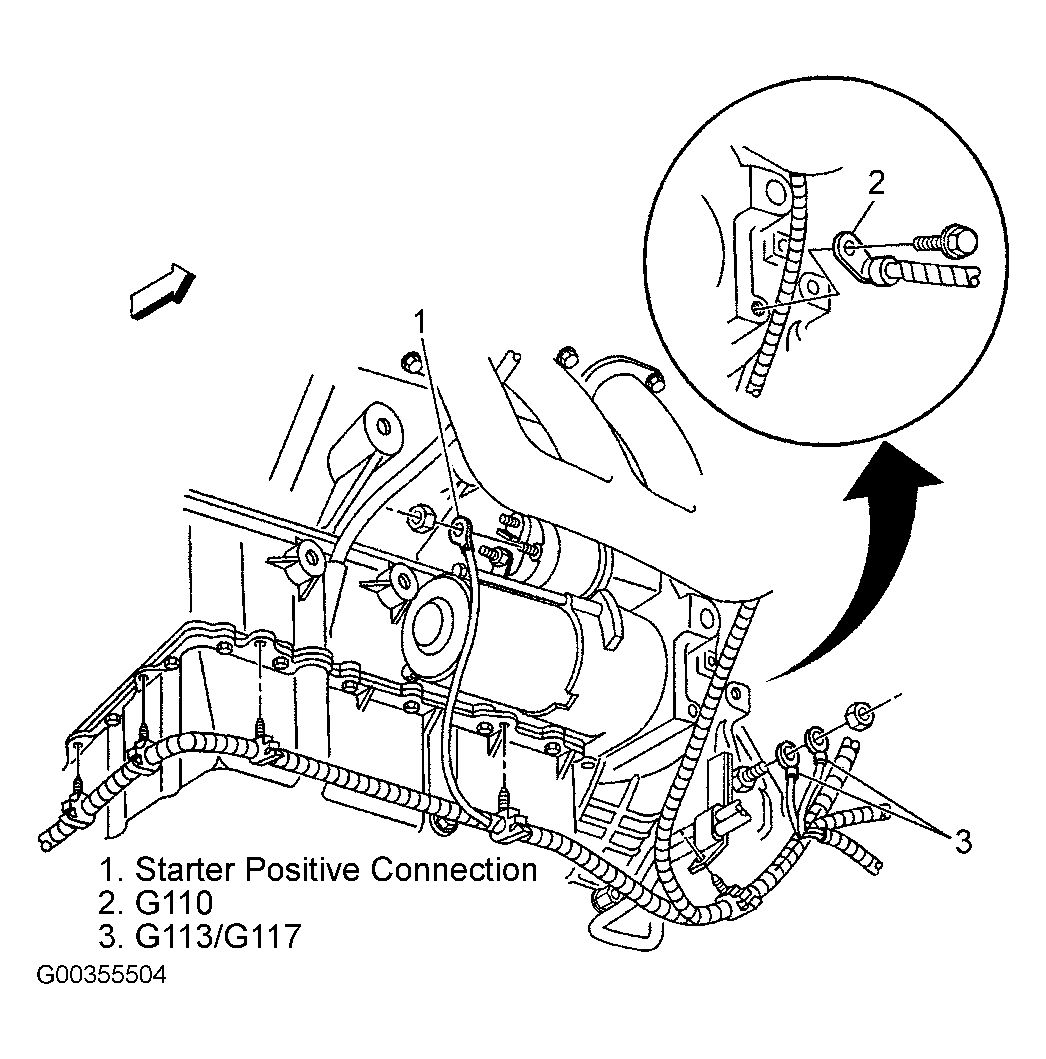

Fig 1: Locating Starter
G00355504Courtesy of GENERAL MOTORS CORP.
