Removal Procedure

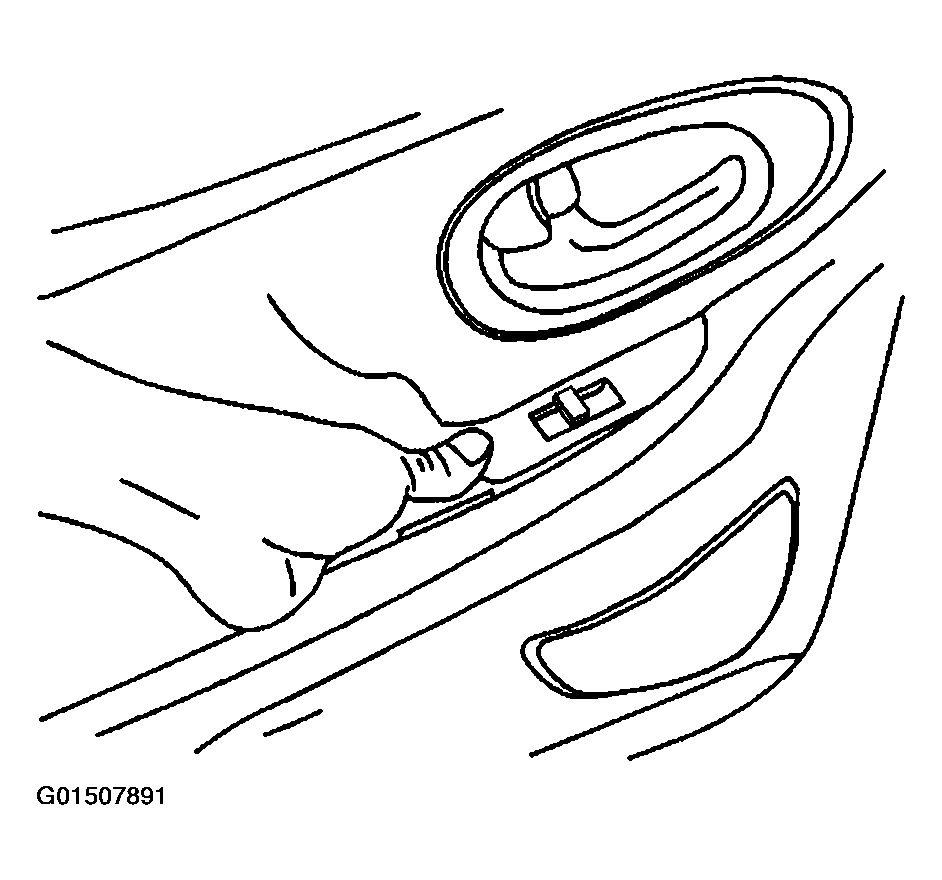

- Place forefinger under the lower rear edge of the switch plate.
- Place thumb at the upper rear end of the switch plate along the curved surface.
- While pulling rearward with forefinger and holding pressure with thumb, flex and lift the rear of the switch plate upwards.
- Insert a small flat bladed tool under the forward edge of the switch plate.
- Gently pry the forward edge of the switch plate upwards.
- Lift the entire switch plate upwards to remove.
- Disconnect the electrical connector.
Courtesy of GENERAL MOTORS CORP.
