Stationary Windows Connector End Views

Fig 1: Identifying Inside Rearview Mirror Connector End View
G01507627Courtesy of GENERAL MOTORS CORP.

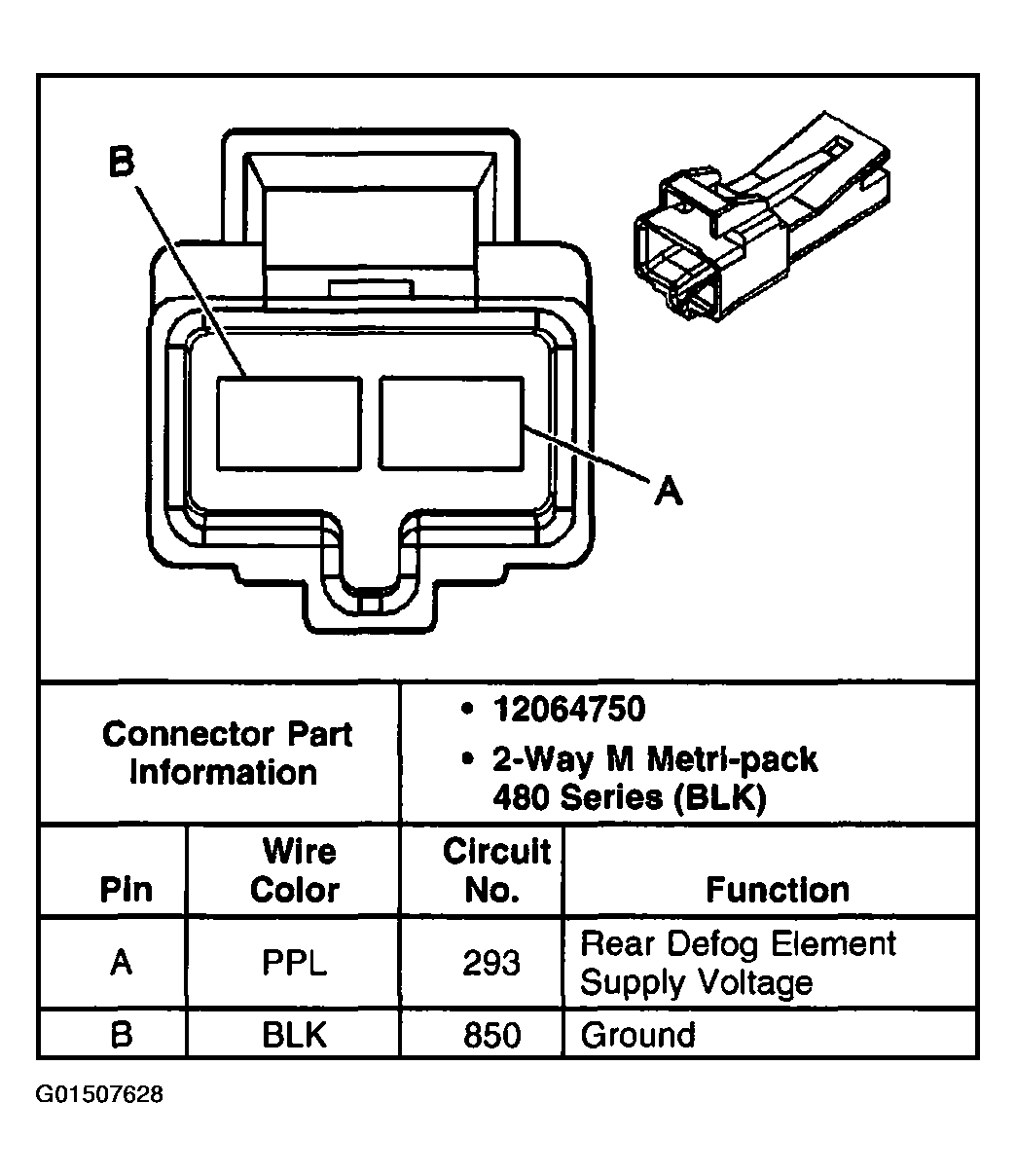

Fig 2: Identifying Rear Window Defogger Connector End View - Driver
G01507628Courtesy of GENERAL MOTORS CORP.

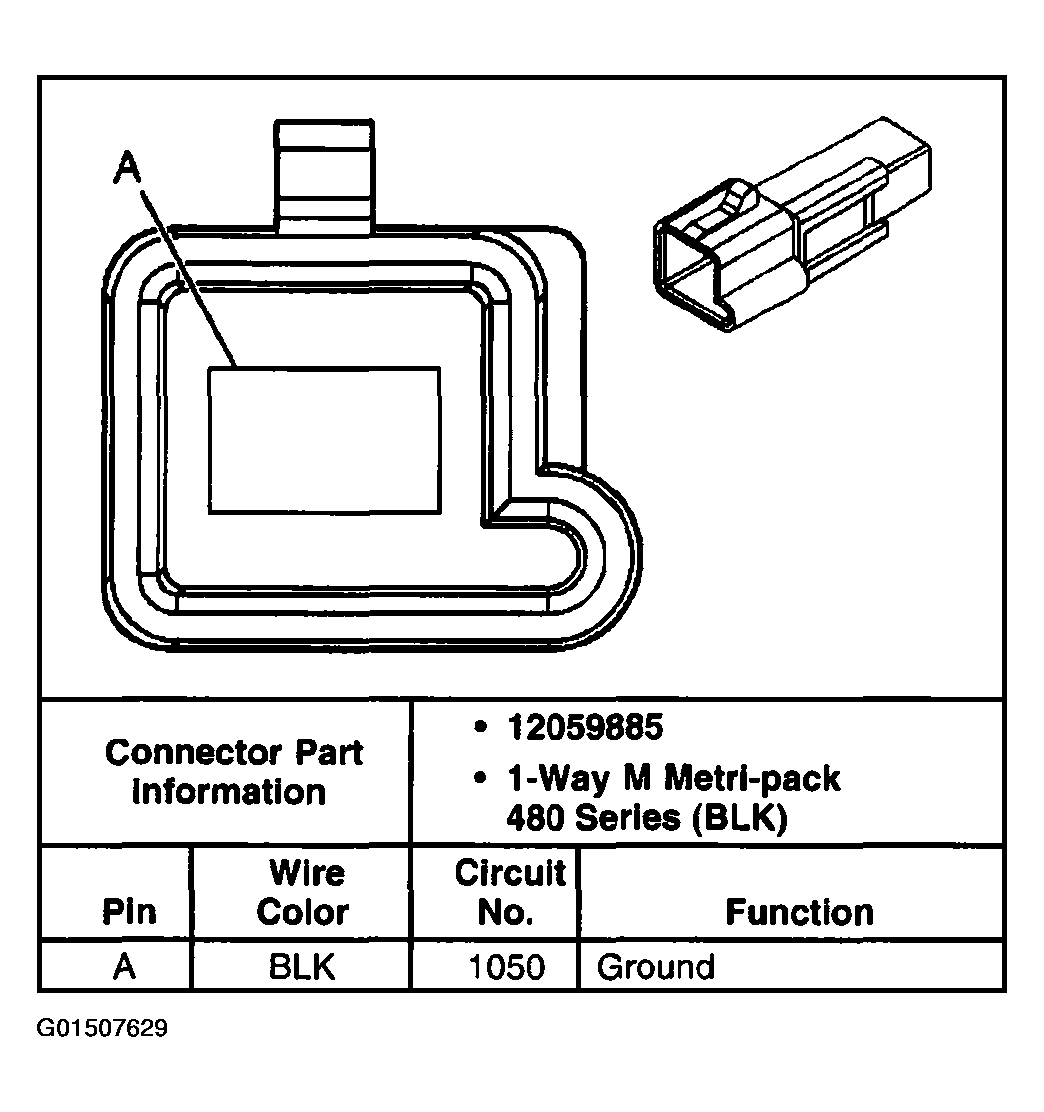

Fig 3: Identifying Rear Window Defogger Connector End View - Passenger
G01507629Courtesy of GENERAL MOTORS CORP.
