ABS Connector End Views

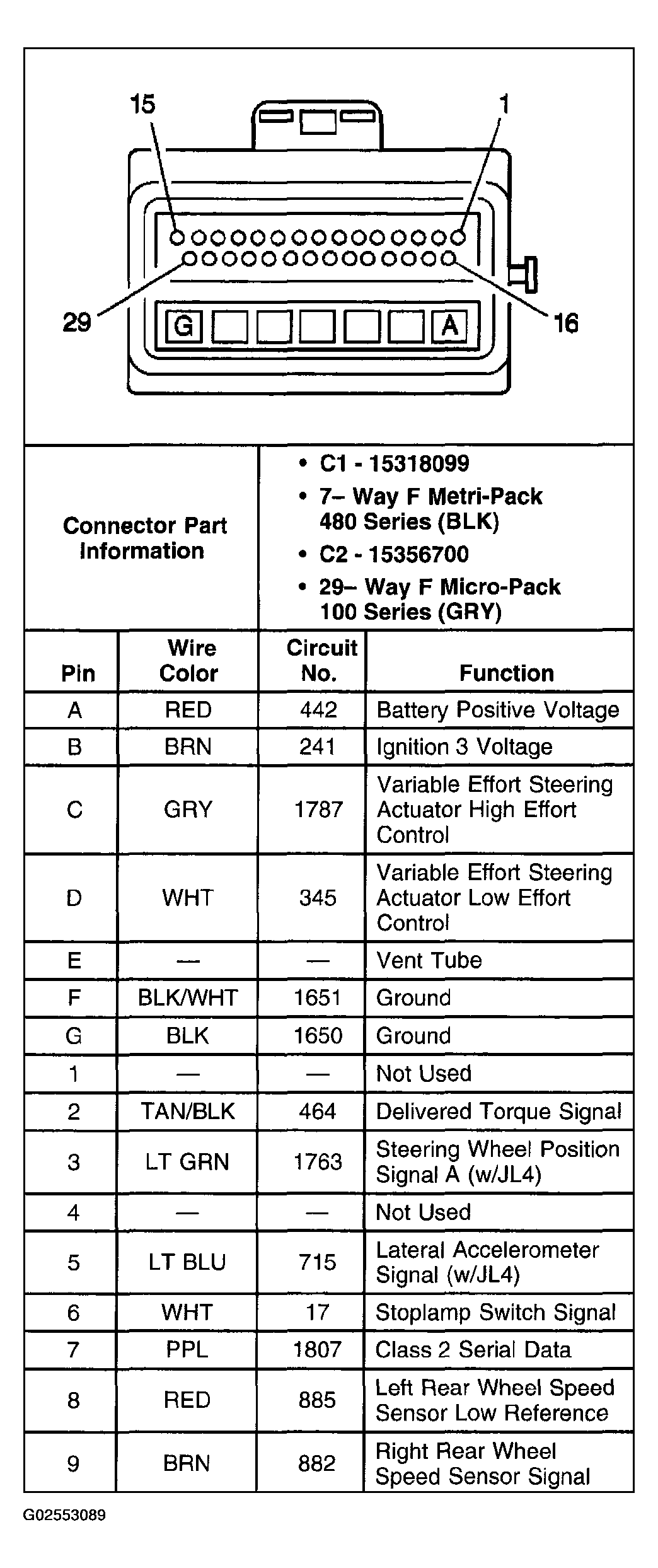

Fig 1: Identifying Electronic Brake Control Module Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

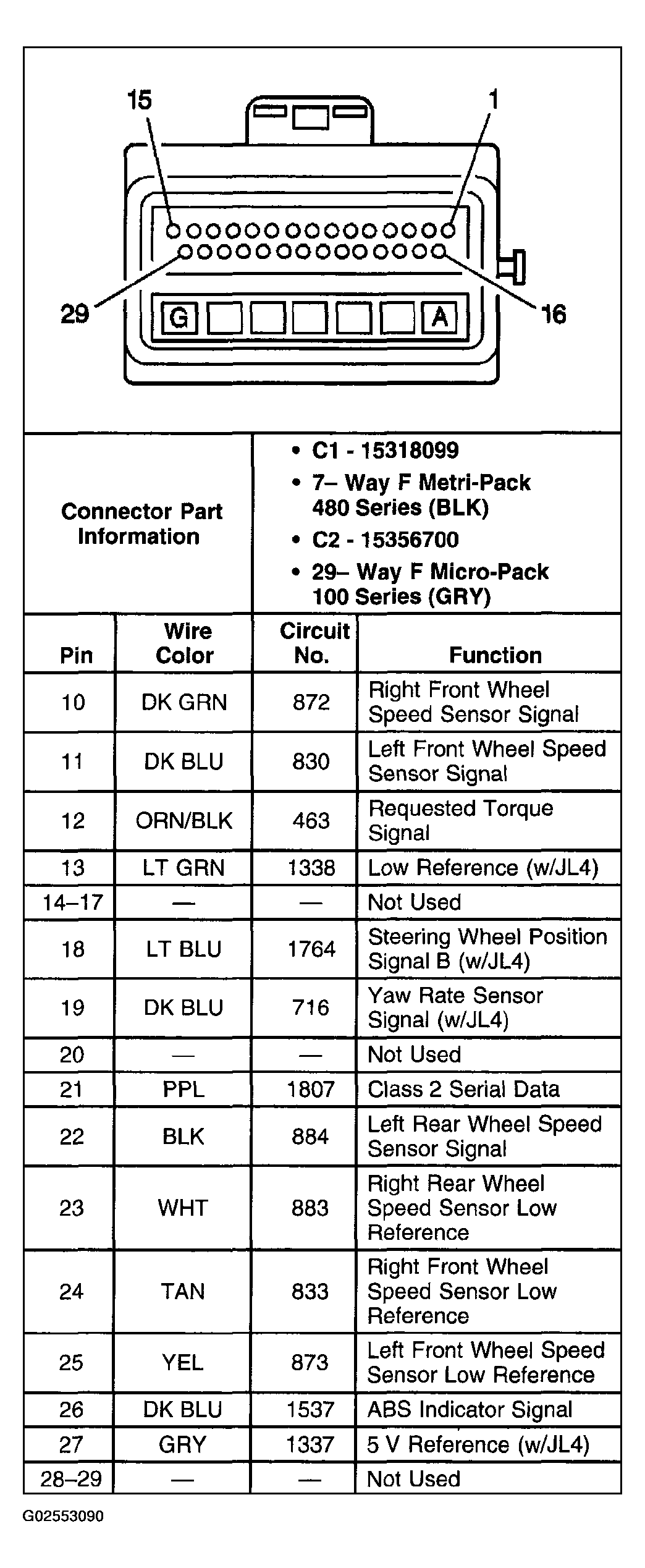

Fig 2: Identifying Electronic Brake Control Module Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

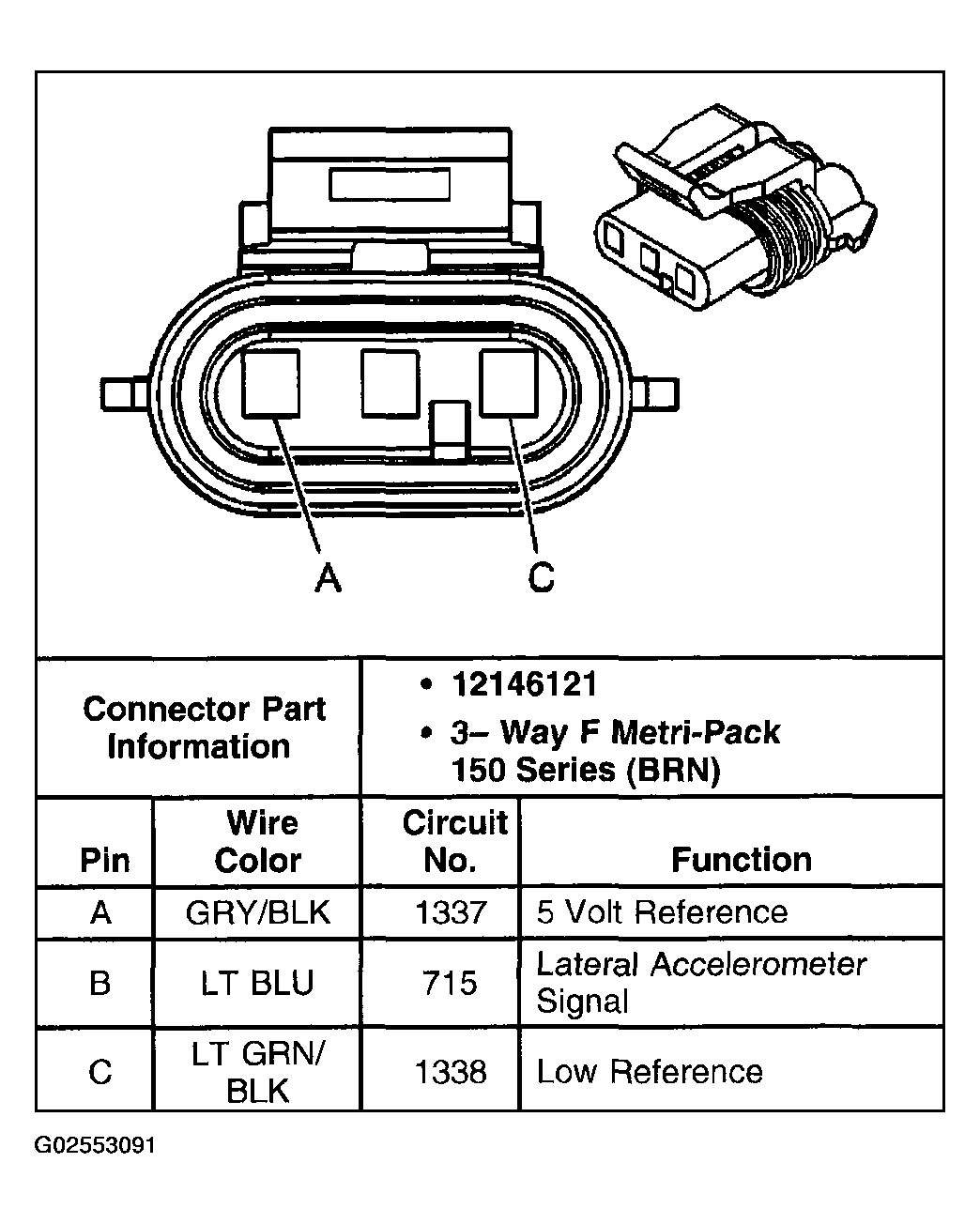

Fig 3: Identifying Lateral Accelerometer Sensor Connector Terminals (With JL4)

Courtesy of GENERAL MOTORS CORP.

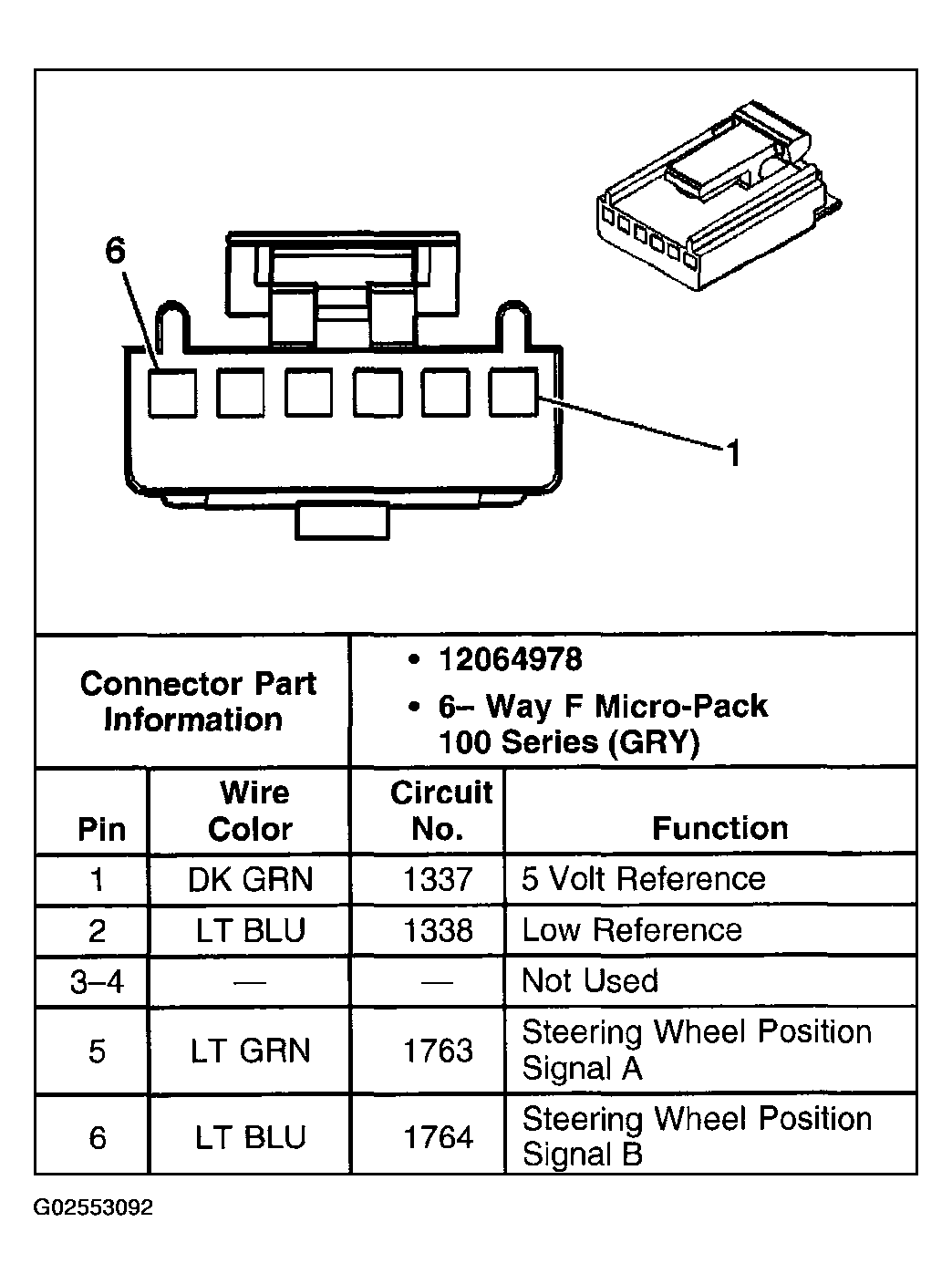

Fig 4: Identifying Steering Wheel Position Sensor Connector Terminals (With JL4)

Courtesy of GENERAL MOTORS CORP.

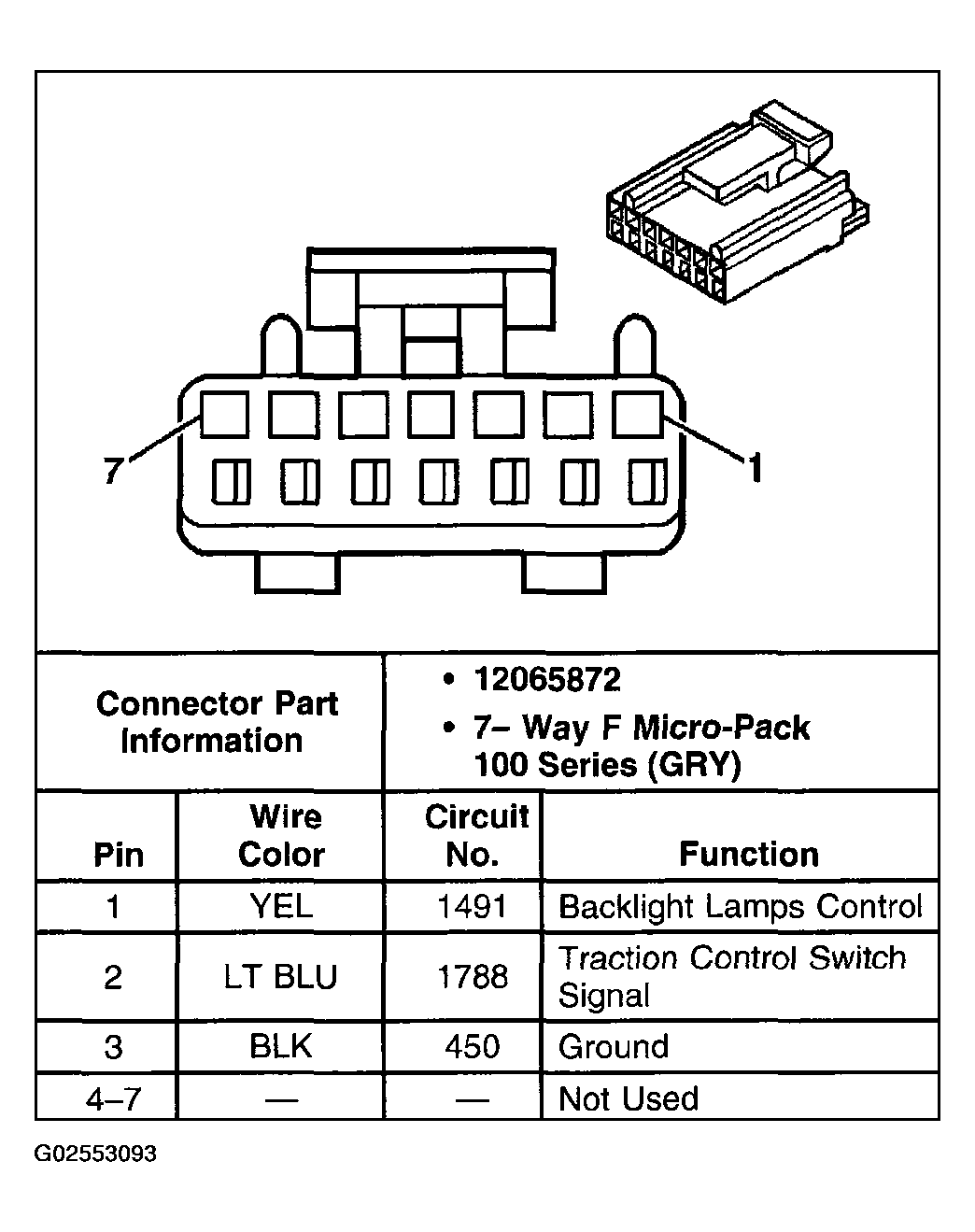

Fig 5: Identifying Traction Control Switch Connector Terminals (With NW9)

Courtesy of GENERAL MOTORS CORP.

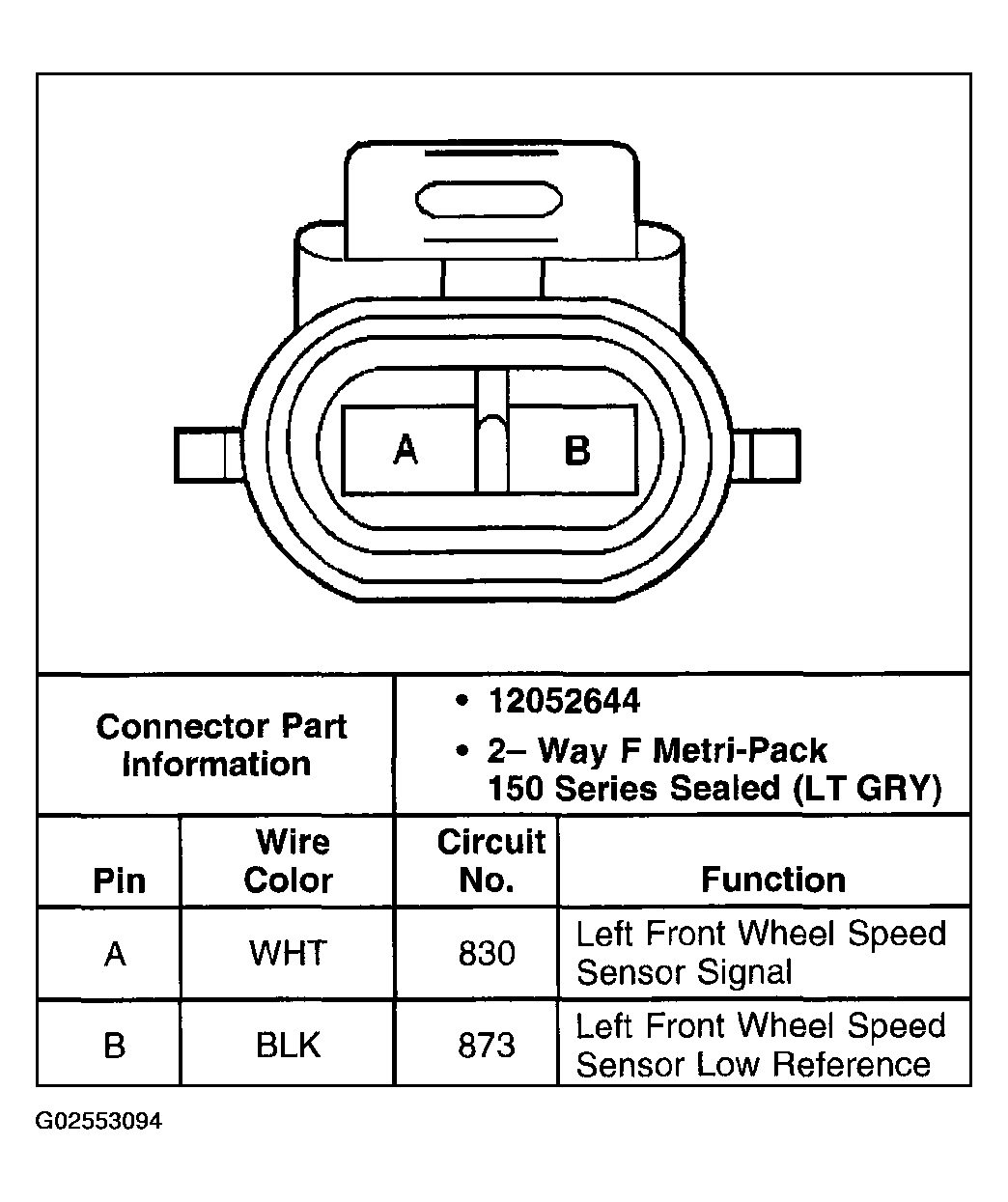

Fig 6: Identifying LF Wheel Speed Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

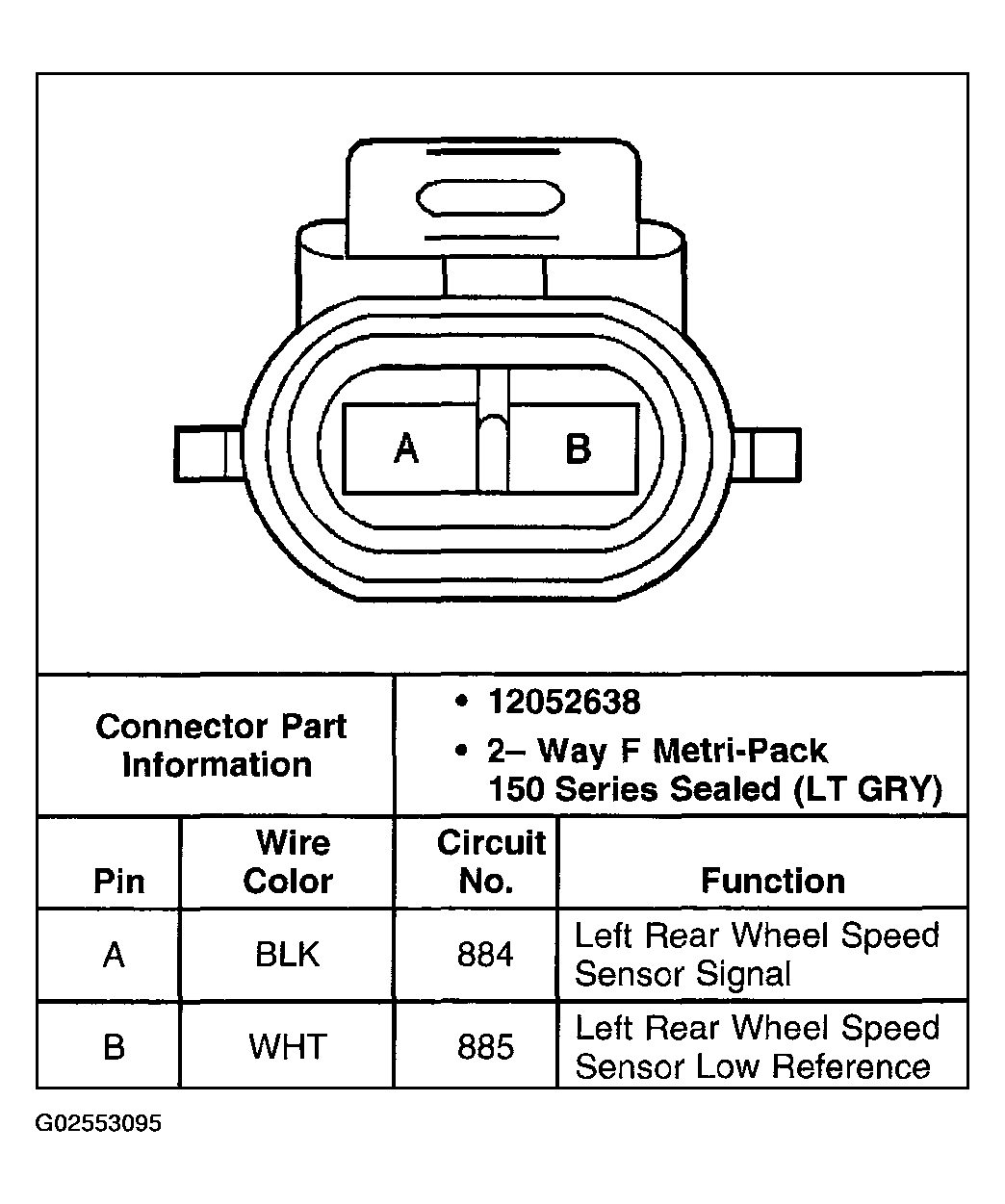

Fig 7: Identifying LR Wheel Speed Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying RF Wheel Speed Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

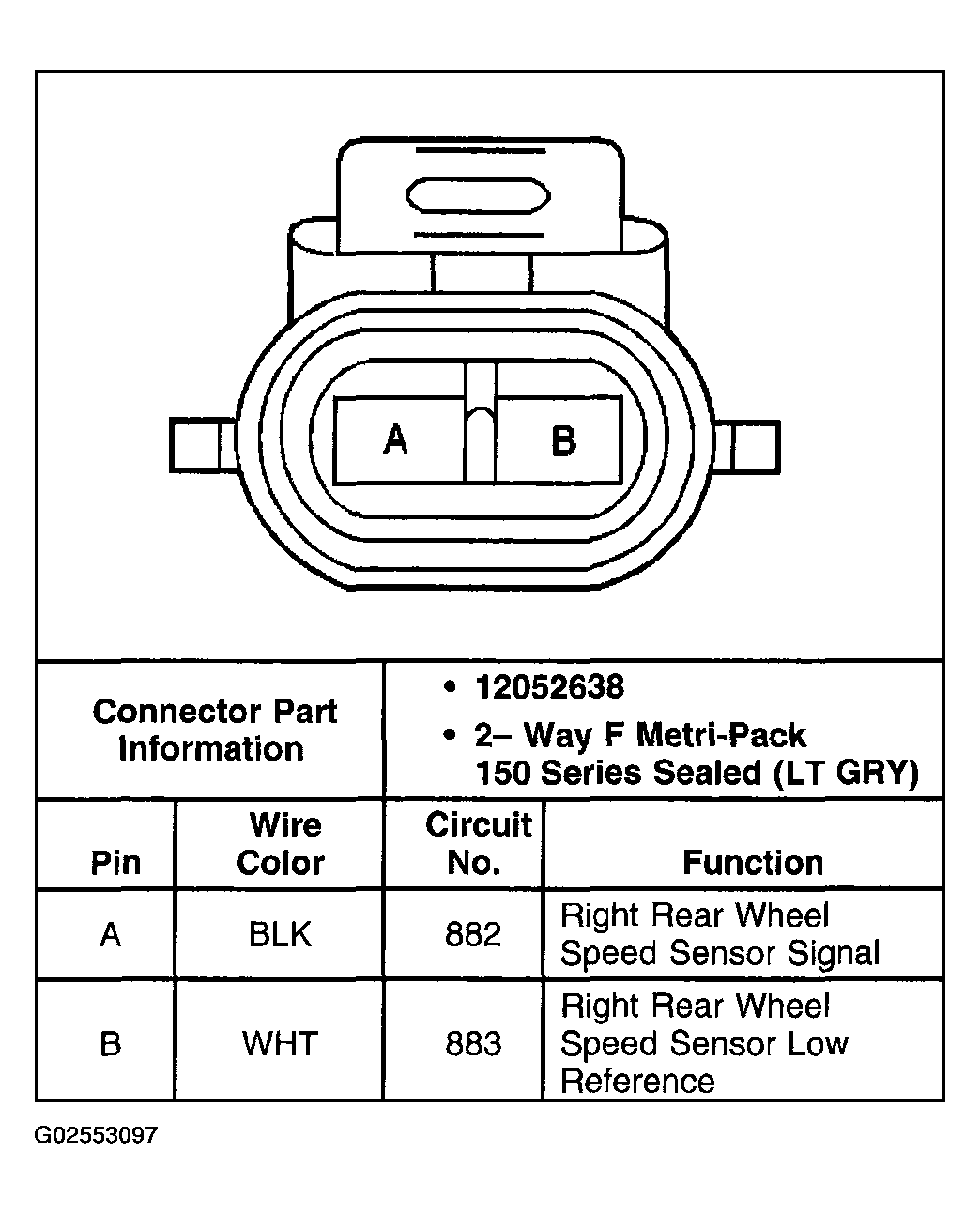

Fig 9: Identifying RR Wheel Speed Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

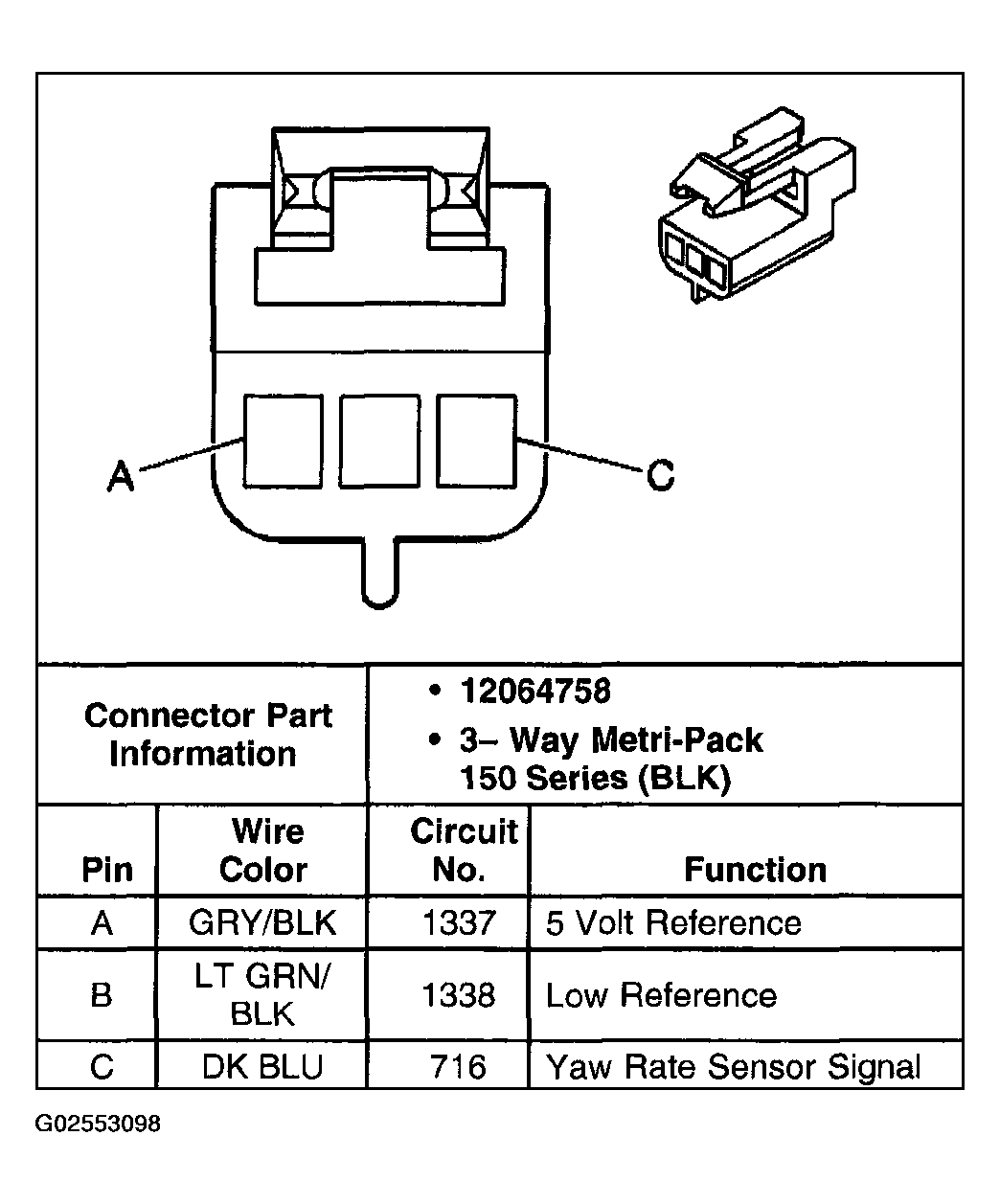

Fig 10: Identifying Yaw Rate Sensor (With JL4) Connector Terminals

Courtesy of GENERAL MOTORS CORP.
