Engine Electrical Component Views

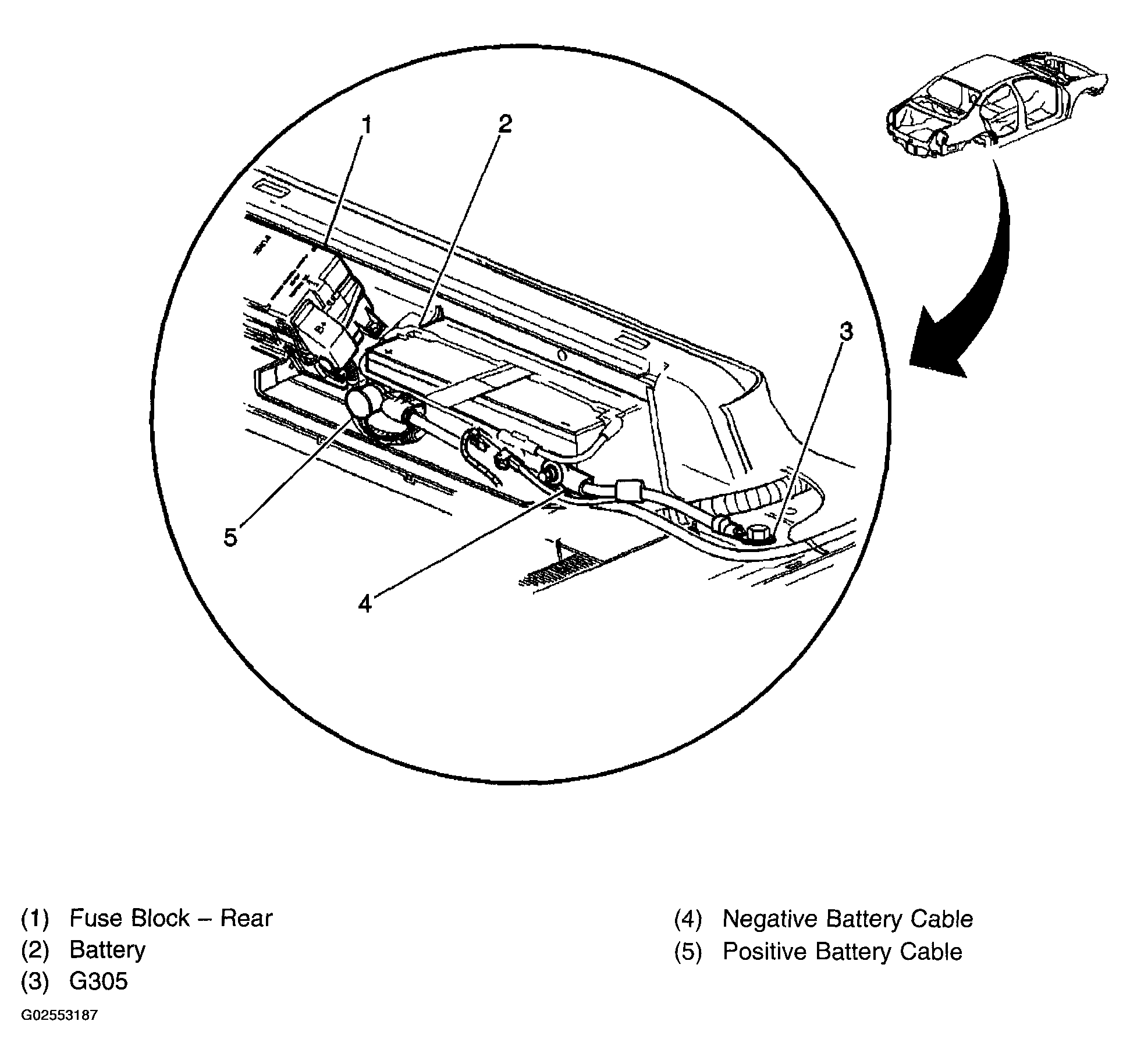

Fig 1: Battery
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
