Connector Identification

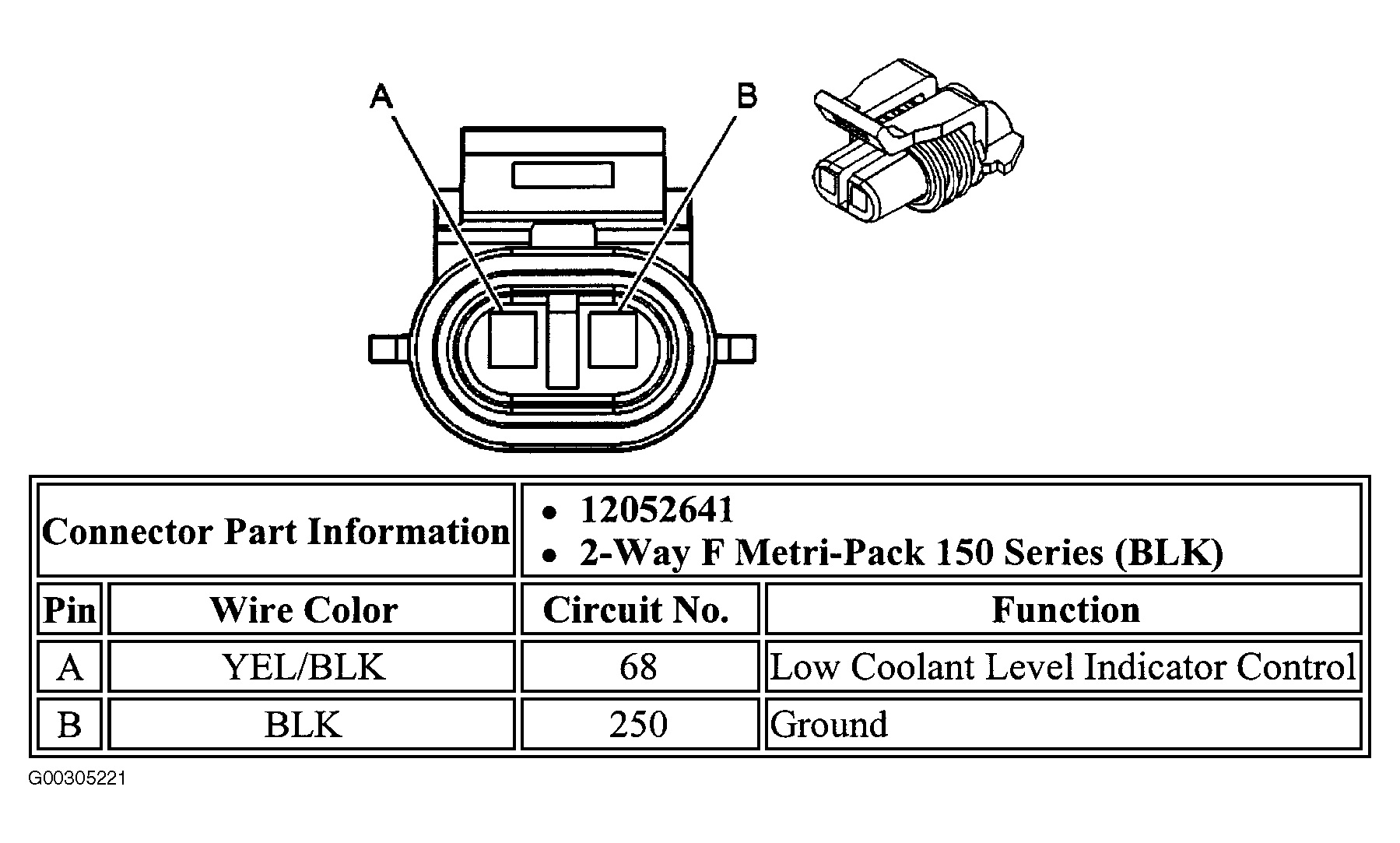

Fig 1: Identifying Coolant Level Switch Connector
G00305221Courtesy of GENERAL MOTORS CORP.

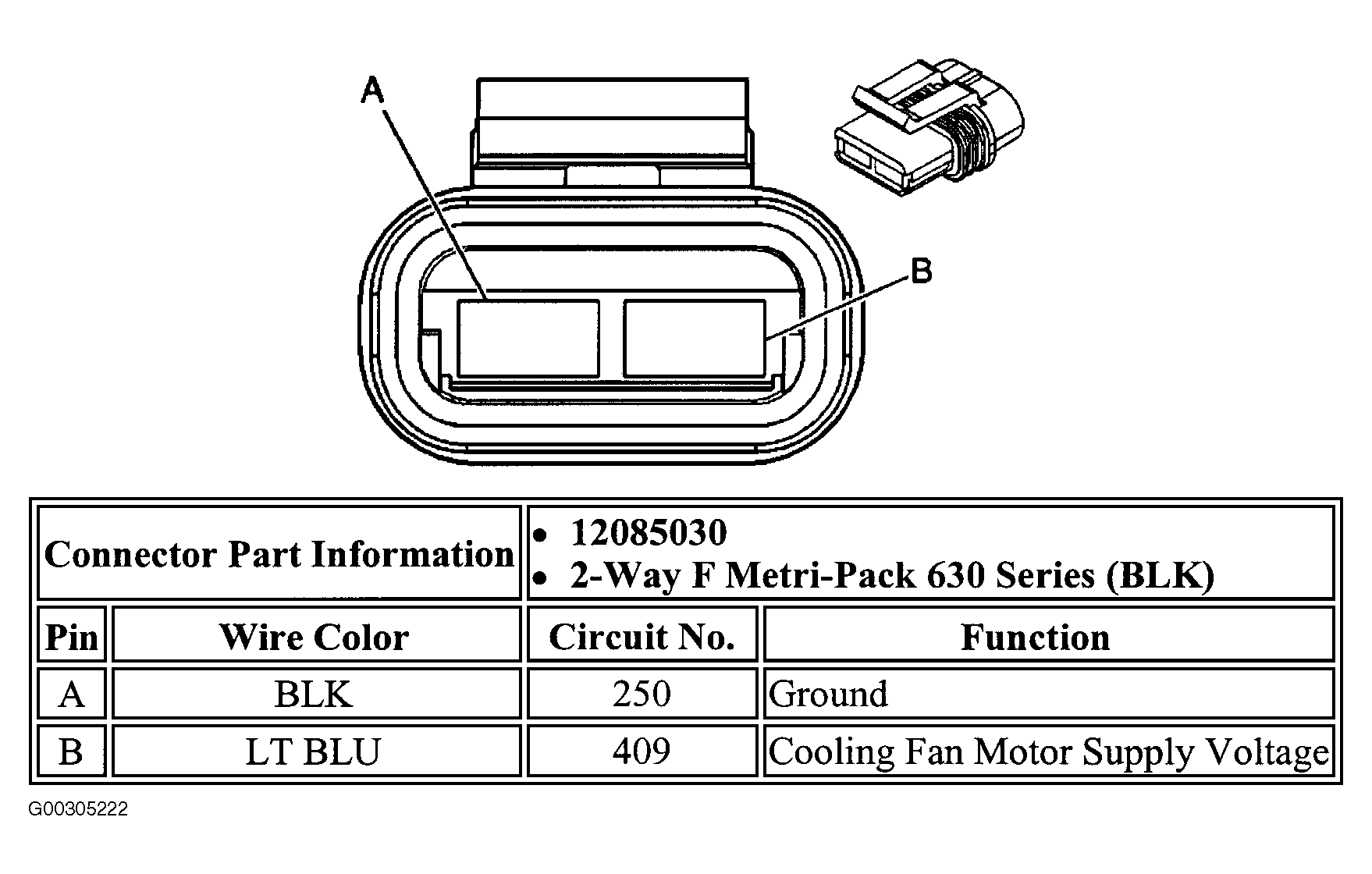

Fig 2: Identifying Cooling Fan Connector (Left)
G00305222Courtesy of GENERAL MOTORS CORP.

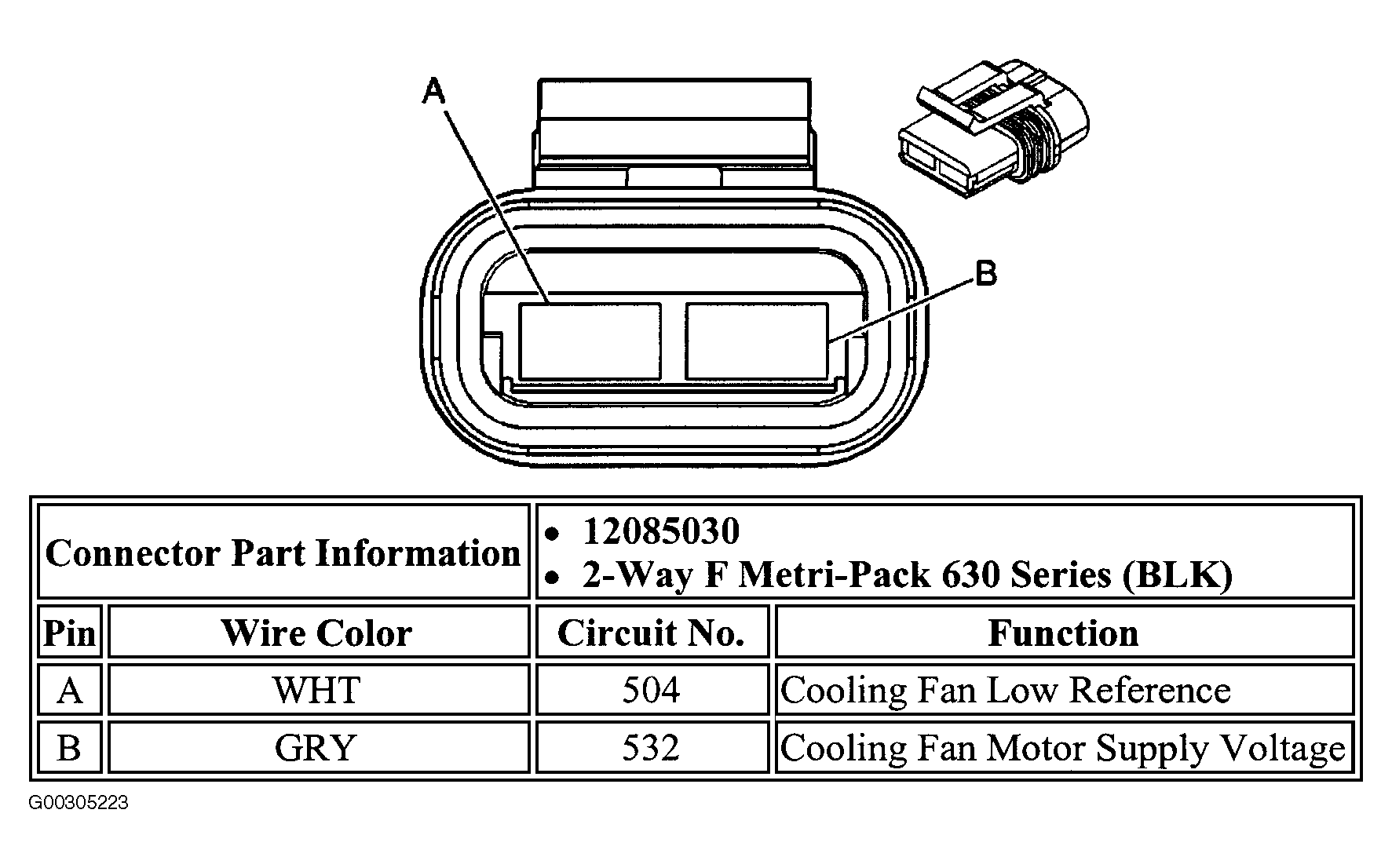

Fig 3: Identifying Cooling Fan Connector (Right)
G00305223Courtesy of GENERAL MOTORS CORP.
