Diagnostic Procedures

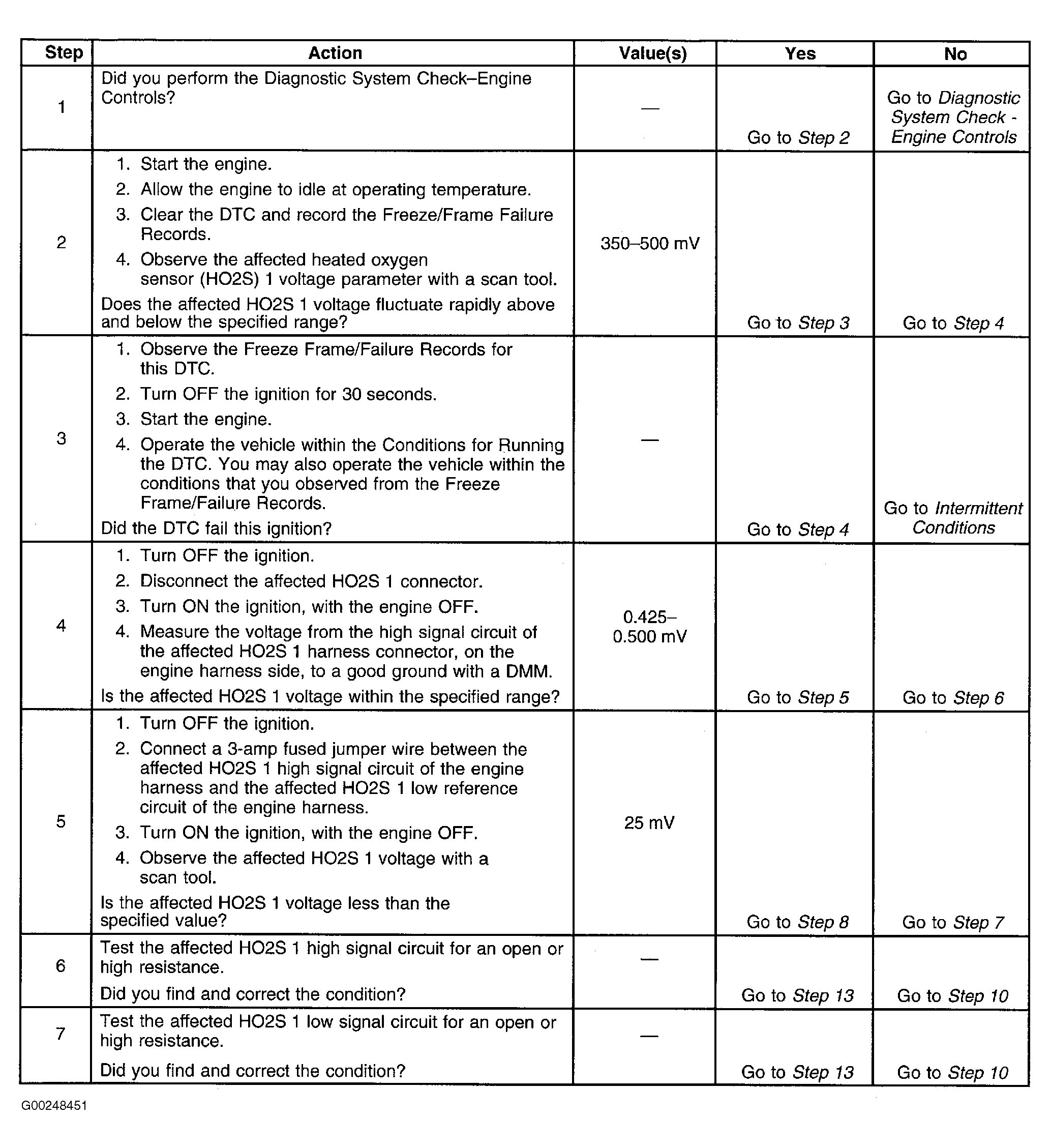

Fig 1: DTC P0130: HO2S Bank 1 Sensor 1 Circuit & DTC P0150: HO2S Bank 2 Sensor 1 Circuit (Steps 1-7)
G00248451Courtesy of GENERAL MOTORS CORP.

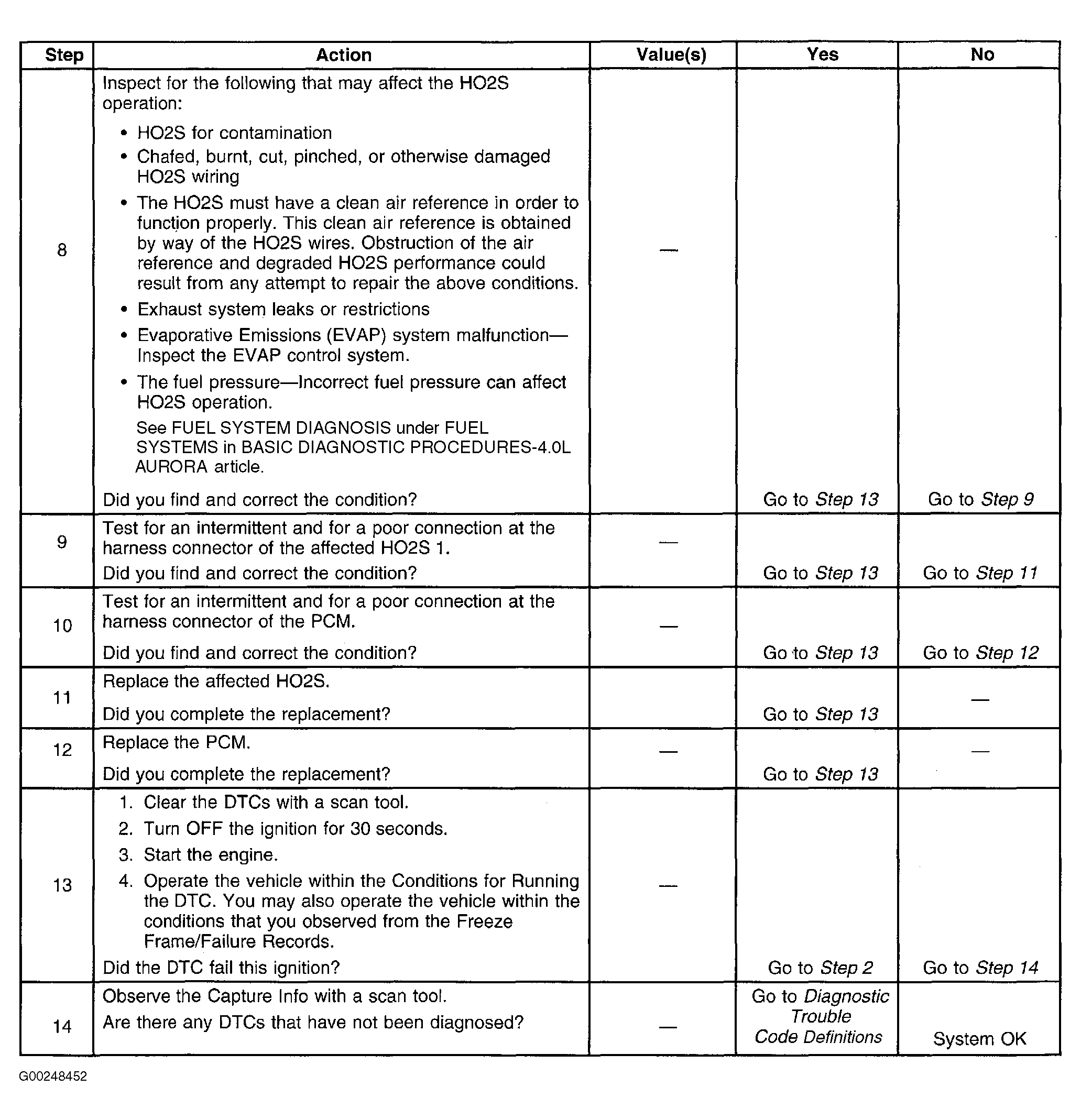

Fig 2: DTC P0130: HO2S Bank 1 Sensor 1 Circuit & DTC P0150: HO2S Bank 2 Sensor 1 Circuit (Steps 8-14)
G00248452Courtesy of GENERAL MOTORS CORP.
