Diagnostic Procedures

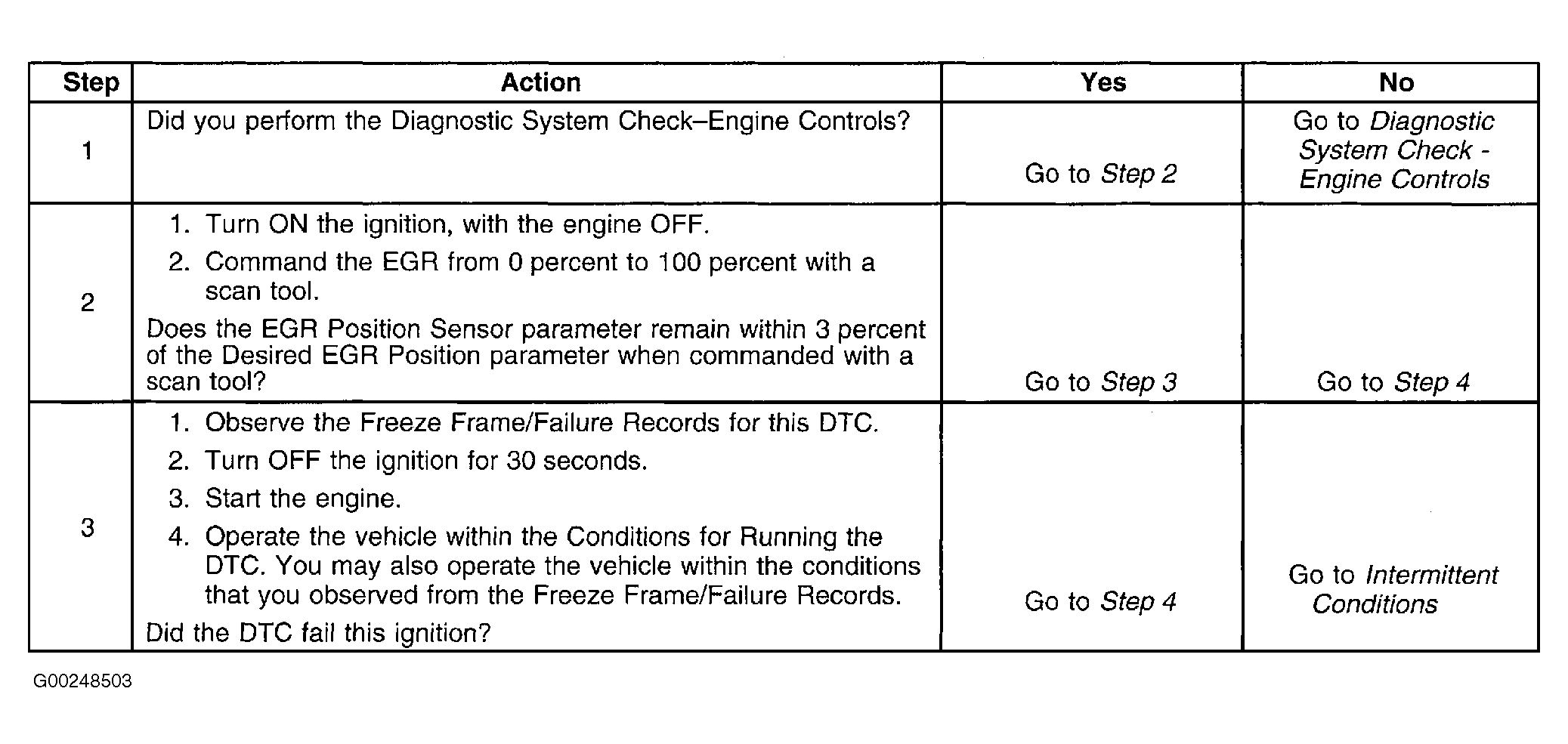

Fig 1: DTC P0403: EGR Solenoid Control Circuit (Steps 1-3)
G00248503Courtesy of GENERAL MOTORS CORP.

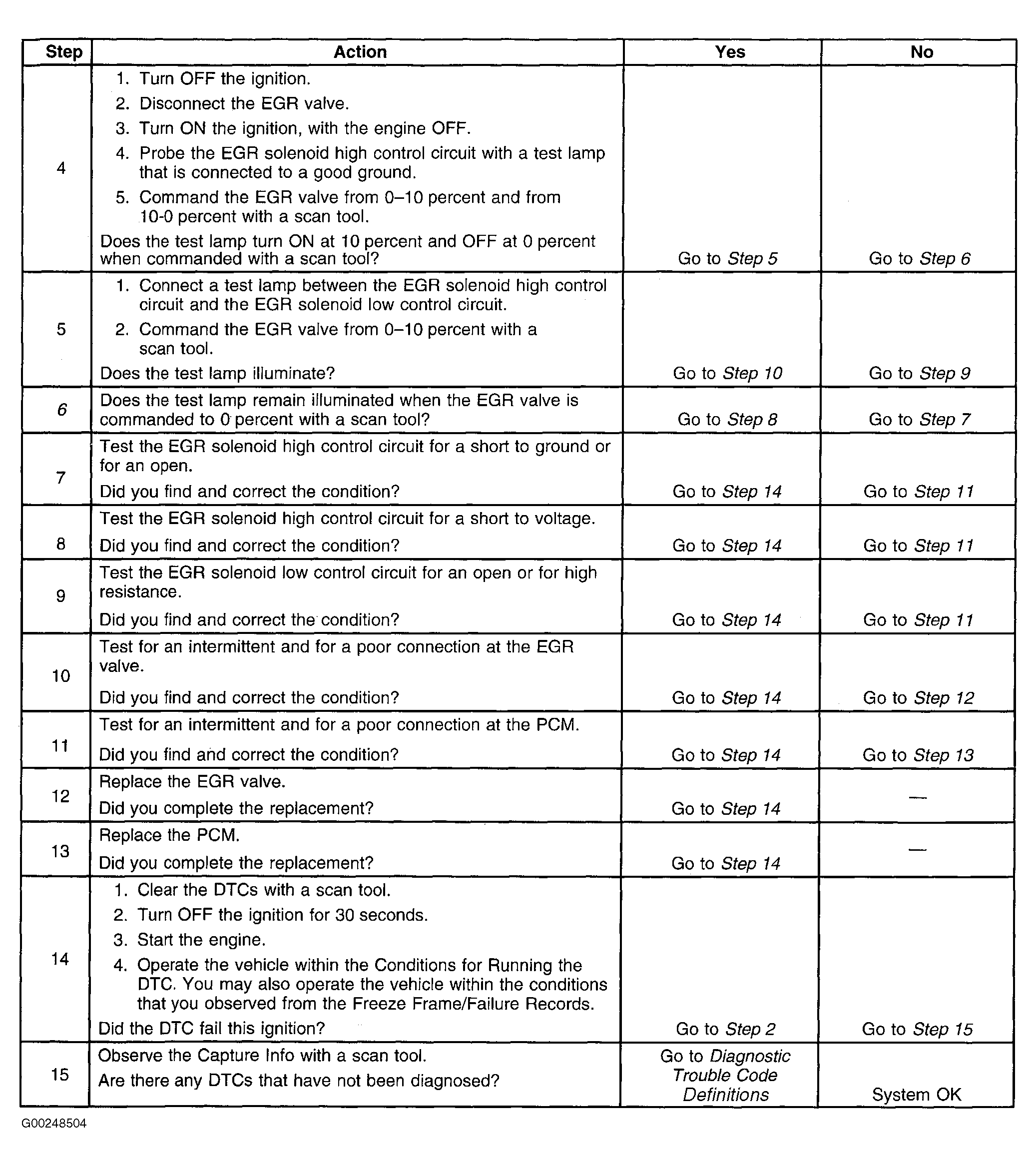

Fig 2: DTC P0403: EGR Solenoid Control Circuit (Steps 4-15)
G00248504Courtesy of GENERAL MOTORS CORP.
