Diagnostic Procedures

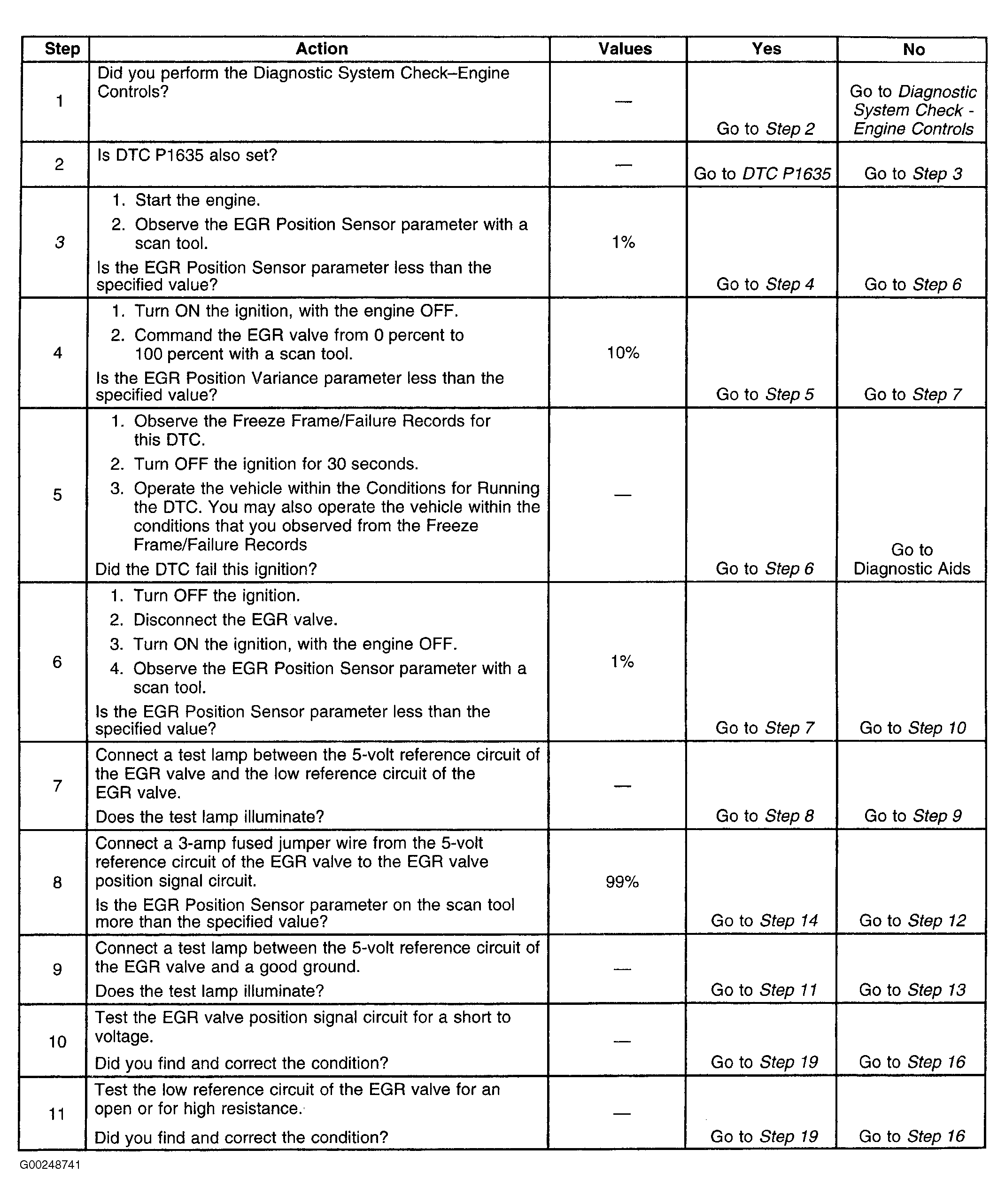

Fig 1: DTC P1404: EGR System Performance (Steps 1-11)
G00248741Courtesy of GENERAL MOTORS CORP.

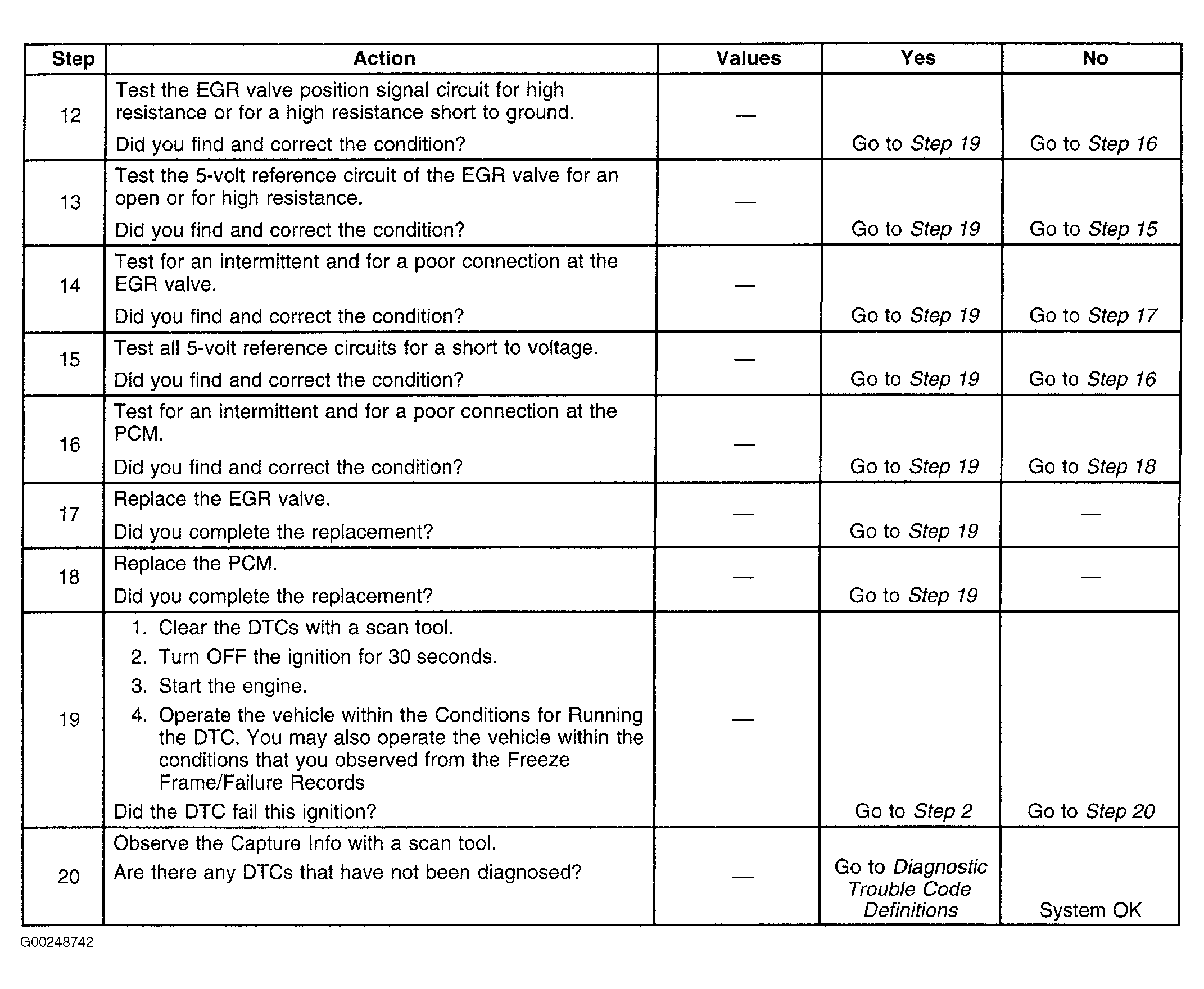

Fig 2: DTC P1404: EGR System Performance (Steps 12-20)
G00248742Courtesy of GENERAL MOTORS CORP.
