Harness Routing Views: Notes

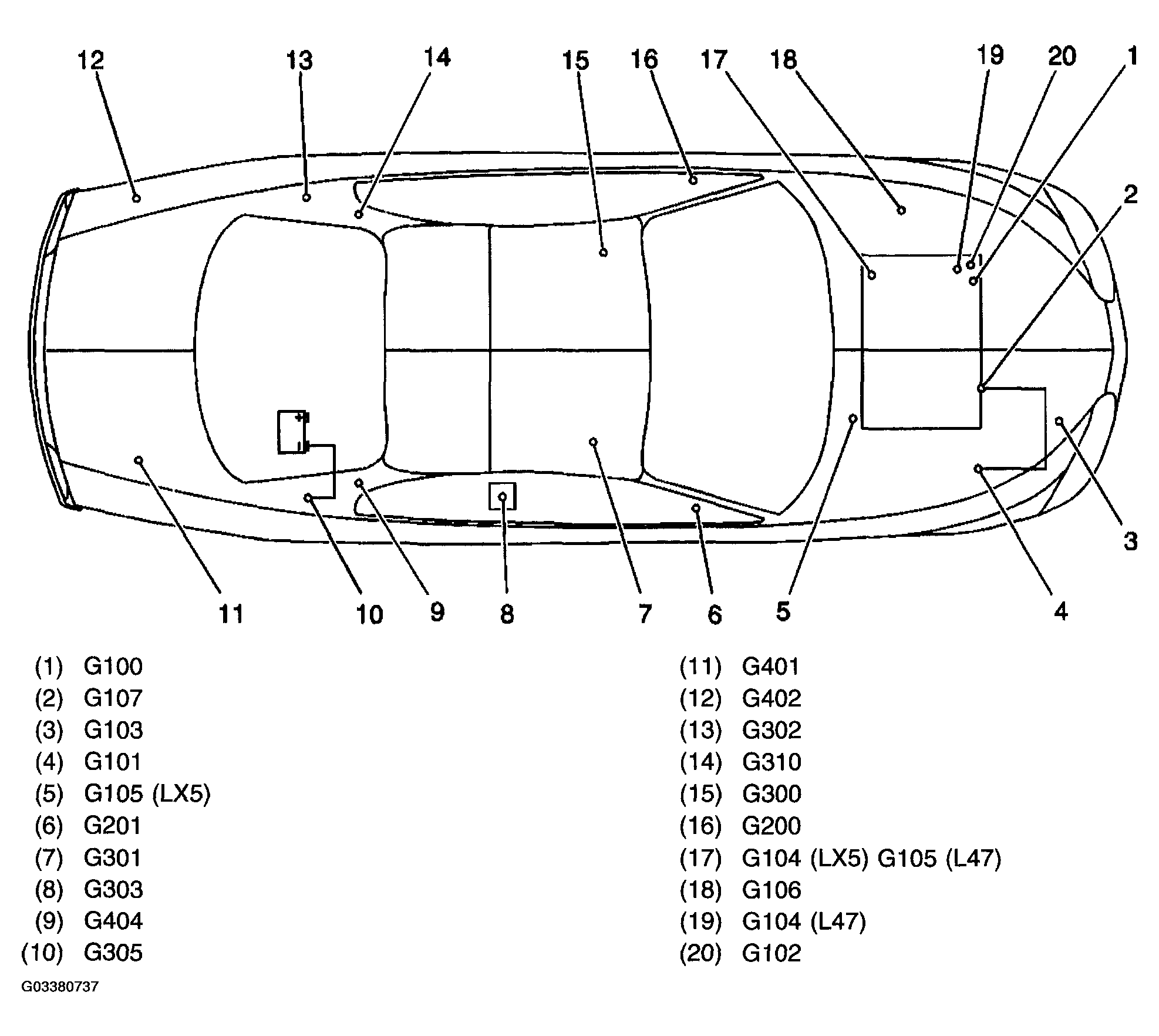

Fig 1: Harness Routing Views (Ground Locations)

G03380737

Courtesy of GENERAL MOTORS CORP.
