Seat Belt Connector End Views

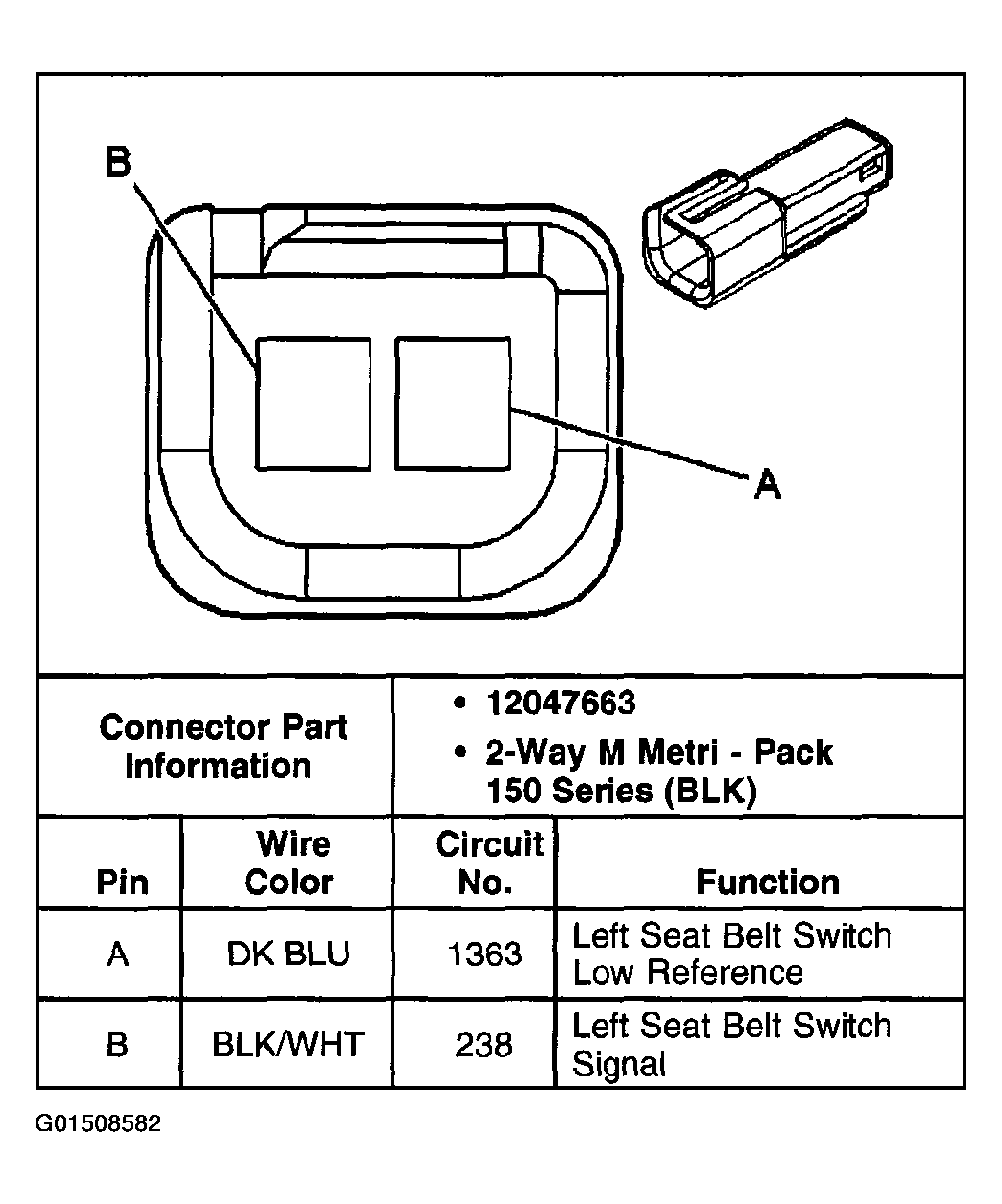

Fig 1: Seat Belt Switch Connector Terminal End View (Left Front)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
