Power Steering Pump Disassembled View

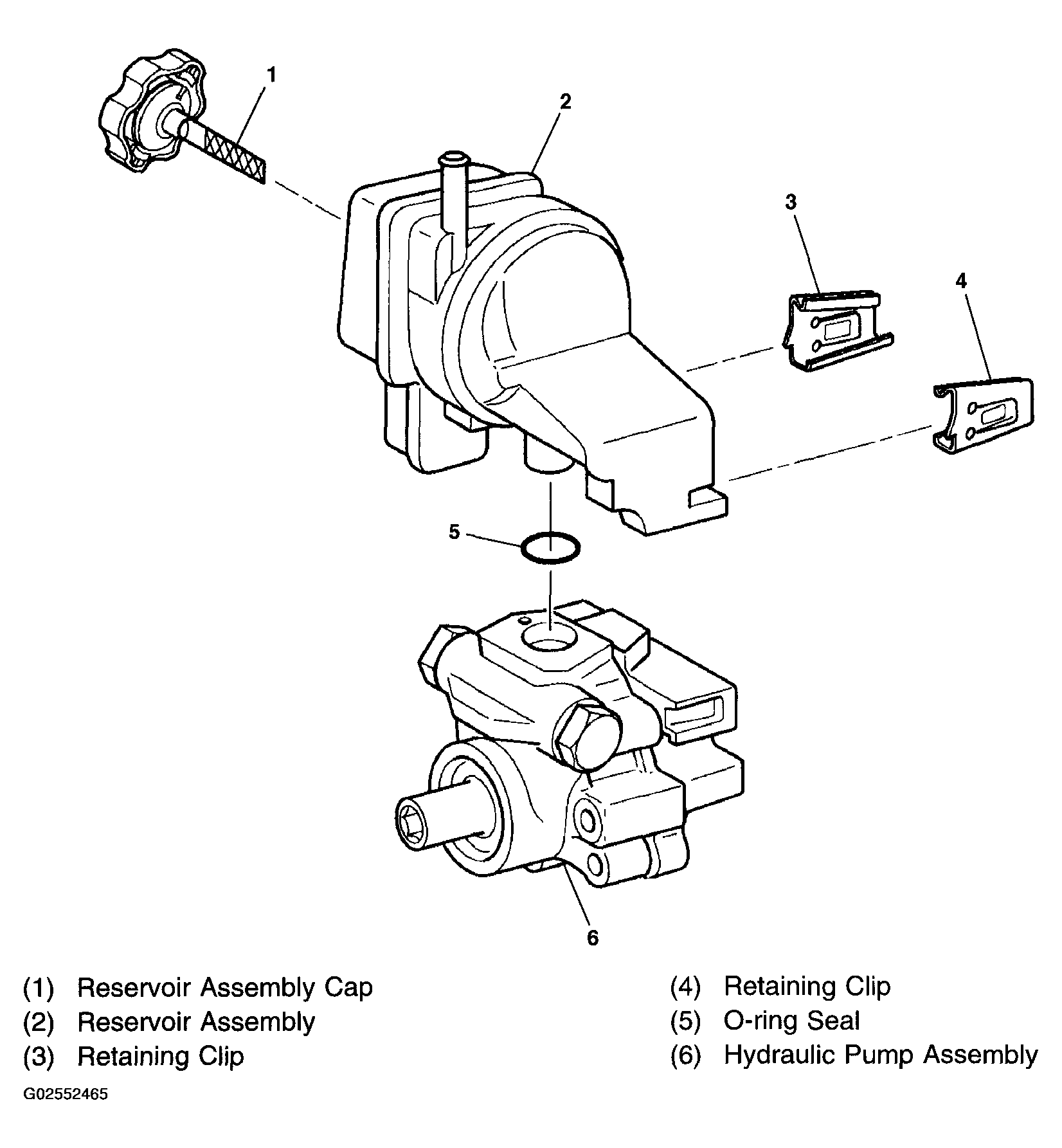

Fig 1: Disassembled View Of Power Steering Pump Components
G02552465Courtesy of GENERAL MOTORS CORP.
