Engine Block - Right Side View

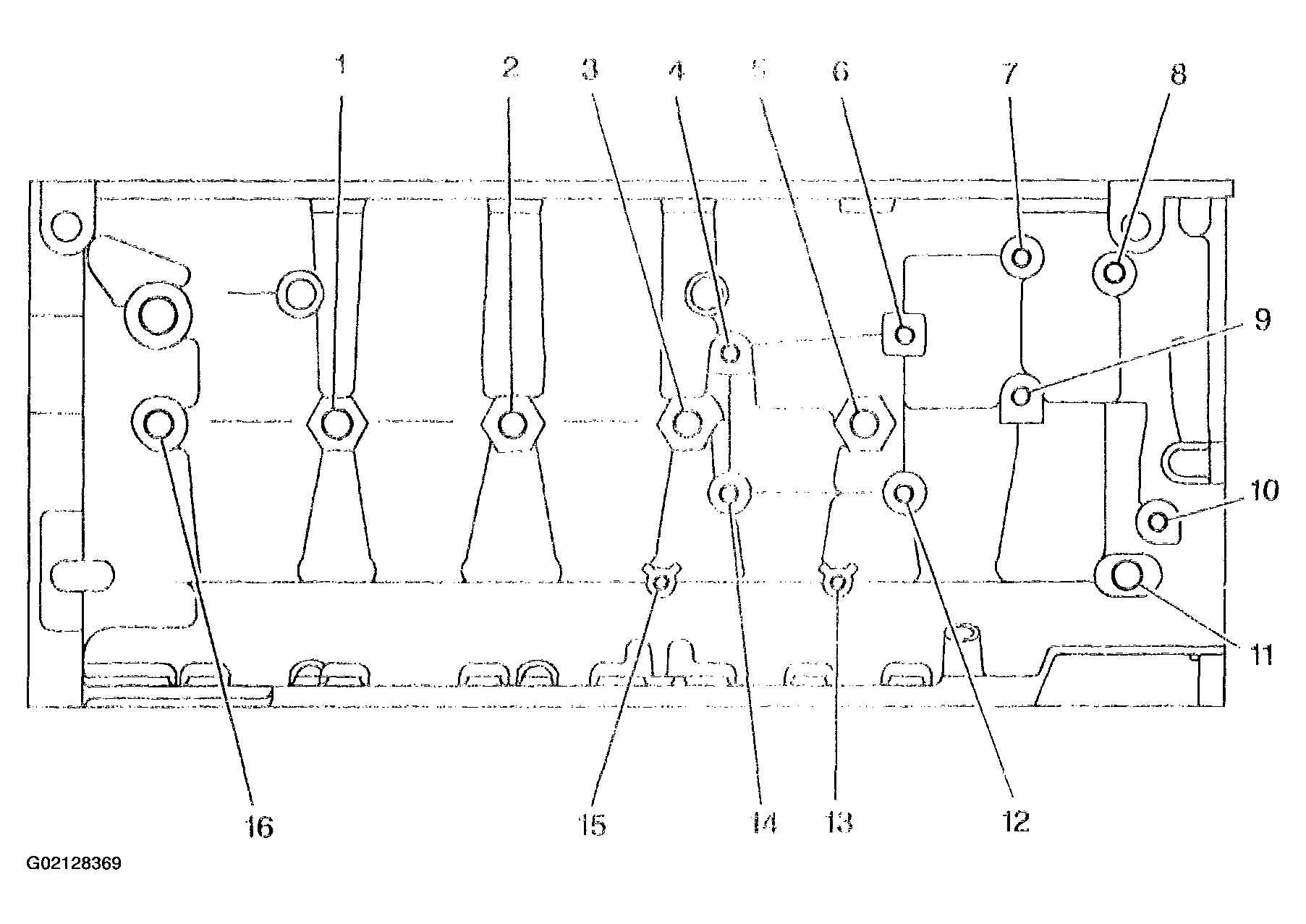

Fig 1: Thread Repair Specifications - Engine Block - Right Side View
G02128369Courtesy of GENERAL MOTORS CORP.

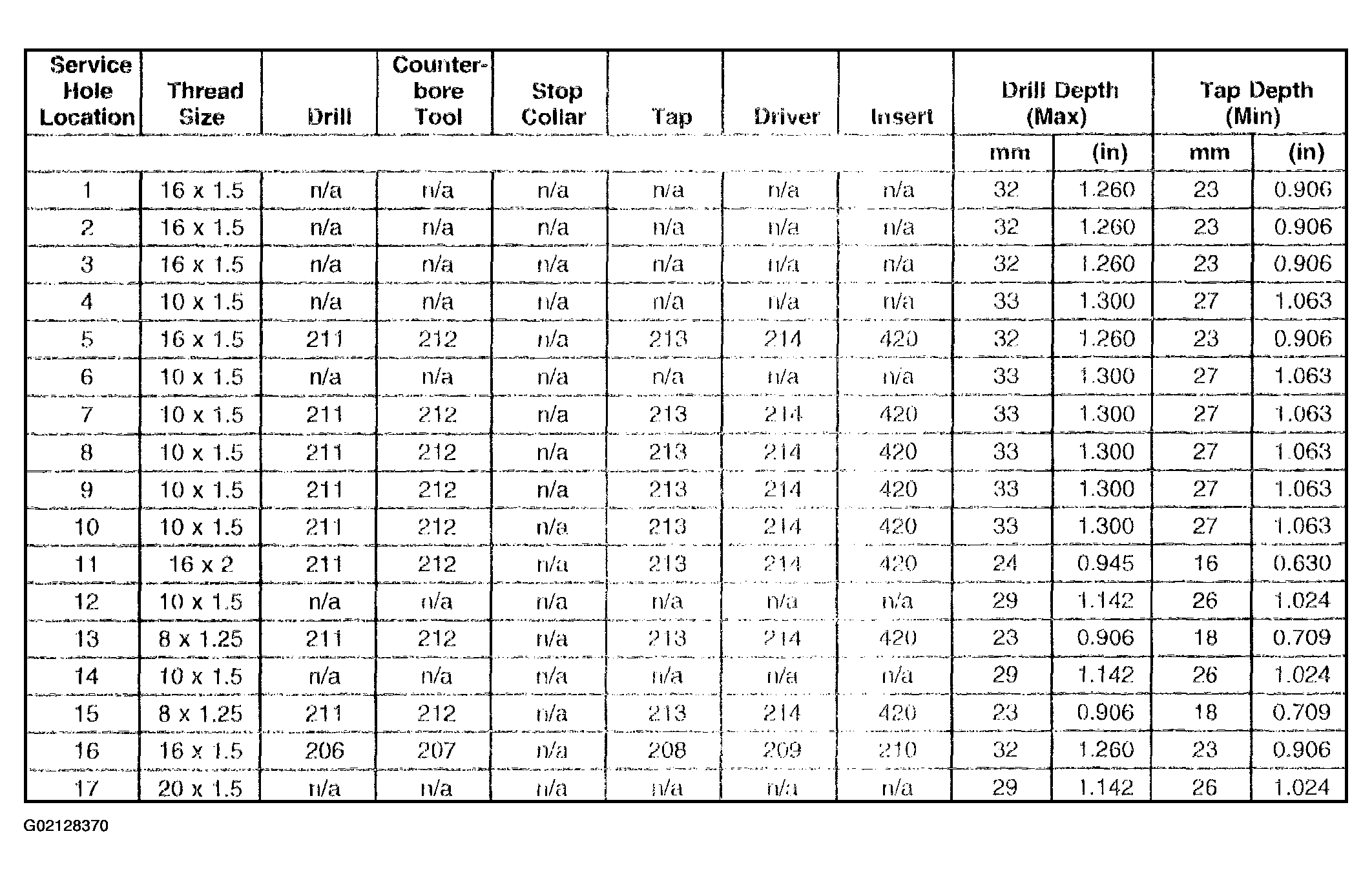

Fig 2: Thread Repair Specifications - Engine Block - Right Side View Callouts
G02128370Courtesy of GENERAL MOTORS CORP.
