Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   .
  2. Remove the outside rear view mirror (ORVM) harness from the door.
  3. Remove the side door insulator.

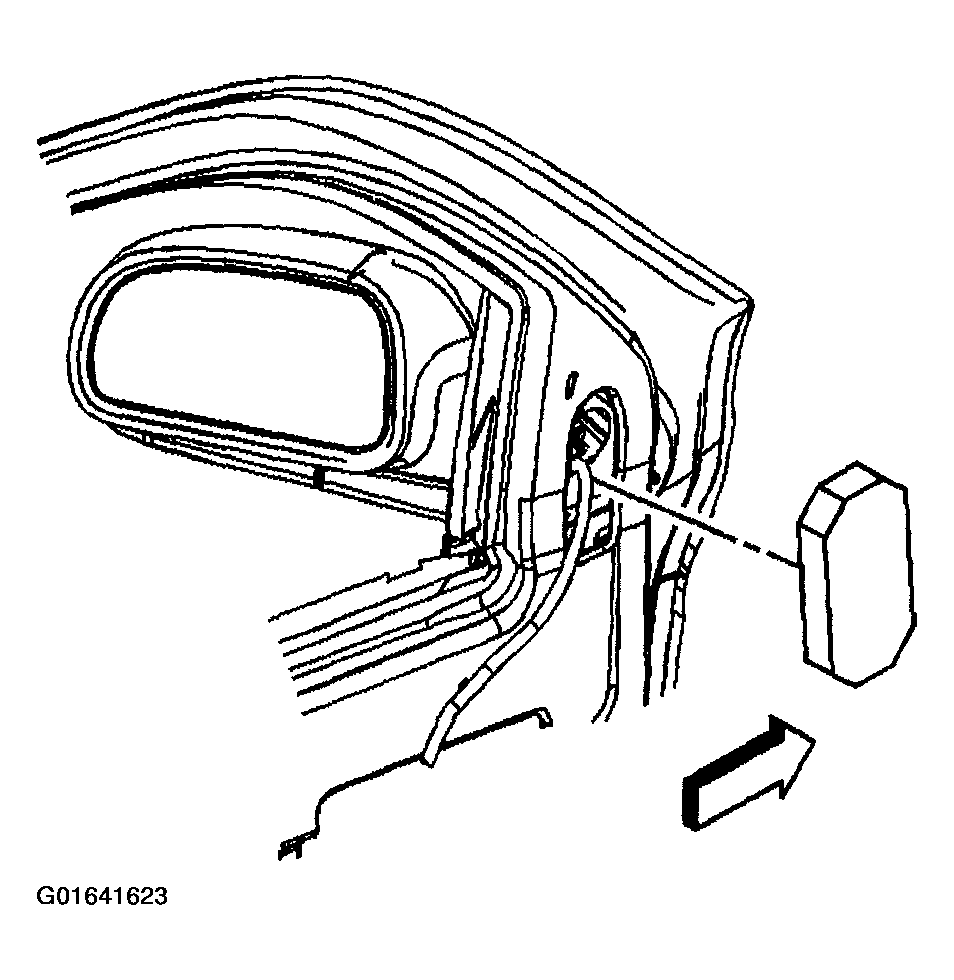

    4. Fig 1: Removing Side Door Insulator
    G01641623Courtesy of GENERAL MOTORS CORP.
  4. Remove the 3 ORVM retaining bolts.
  5. Release the clip that retains the ORVM to the door.
  6. Remove the ORVM assembly from the door.

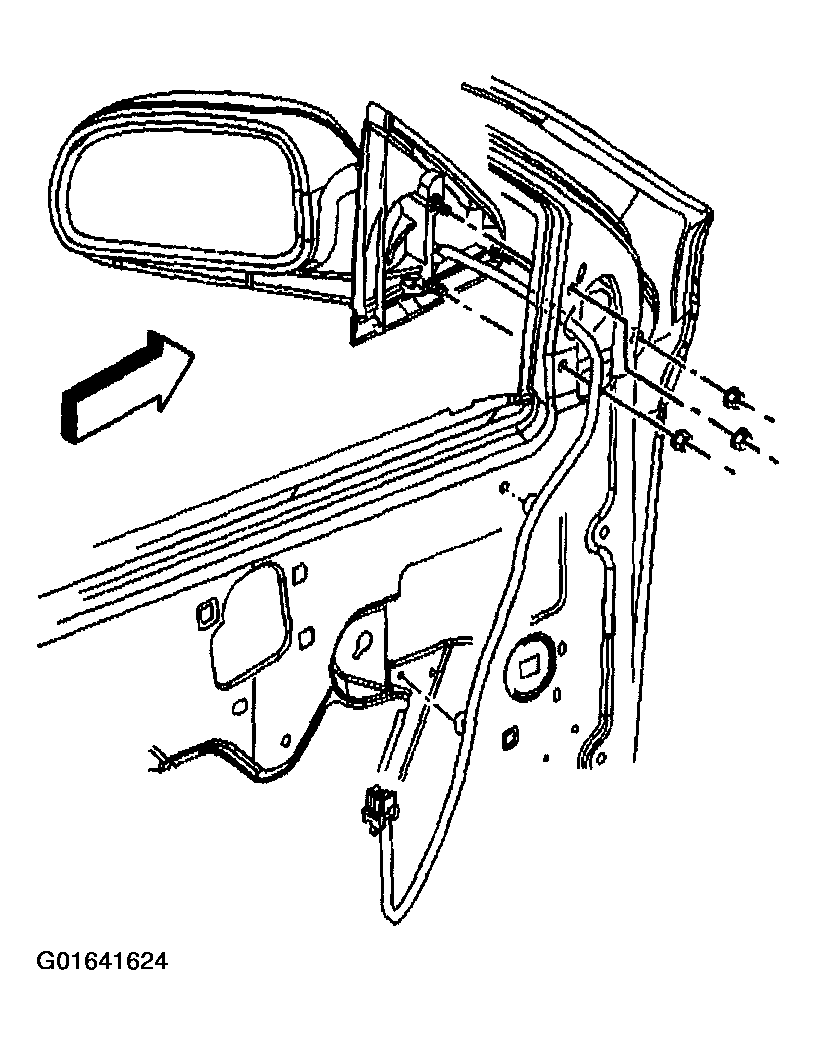

    7. Fig 2: Releasing Clip Retaining ORVM To Door
    G01641624Courtesy of GENERAL MOTORS CORP.
