Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   .
  2. Remove the speaker. Refer to SPEAKER REPLACEMENT - FRONT DOOR  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR   .
  4. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR   .
  5. Remove the 2 bolts that retain the weatherstrip/run channel to the door.
  6. Pull the weatherstrip/run channel away from the window frame opening.
  7. Carefully twist and pull up on the weatherstrip/run channel, in order remove the weatherstrip/run channel from the top of the door frame.
  8. Remove the weatherstrip/run channel from the door.

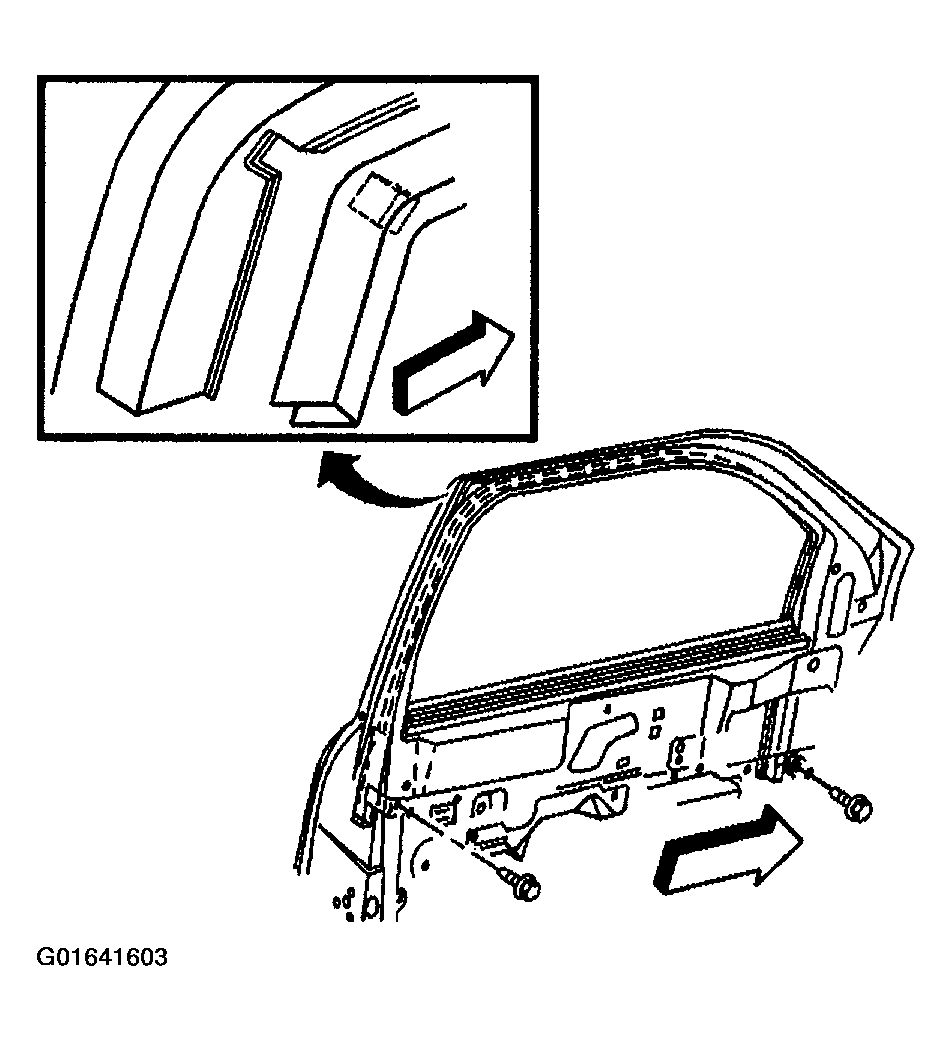

    9. Fig 1: Removing Weatherstrip/Run Channel From Front Door
    G01641603Courtesy of GENERAL MOTORS CORP.
