Installation Procedure

  1. Position the sensor to the panel assembly.
  2. Connect the electrical connector to the sensor (1).

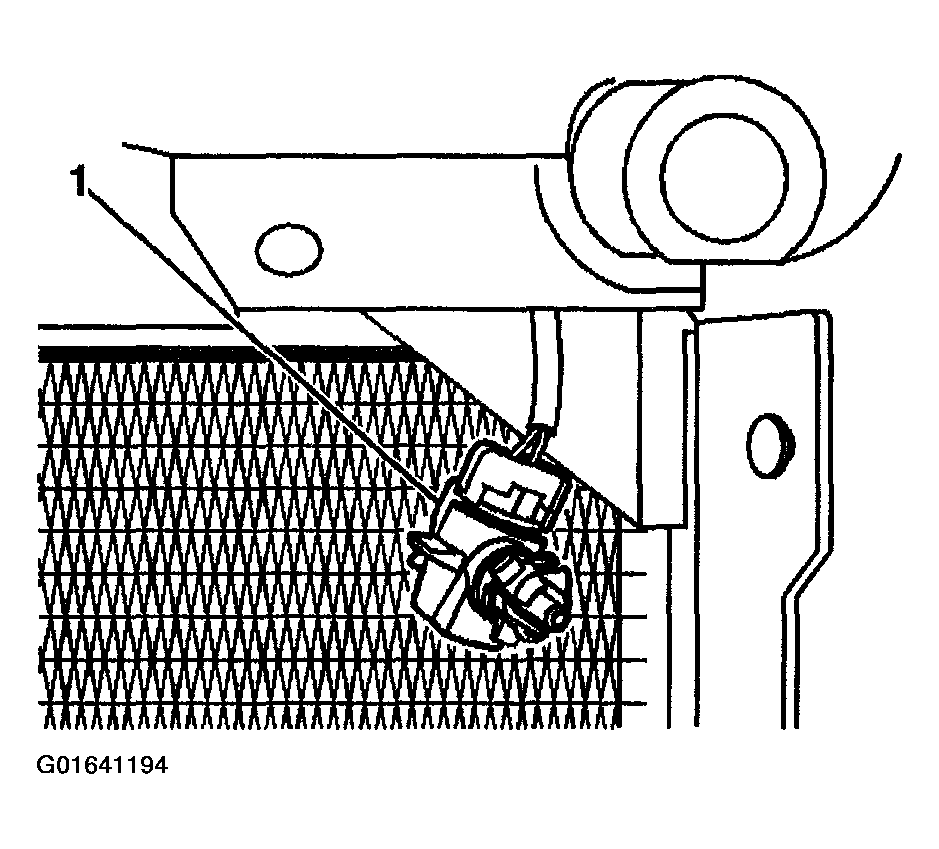

    Fig 1: Connecting Electrical Connector To Sensor
    G01641194Courtesy of GENERAL MOTORS CORP.
  3. Install the sensor (1) to the panel assembly (2).
  4. Install the front grille. Refer to GRILLE REPLACEMENT (GMC)  or GRILLE REPLACEMENT (OLDSMOBILE)  or GRILLE REPLACEMENT (CHEVROLET)  in Exterior Trim.

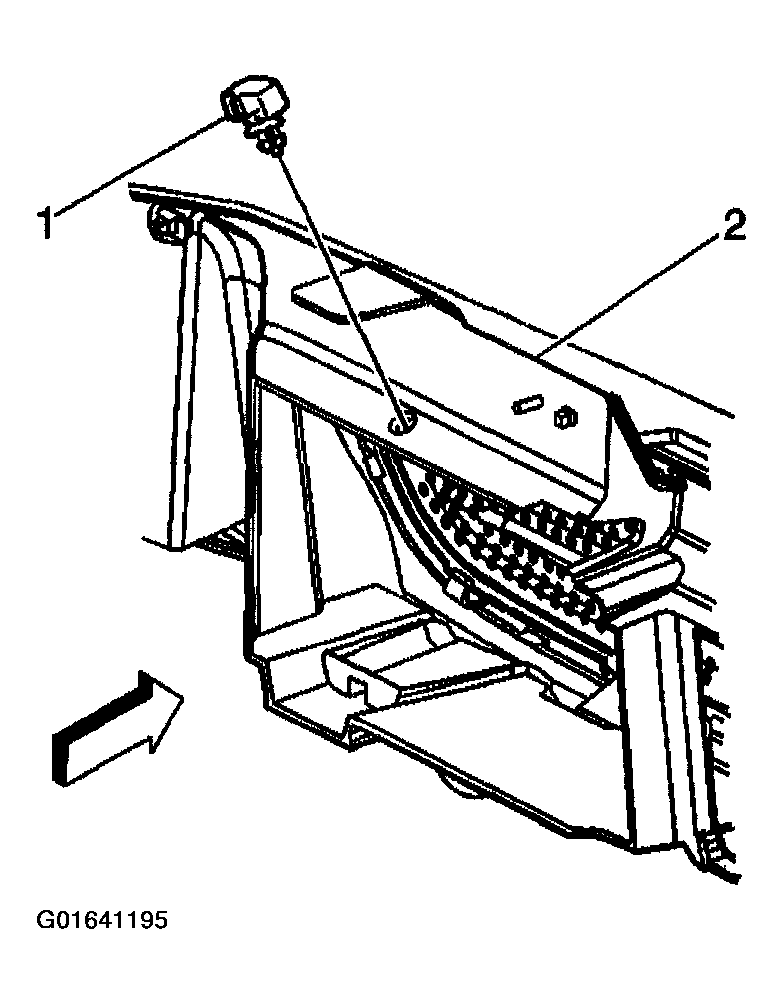

    Fig 2: Installing Sensor To Panel Assembly
    G01641195Courtesy of GENERAL MOTORS CORP.
