Installation Procedure

  1. Install a stationary window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF ENCAPSULATED STATIONARY WINDOWS   .
  2. Install the upper quarter trim. Refer to INTERIOR TRIM  in Interior Trim.
  3. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  4. Inspect the radio or the OnStar system, if equipped, to verify reception.
  5. Close the liftgate window.

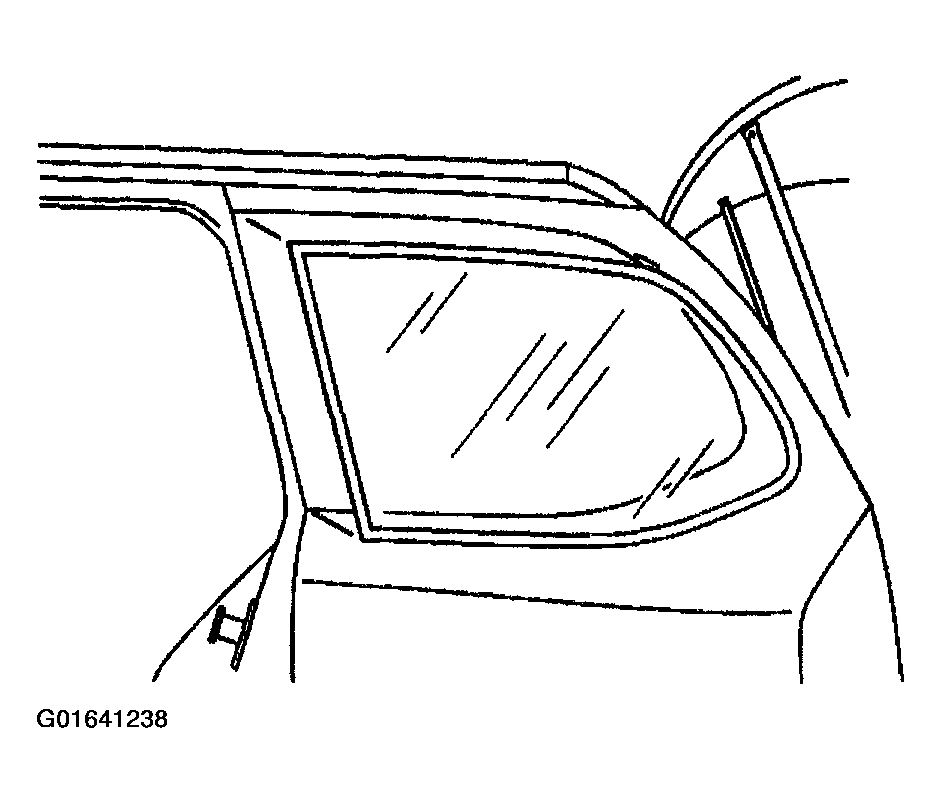

    Fig 1: Installing Stationary Window Into Opening
    G01641238Courtesy of GENERAL MOTORS CORP.
