Installation Procedure

  1. Slide the mirror onto the support.
    Fig 1: Sliding Mirror Onto Support
    G01641218Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice   in Cautions and Notices.
  2. Install the set screw.

    Tighten

    Tighten the set screw to 2 N.m (18 lb in).

  3. Connect the electrical connector (1), if equipped.

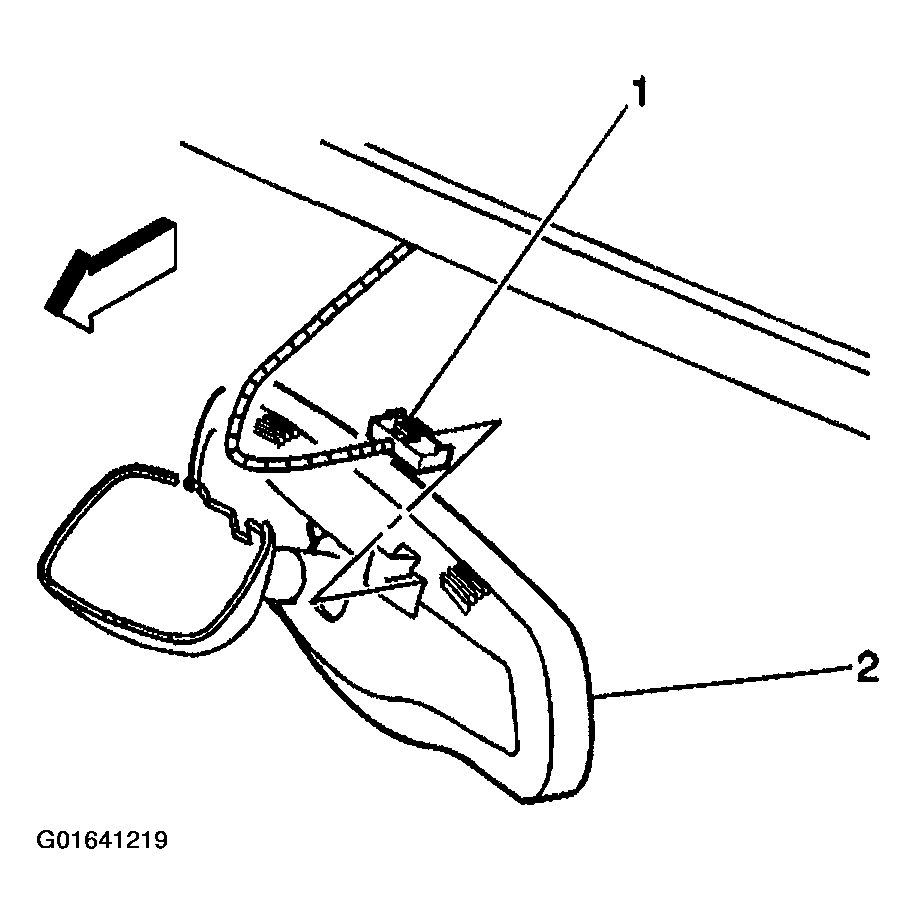

    Fig 2: Connecting Electrical Connector
    G01641219Courtesy of GENERAL MOTORS CORP.
