Installation Procedure

Install the weatherstrip side retainer (2) to the windshield pillar.

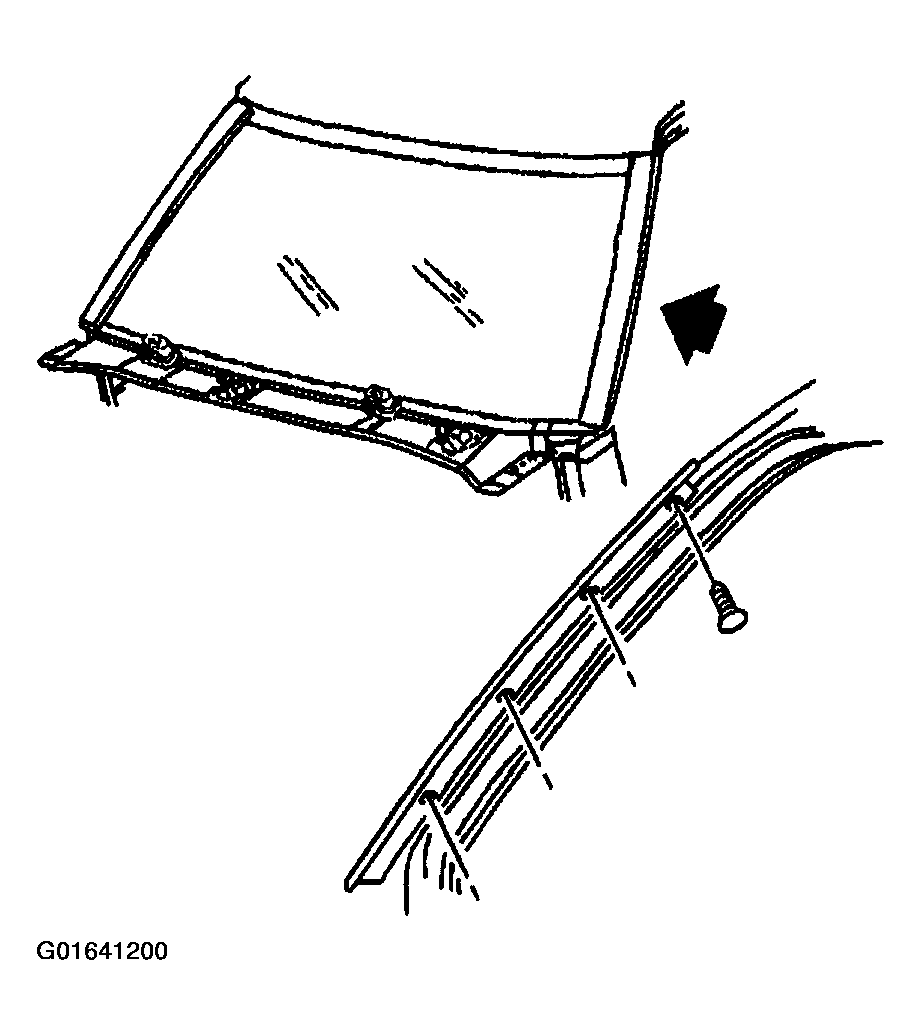

Fig 1: Installing Weatherstrip Side Retainer To Windshield Pillar
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the screws to the weatherstrip side retainer.
Tighten

Tighten the screws to the weatherstrip side retainer to 2 N.m (18 lb in).

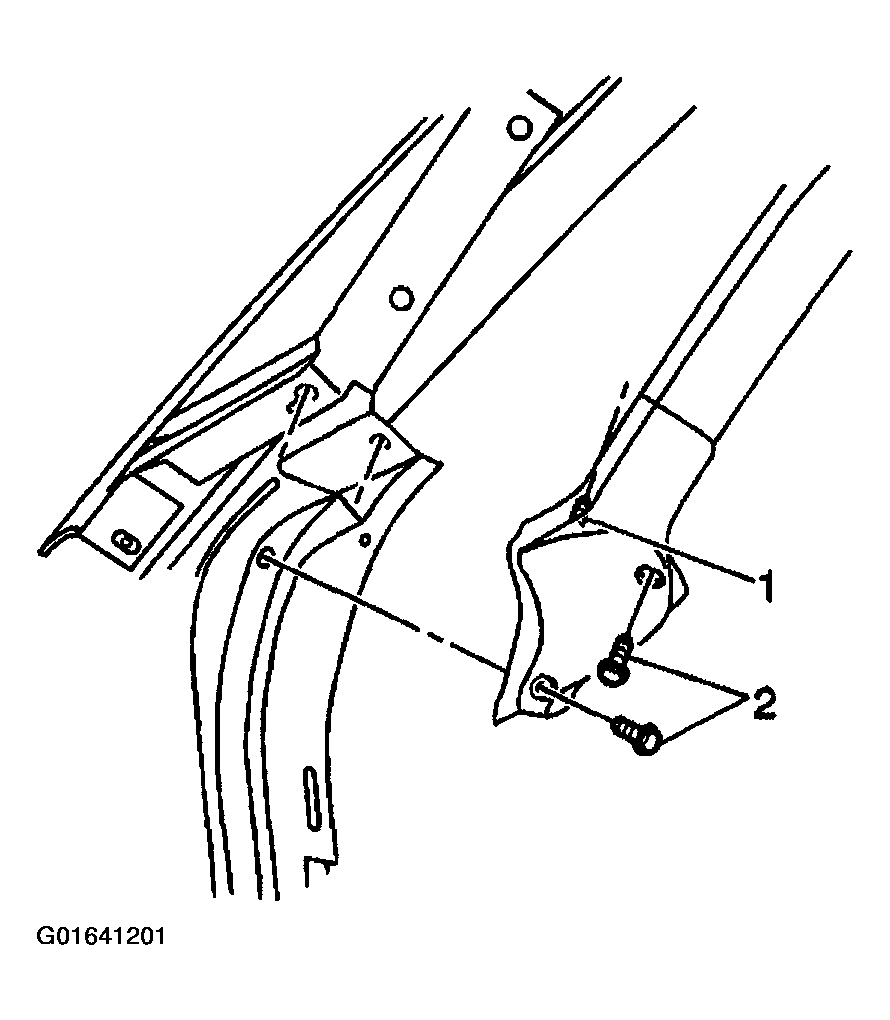

Fig 2: Installing Screws To Weatherstrip Side Retainer
Courtesy of GENERAL MOTORS CORP.
Install the push pin retainers (2) to the front door sealing weatherstrip located at the base of the pillar.
Close the door.

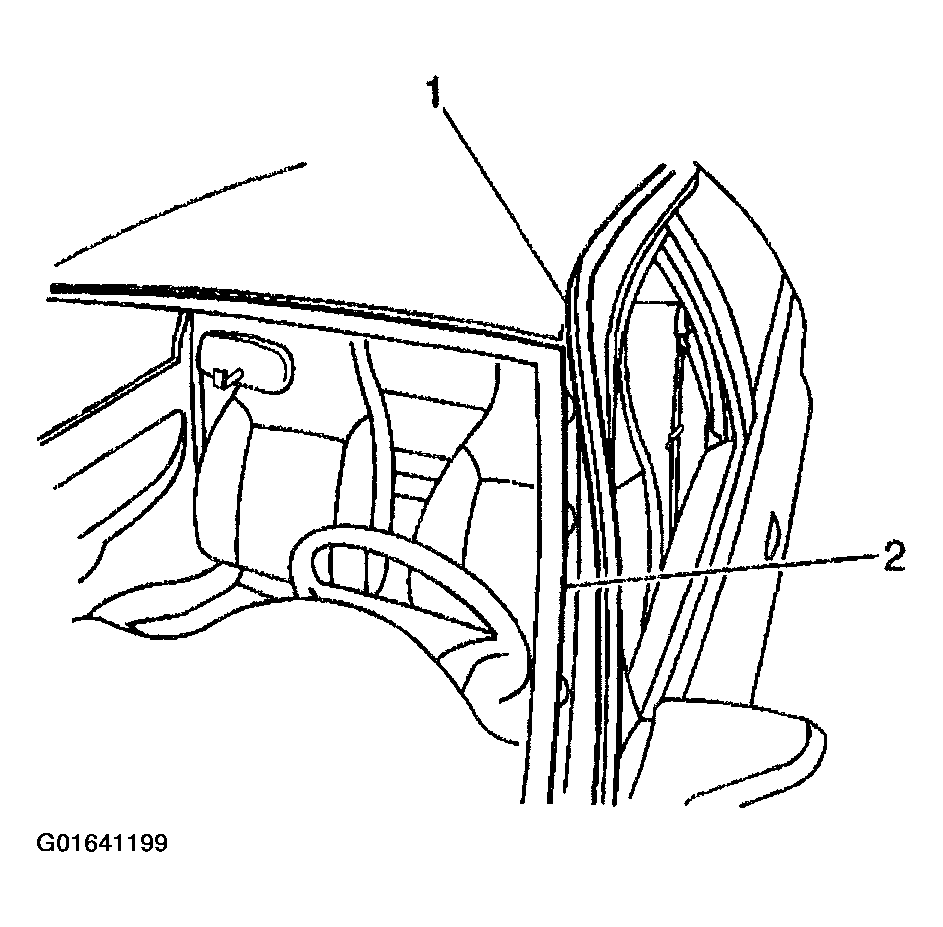

Fig 3: Installing Push Pin Retainers To Front Door Sealing Weatherstrip
Courtesy of GENERAL MOTORS CORP.
