Data Link Connector (DLC) Connector End View

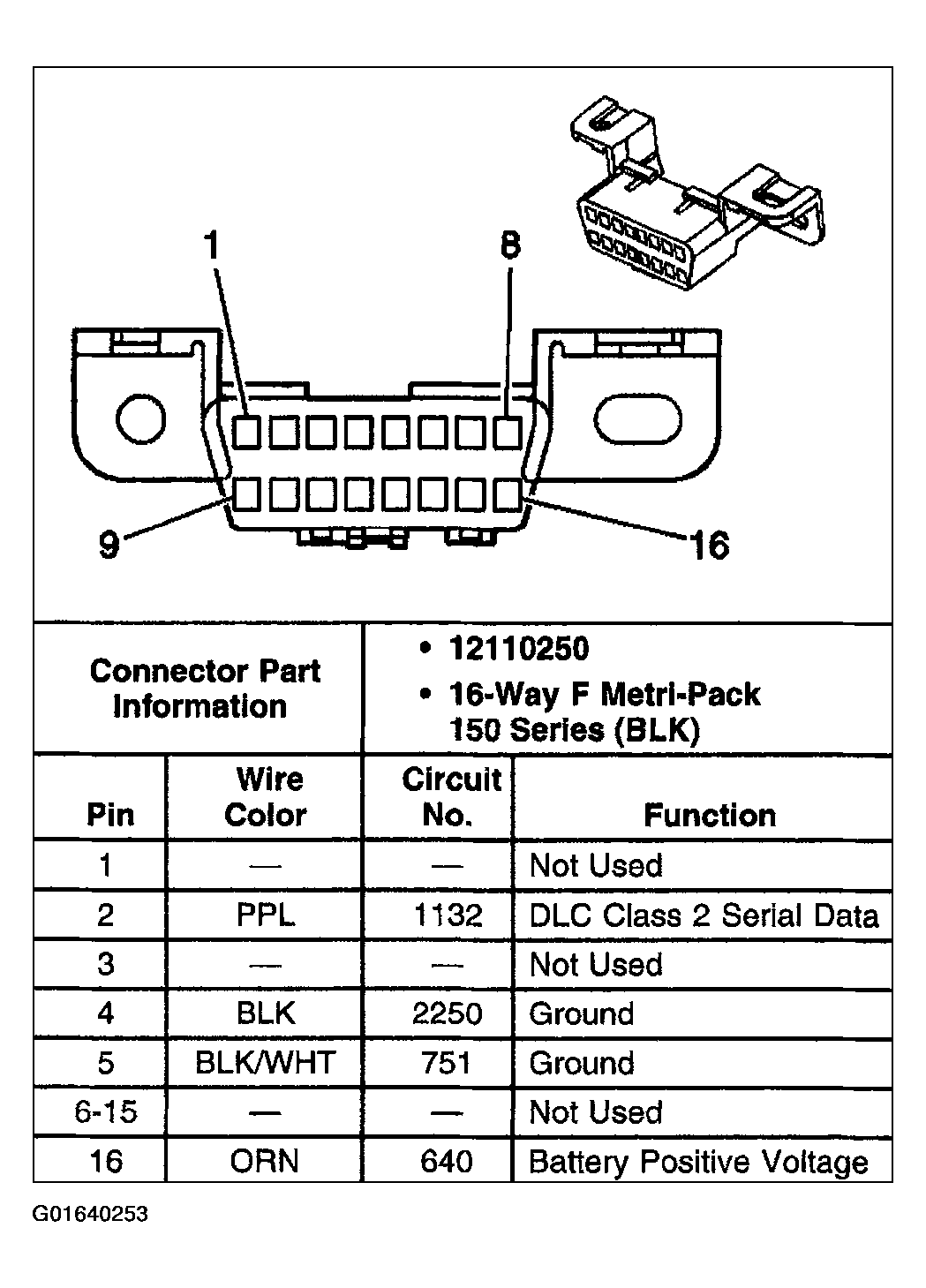

Fig 1: Data Link Connector (DLC) Connector End View
G01640253Courtesy of GENERAL MOTORS CORP.
