Engine Oil Level and Temperature Sensor Connector End View - 4.2L

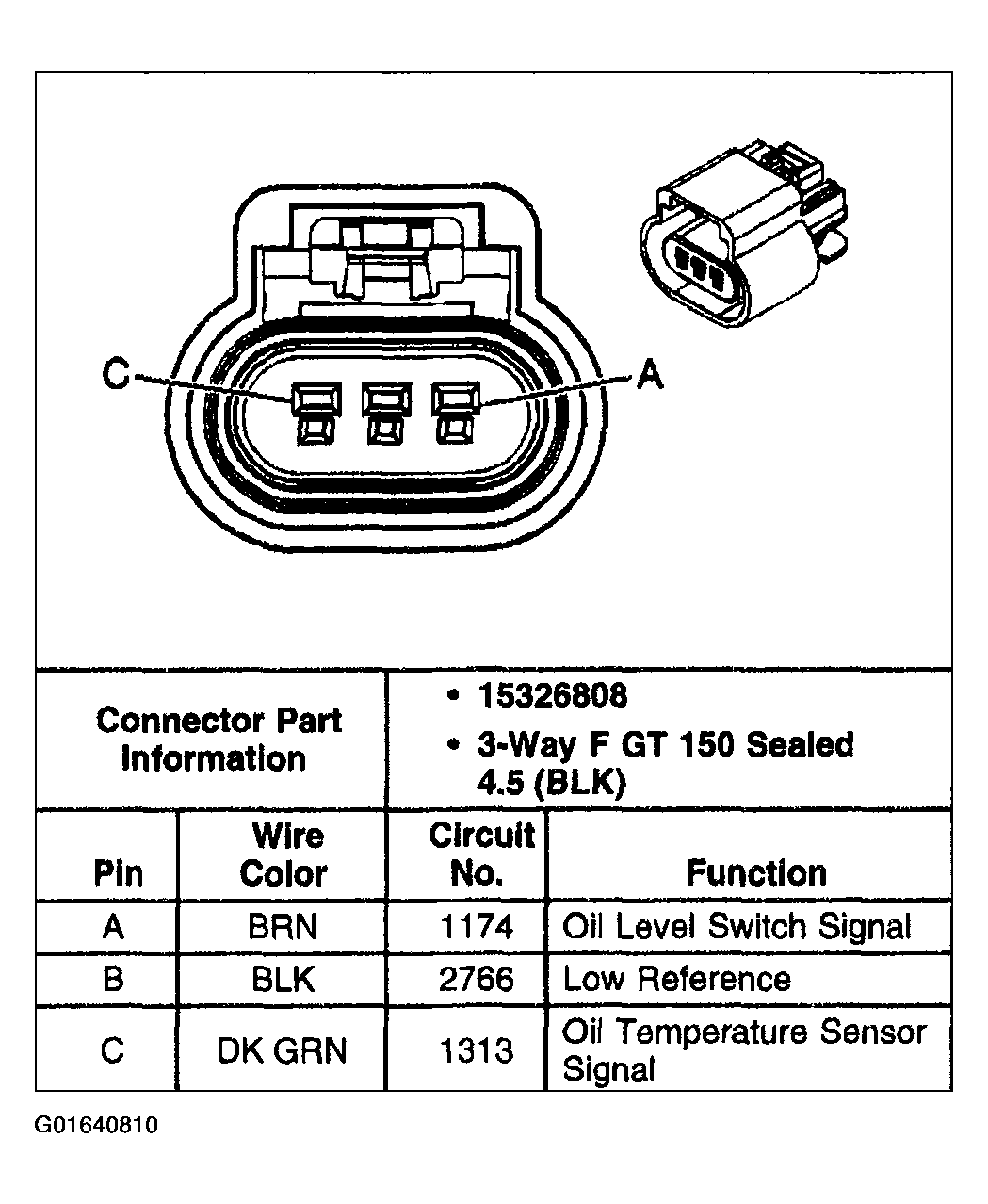

Fig 1: Engine Oil Level and Temperature Sensor Connector End View - 4.2L
G01640810Courtesy of GENERAL MOTORS CORP.
