Front Passenger Window Motor Connector End View

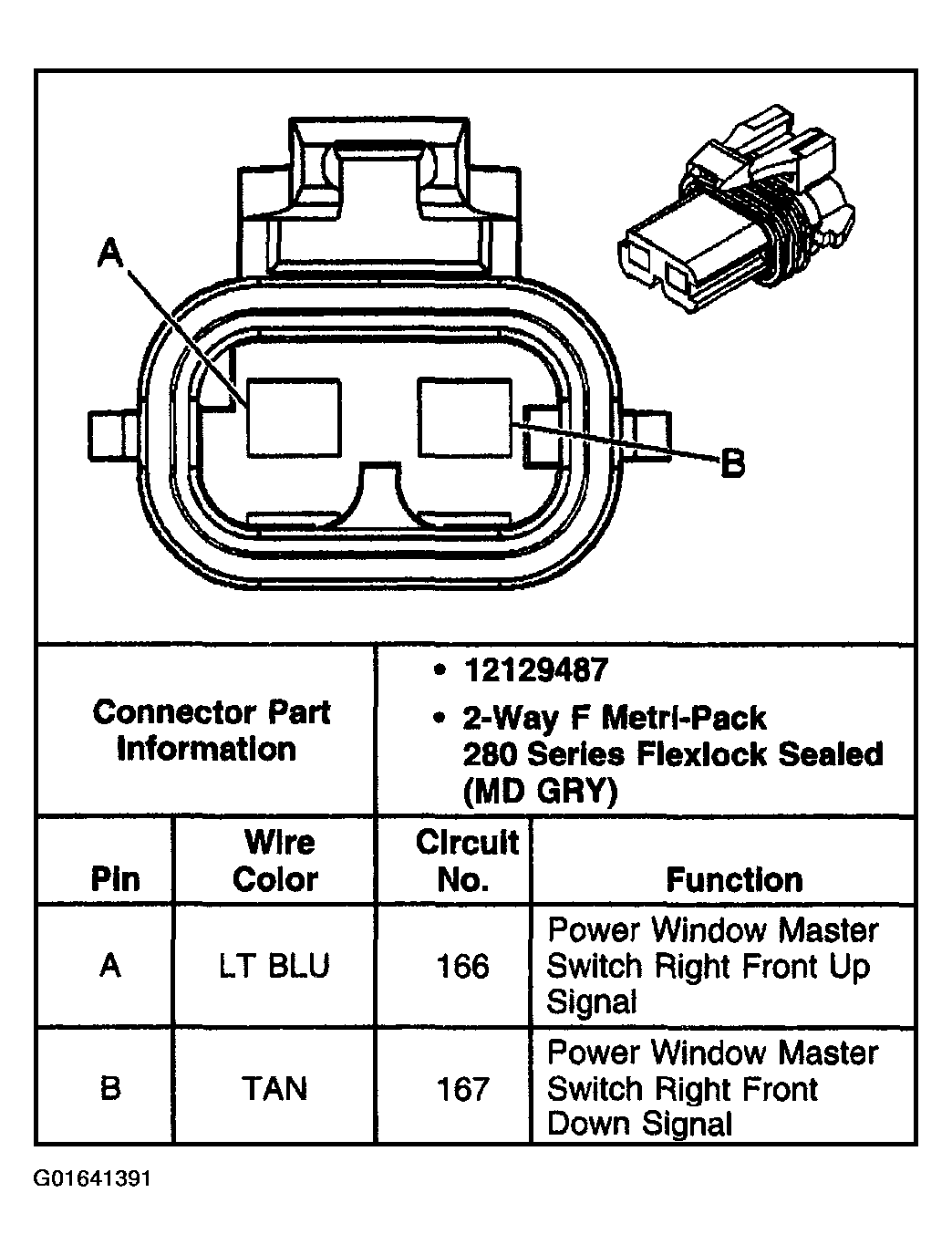

Fig 1: Front Passenger Window Motor Connector End View
G01641391Courtesy of GENERAL MOTORS CORP.
