Windshield Wiper/Washer Switch Connector End View (Turn Signal/Multifunction Switch C3)

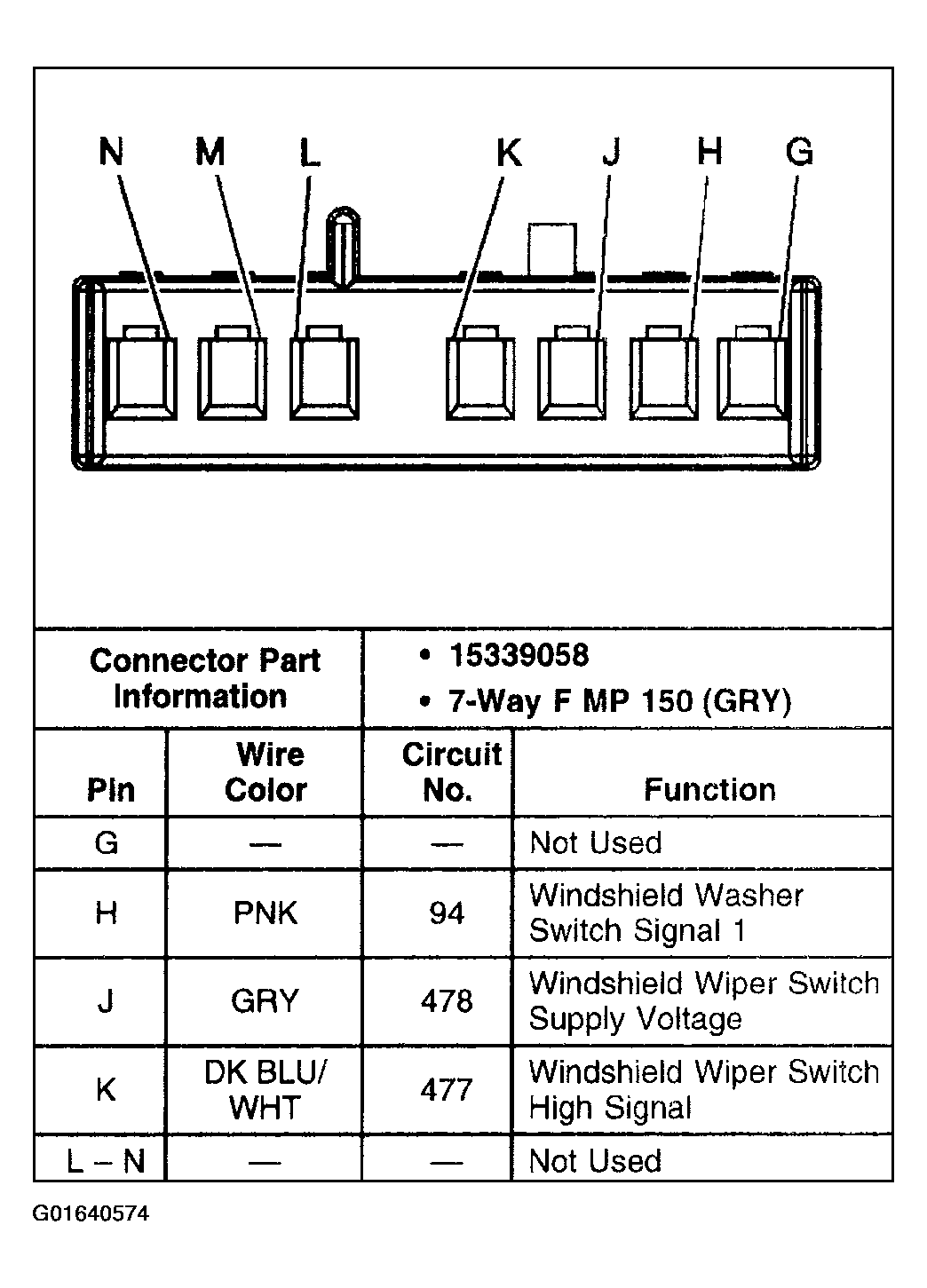

Fig 1: Windshield Wiper/Washer Switch Connector End View (Turn Signal/Multifunction Switch C3)
G01640574Courtesy of GENERAL MOTORS CORP.
