4WD Switch Indicator Lights Flashing, 4WD Inoperative, DTCs C0327, P0550 Set (Replace Transfer Case Encoder Sensor, Reprogram TCCM) (04-04-21-004)

Publication date: 2004-12-16
Reference number: 04-04-21-004

4WD Switch Indicator Lights Flashing, 4WD Inoperative, DTCs C0327, P0550 Set (Replace Transfer Case Encoder Sensor, Reprogram TCCM)

4WD Switch Indicator Lights Flashing, 4WD Inoperative, DTCs C0327, P0550 Set (Replace Transfer Case Encoder Sensor, Reprogram TCCM)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 04-04-21-004, Date of Issue:  Dec 16, 2004
Affected Model(s): 2004-2005 Buick Rainier; 2002-2005 Chevrolet TrailBlazer, TrailBlazer EXT; 2002-2005 GMC Envoy, Envoy XL; 2004-2005 GMC Envoy XUV; 2002-2004 Oldsmobile Bravada; with Four-Wheel Drive (4WD);

Condition

Some customers may comment that the Service 4WD light is on, the 4WD system is inoperative or the 4WD switch indicator lights are blinking.

Service Diagnosis

Technicians may find DTC C0327 in the Transfer Case Control Module (TCCM). This would indicate an encoder sensor malfunction.

It is also possible that the module may be in a mode that will not allow any shifts or updates for the software or calibrations. If this occurs, the TREC fuse (in the engine compartment) must be pulled and reinstalled after 30 seconds. This should allow further operation and service of the system. If a C0550 code is found, this is an unrelated concern and SI diagnostics should be followed for this concern.

Correction

IMPORTANT: Carefully handle and install the new encoder. Improper installation of the encoder could result in a repeat failure.
  1. Raise the vehicle.
  2. Disconnect the transfer case motor/encoder wiring harness.
  3. Remove the four bolts that secure the motor/encoder to the transfer case.
  4. Remove the motor/encoder from the transfer case.

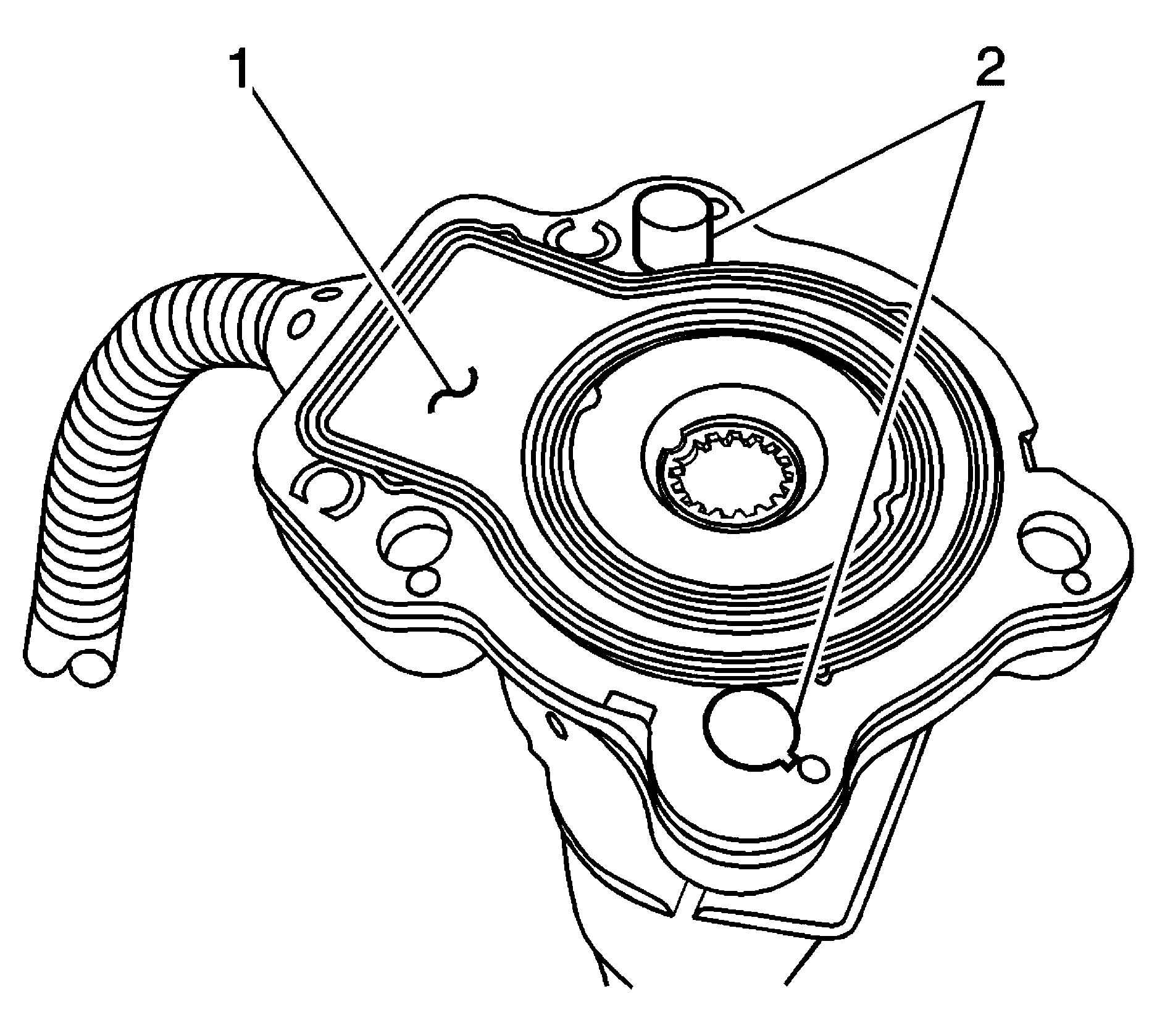

    Fig 1: Removing Motor/Encoder
    GBGM1567019Courtesy of GENERAL MOTORS CORP.
  5. Remove the black plastic gasket/over plate from the motor/encoder.

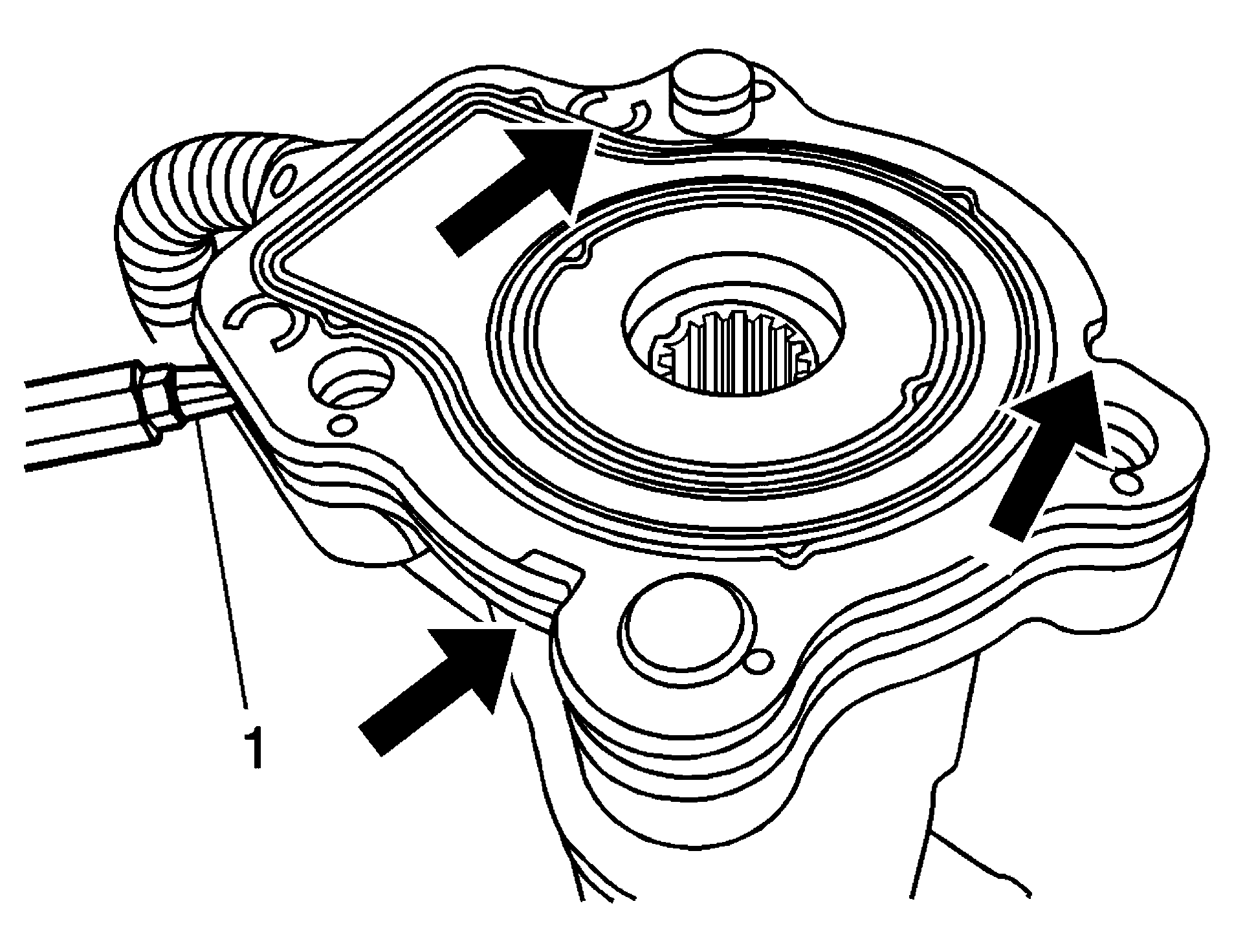

    Fig 2: Locking Tabs
    GBGM1567040Courtesy of GENERAL MOTORS CORP.
    1. Push out the two "single" locking tabs (two lower arrows in illustration above Fig 2 ) located on the underside of the housing (motor end).
    2. At the other end of the gasket/cover plate, place a flathead screwdriver tip (1 in Fig 2 ) between the gasket/cover plate and the motor housing near the "dual" locking tabs. Twist the screwdriver clockwise/counterclockwise at both sides until the locking tabs break and the gasket/cover plate comes off.
    3. Discard the gasket/cover plate.

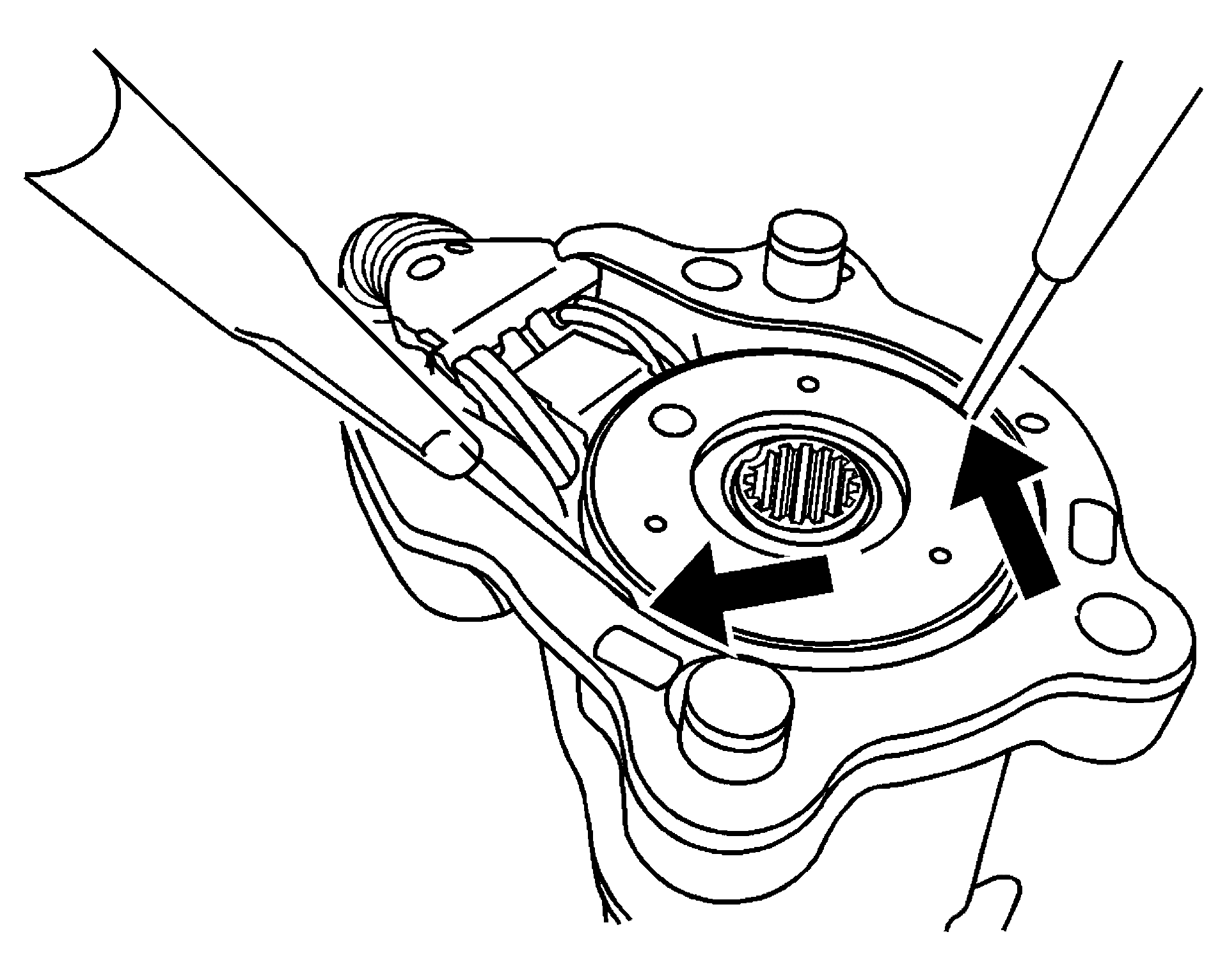

    Fig 3: Removing Encoder
    GBGM1567041Courtesy of GENERAL MOTORS CORP.
  6. Avoiding the wire connection, take two small flathead screwdrivers (one on each side of the encoder) and rock the encoder sensor out using light pressure on each screwdriver. (Fig 3 )
  7. Gently remove the encoder sensor from the wire harness connector. Pry these apart by inserting a small flathead screwdriver between the terminals and the harness connector. Verify that no damage or corrosion exists on either male encoder terminals or female wiring harness terminals.

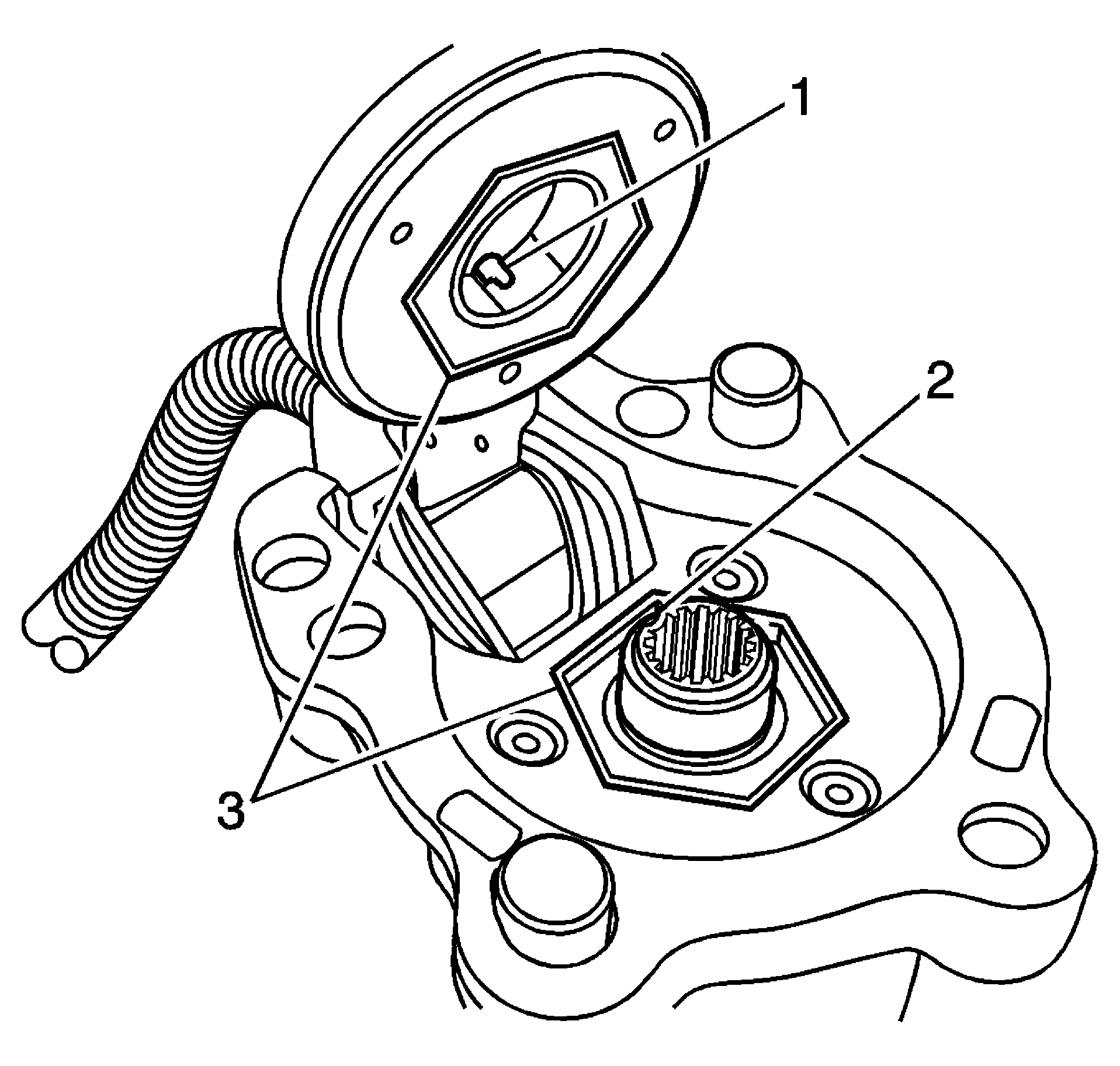

    Fig 4: Installing Encoder Sensor
    GBGM1567042Courtesy of GENERAL MOTORS CORP.
  8. Install the new encoder sensor by connecting to the harness and then gently sliding the encoder sensor over the motor shaft. The hex feature (3 in Fig 4 ) on the encoder should face down toward the motor housing. Make sure the tab (1 in Fig 4 ) on the encoder mates with the notch (2 in Fig 4 ) on the shaft. If the encoder tab is not aligned with the output shaft, rotate the encoder inner ring by hand to mate properly. Press the encoder fully onto the shaft and into the housing.

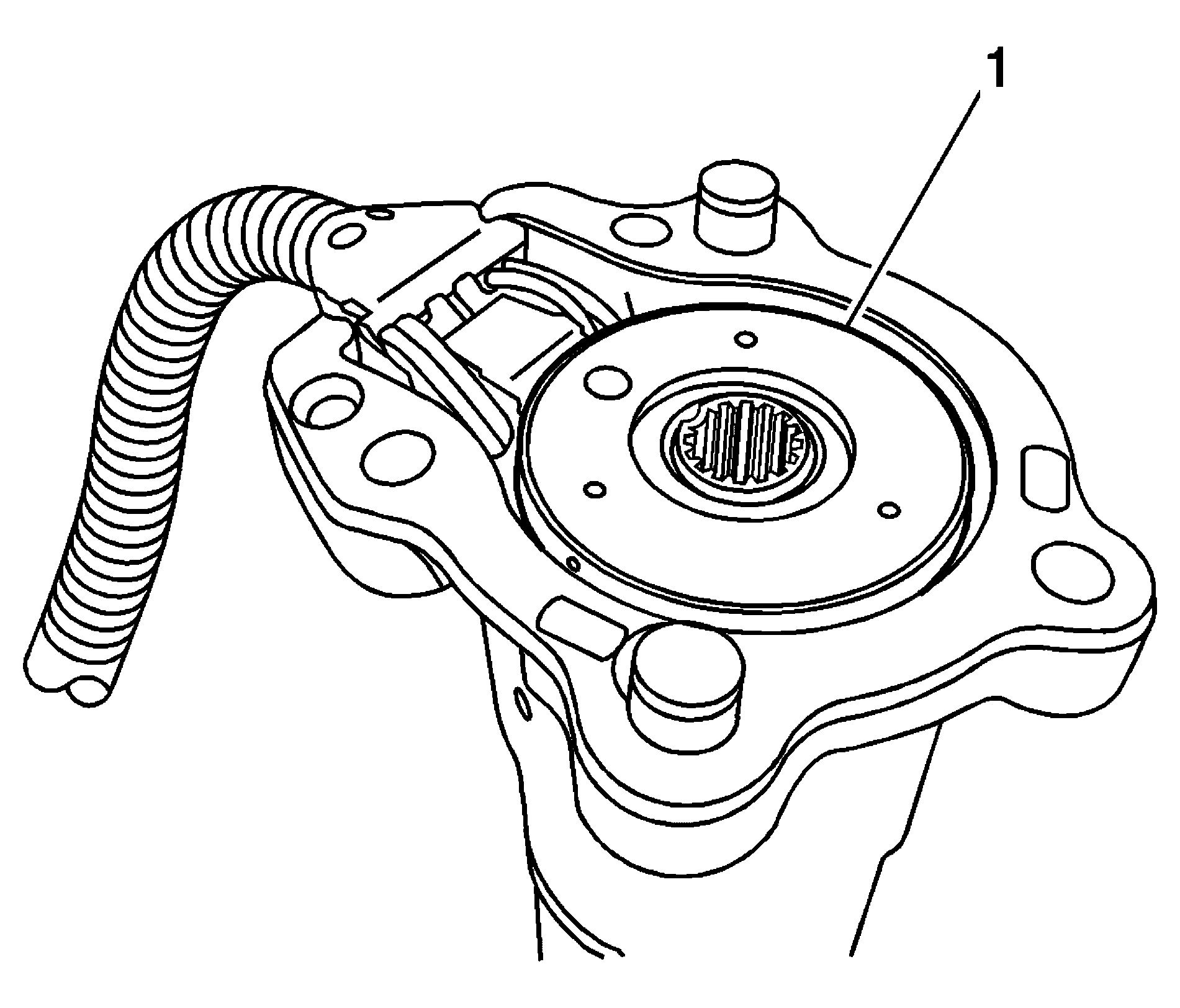

    Fig 5: Encoder Cover
    GBGM1567044Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • Make sure the encoder cover (1 in Fig 5 ) is flush or below the surface of the motor housing and fully seated into place.
    • Ensure that the new encoder/harness assembly is fully seated to the encoder sensor.

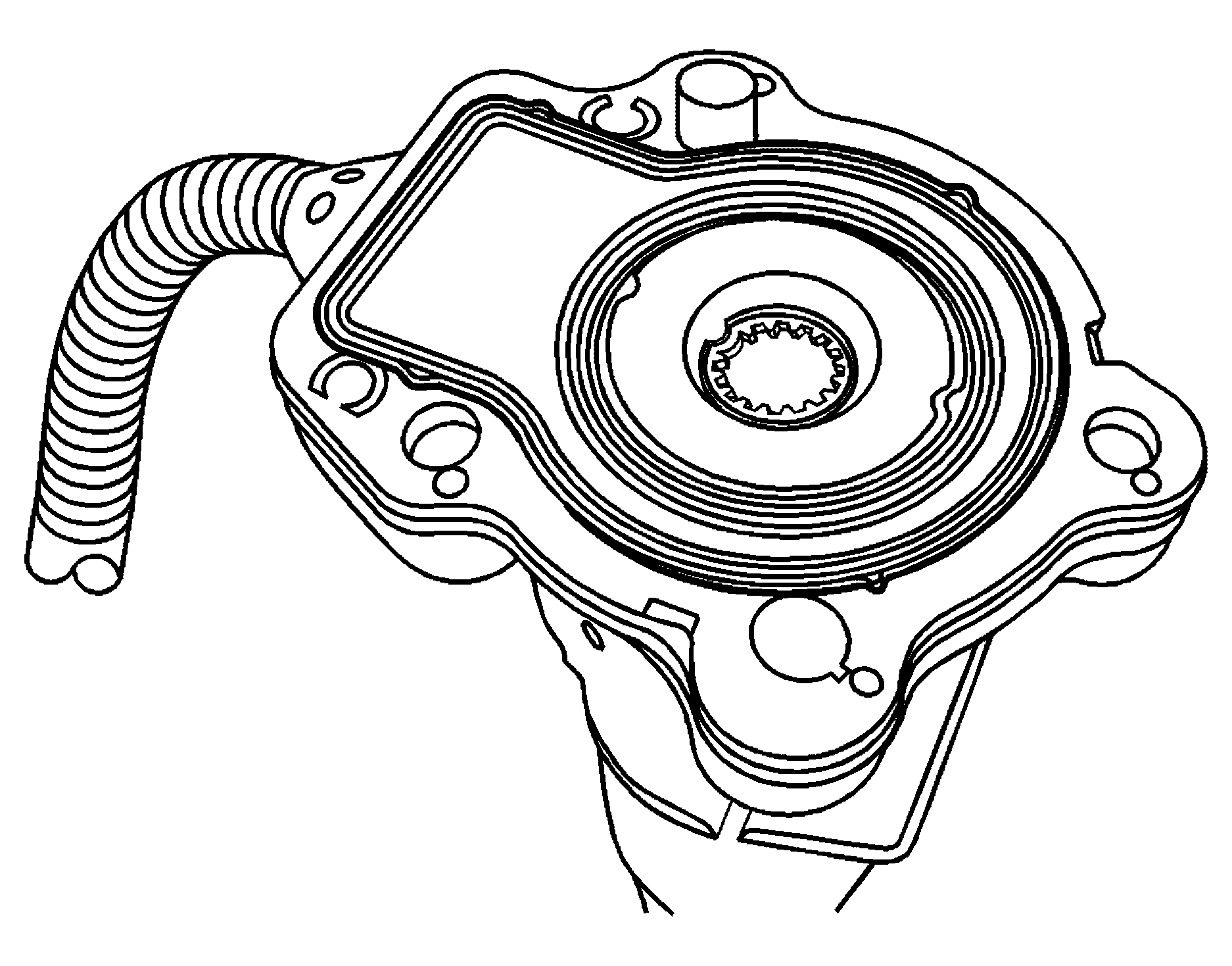

    Fig 6: Checking Encoder Cover Installation
    GBGM1567046Courtesy of GENERAL MOTORS CORP.
  9. Install a new gasket/cover plate. This should snap into position. Make sure all the four tabs are FULLY engaged. (Fig 6 )
  10. Install the motor/encoder onto the transfer case using four M8-1.25 X .35 flange head bolts.

    Tighten all four bolts to 13.5 to 17.6 N.m (10 to 13 lb ft).

  11. Connect the transfer case motor/encoder wiring harness.
  12. Following normal SPS reprogramming procedures, reprogram the transfer case control module with the latest software calibration.
  13. Verify that the 4WD system is operational.

Parts Information

Parts Information

Part Number Description
89059278 Actuator Asm (NP4)
89059275 Actuator Asm (NP8)
88996636 Gasket/Cover Plate
89059276 126/226 AB Encoder Sensor

Parts are currently available from GMSPO.

Warranty Information

For vehicles repaired under warranty, use:

Warranty Information

Labor Operation Description Labor Time
K4124 Sensor Assembly, Transfer Case Range Selector - Replace 0.7hr*
*This labor time includes reprogramming.
Add: with skid plate 0.2hr
Add: Diagnosis time 0.0-0.7hr
