Air Temperature Sensor Assembly Connector End View - Inside

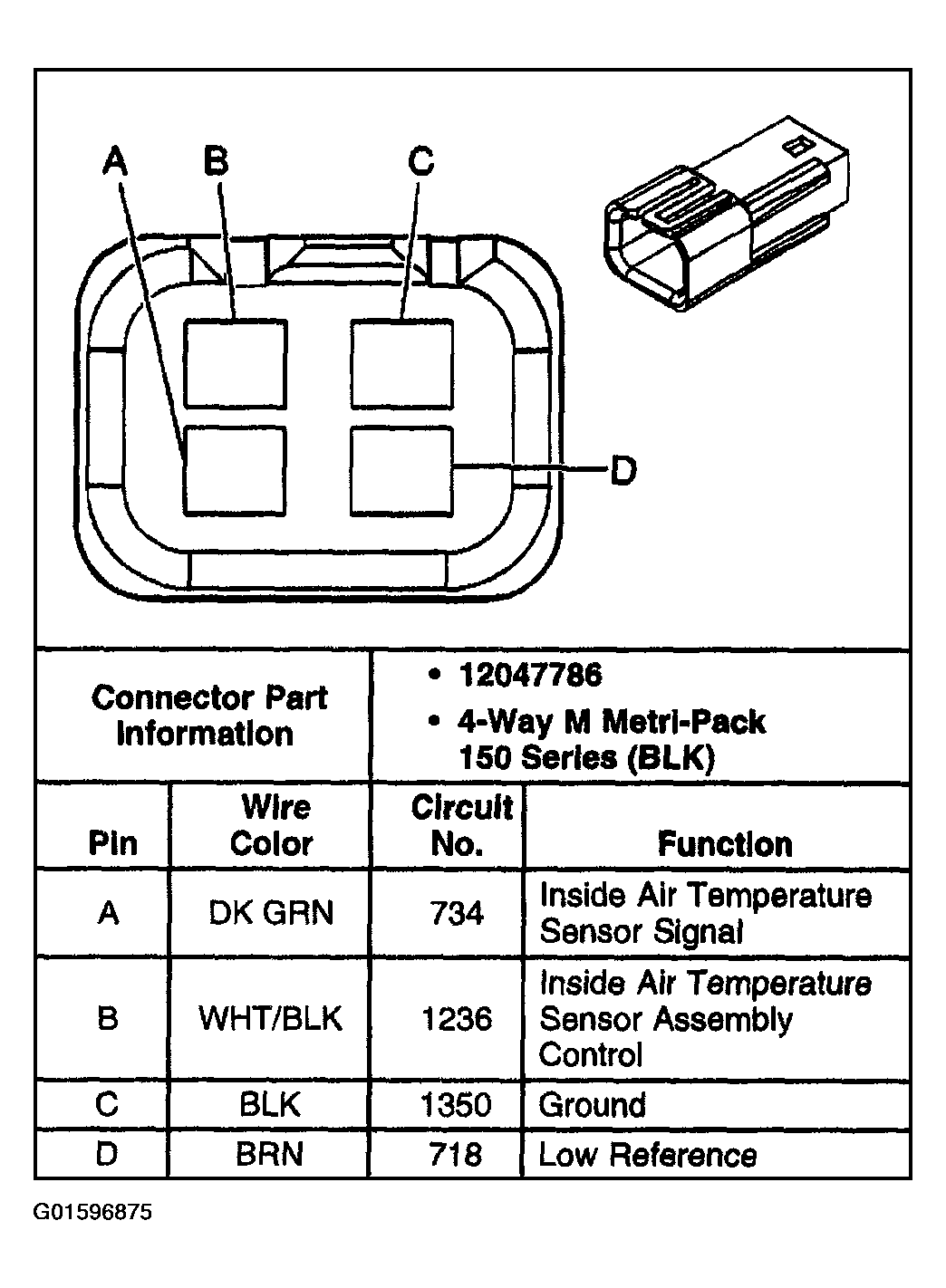

Fig 1: Air Temperature Sensor Assembly Connector End View - Inside
G01596875Courtesy of GENERAL MOTORS CORP.
