RR Window Switch Connector End View

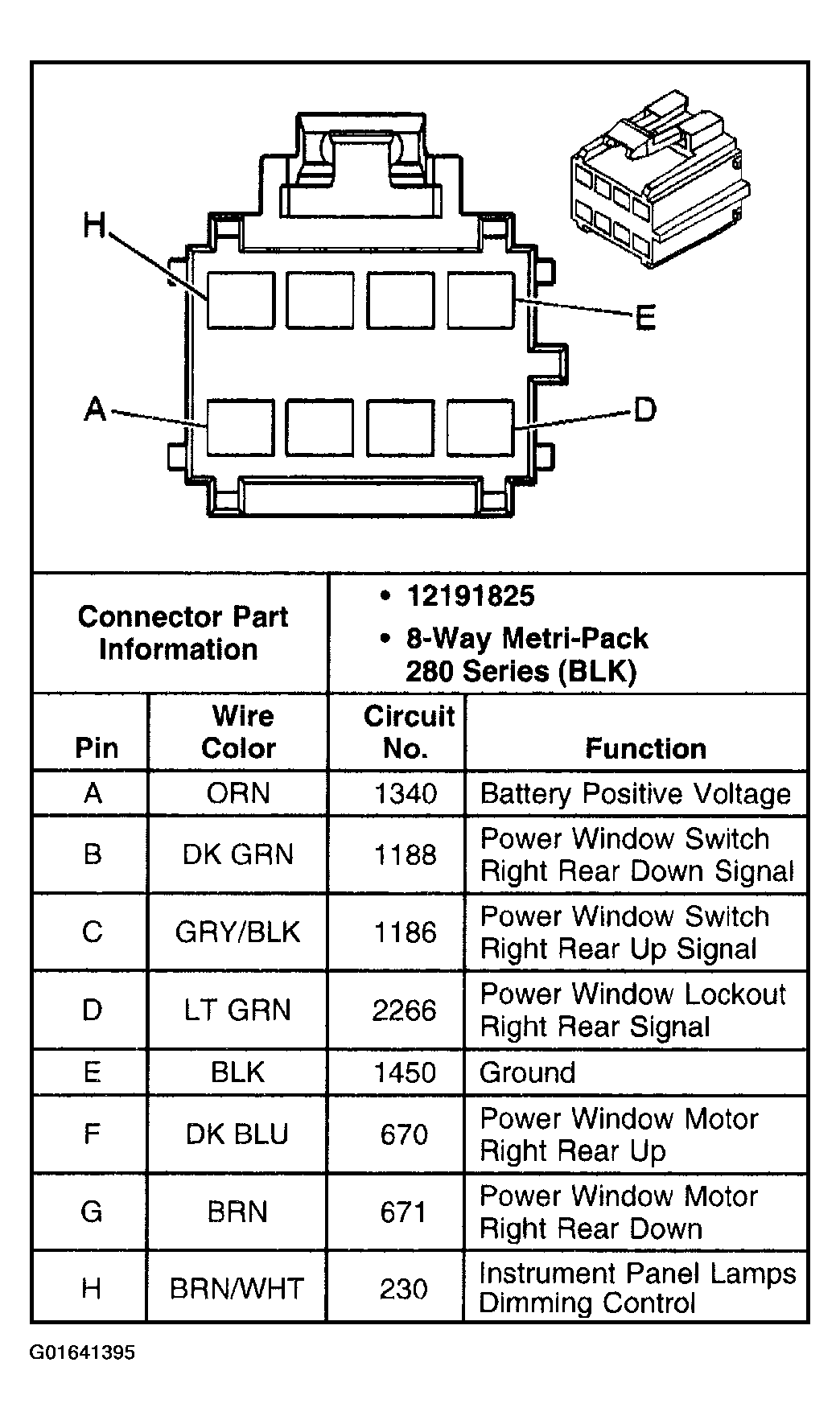

Fig 1: RR Window Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
