Installation Procedure

  1. Install the upper control arm.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the upper control arm mounting bolts.

    Tighten

    Tighten the upper control arm mounting bolts to 150 N.m (111 lb ft).

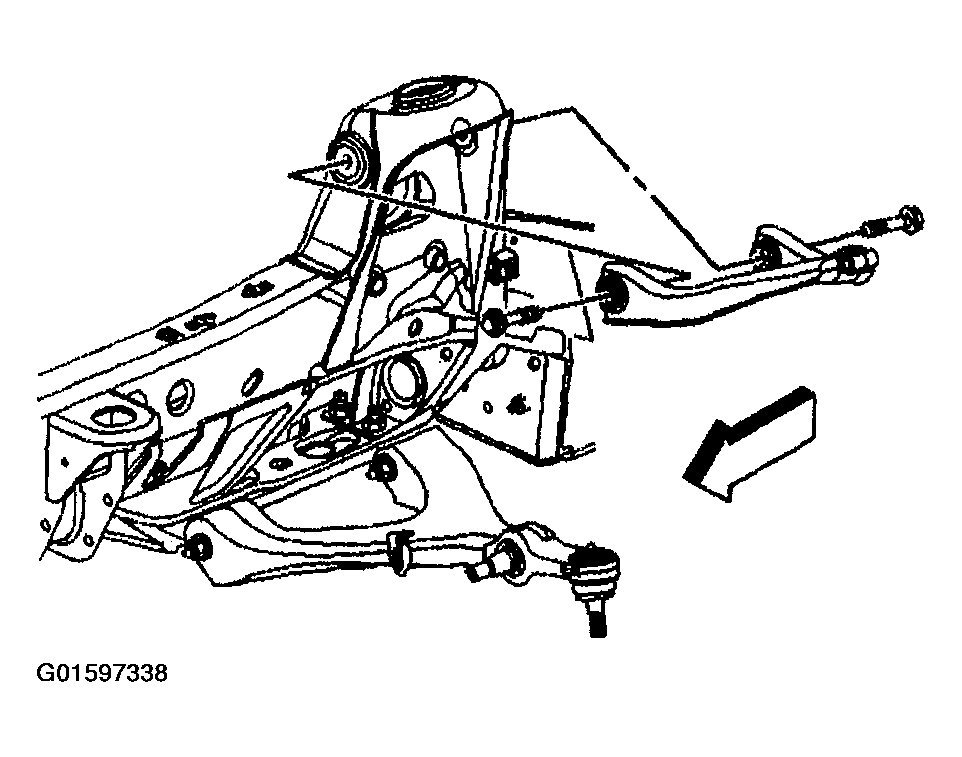

    Fig 1: Installing Upper Control Arm Mounting Bolts
    G01597338Courtesy of GENERAL MOTORS CORP.
  3. Connect the ABS wheel speed sensor wiring harness to the upper control arm.

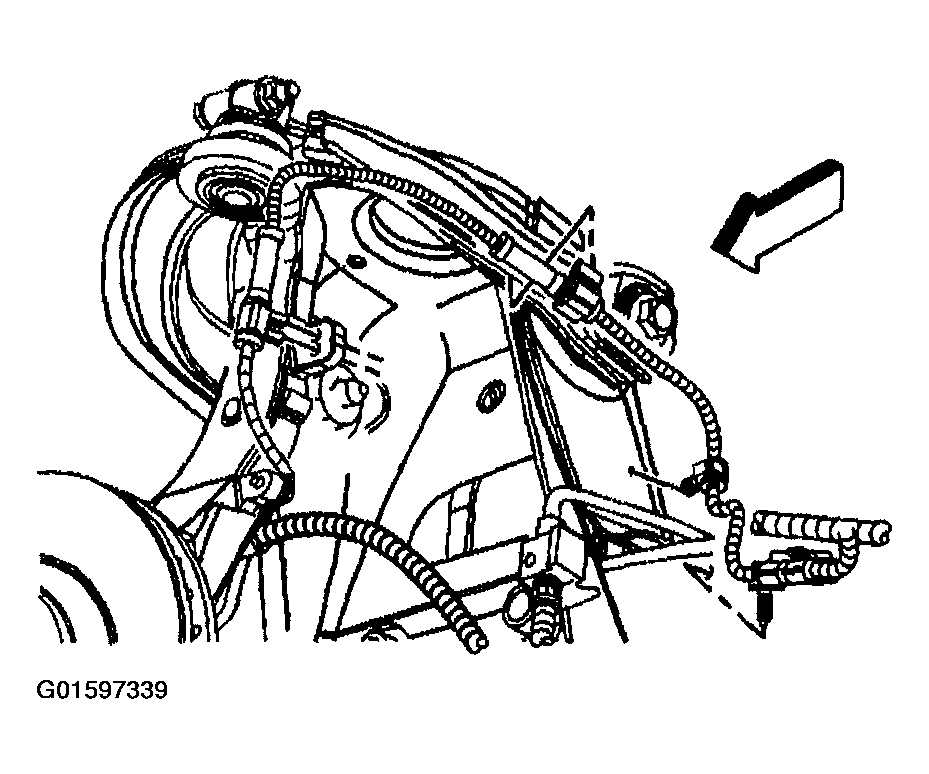

    Fig 2: Connecting ABS Wheel Speed Sensor Wiring Harness To Upper Control Arm
    G01597339Courtesy of GENERAL MOTORS CORP.
  4. Connect the upper control arm to the steering knuckle
  5. Install the upper ball joint to upper control arm pinch bolt and nut.

    Tighten

    Tighten the upper ball joint to upper control arm pinch bolt to 40 N.m (30 lb ft).

  6. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels
  7. Lower the vehicle.
  8. Check the front wheel alignment. Refer to Wheel Alignment  SPECIFICATIONS  in Wheel Alignment.

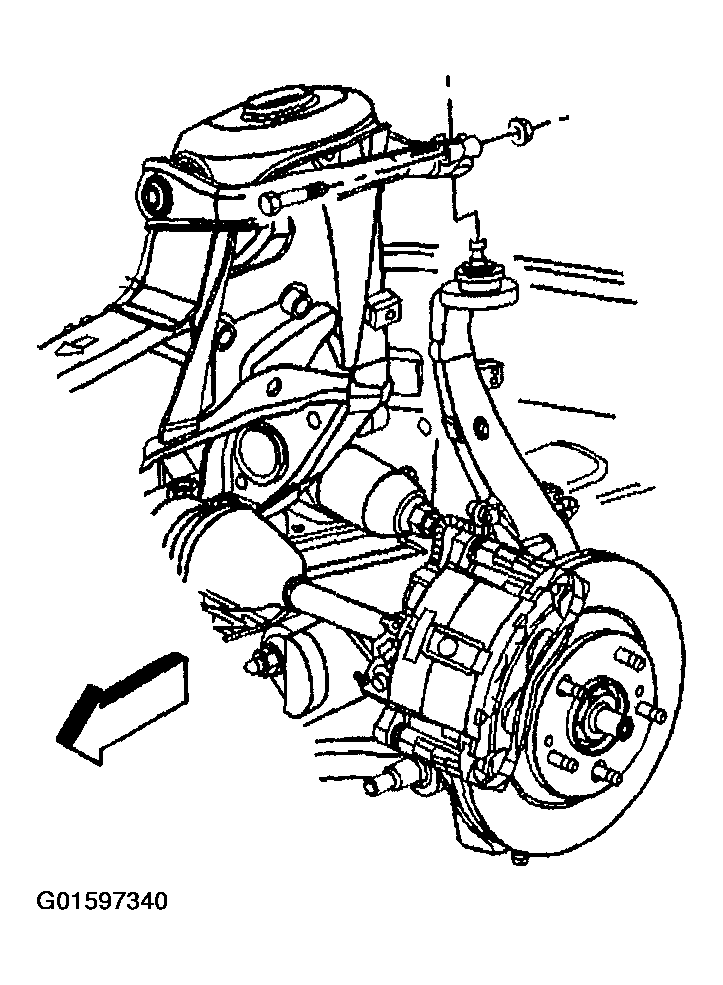

    Fig 3: Installing Upper Ball Joint To Upper Control Arm Pinch Bolt And Nut
    G01597340Courtesy of GENERAL MOTORS CORP.
