Transmission Support: Installation

  1. Install the transmission support to the frame.

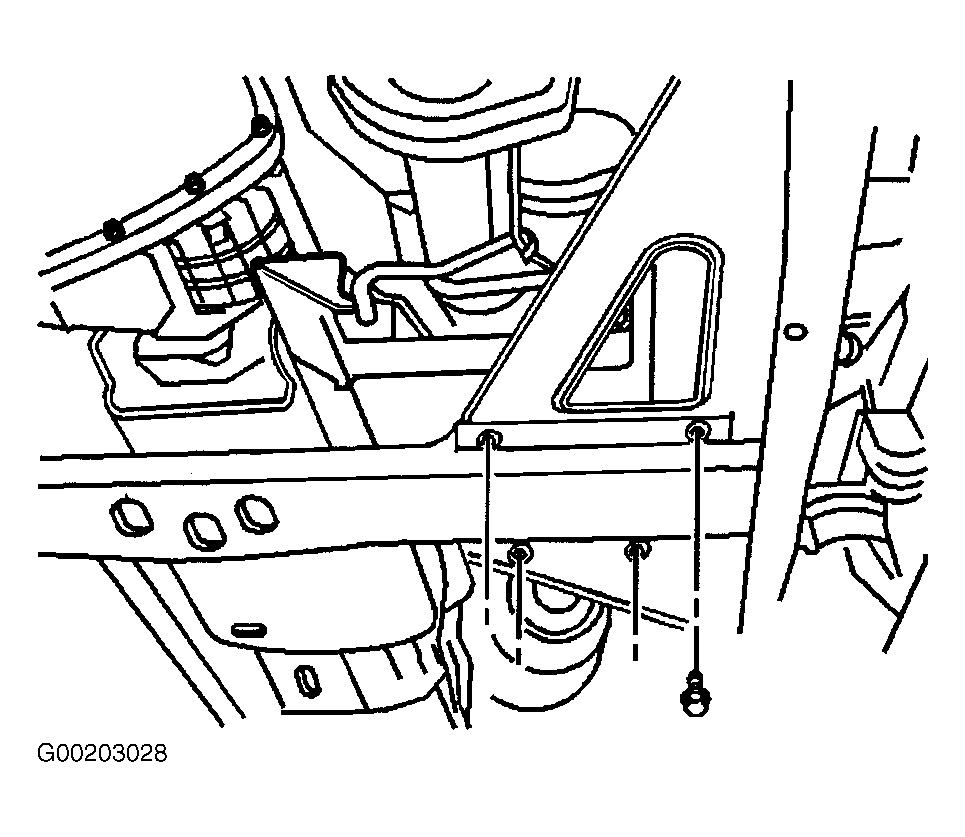

  2. Install the upper transmission support-to-frame mounting bolts. See Figure . Tighten the upper transmission support-to-frame mounting bolts to specification. See TORQUE SPECIFICATIONS  .

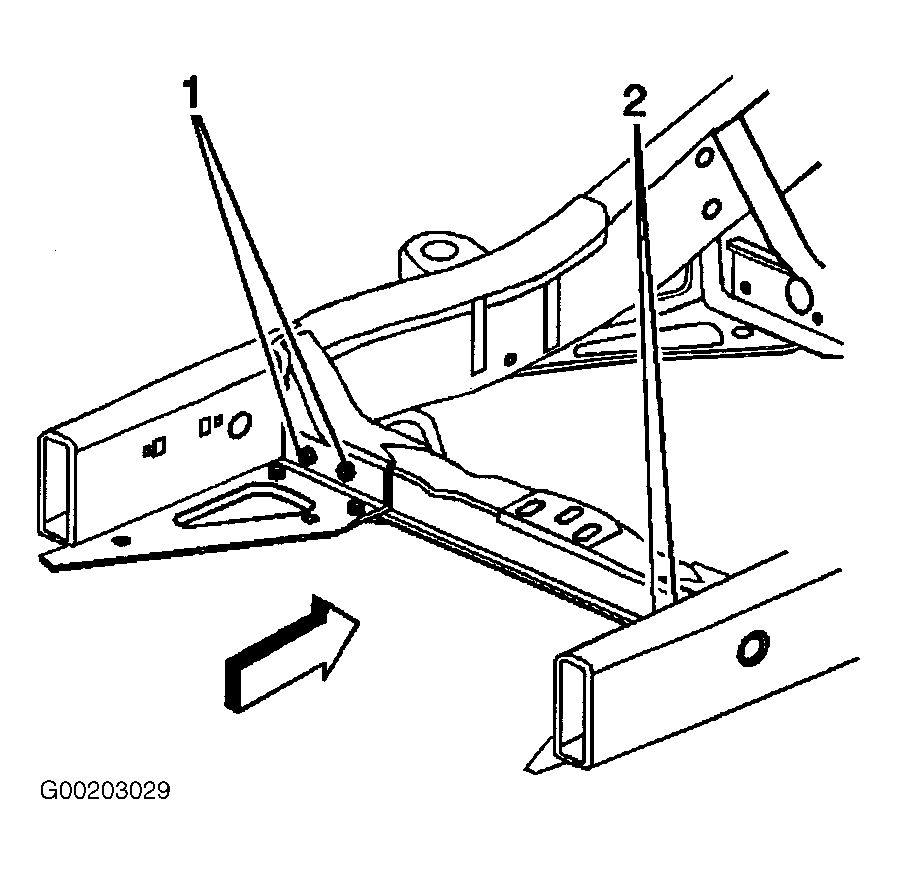

  3. Install the lower transmission support-to-frame mounting bolts. See Figure . Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .
  4. Lower the transmission onto the transmission support.

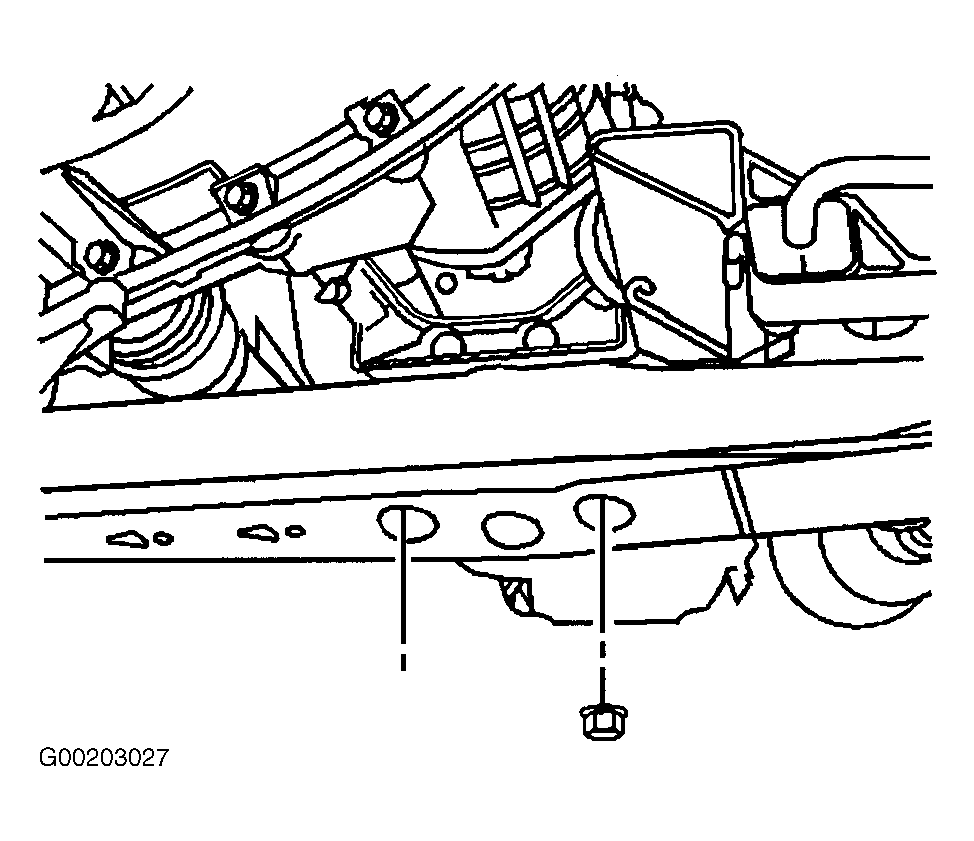

  5. Install the transmission mount-to-transmission support retaining nuts. See Figure . Tighten the transmission mount-to-transmission support retaining nuts to specification. See TORQUE SPECIFICATIONS  .
  6. Install the EVAP canister.
  7. Install the fuel tank shield.
  8. Lower the vehicle.
