Automatic Transmission Shift Lock Control Connector End Views

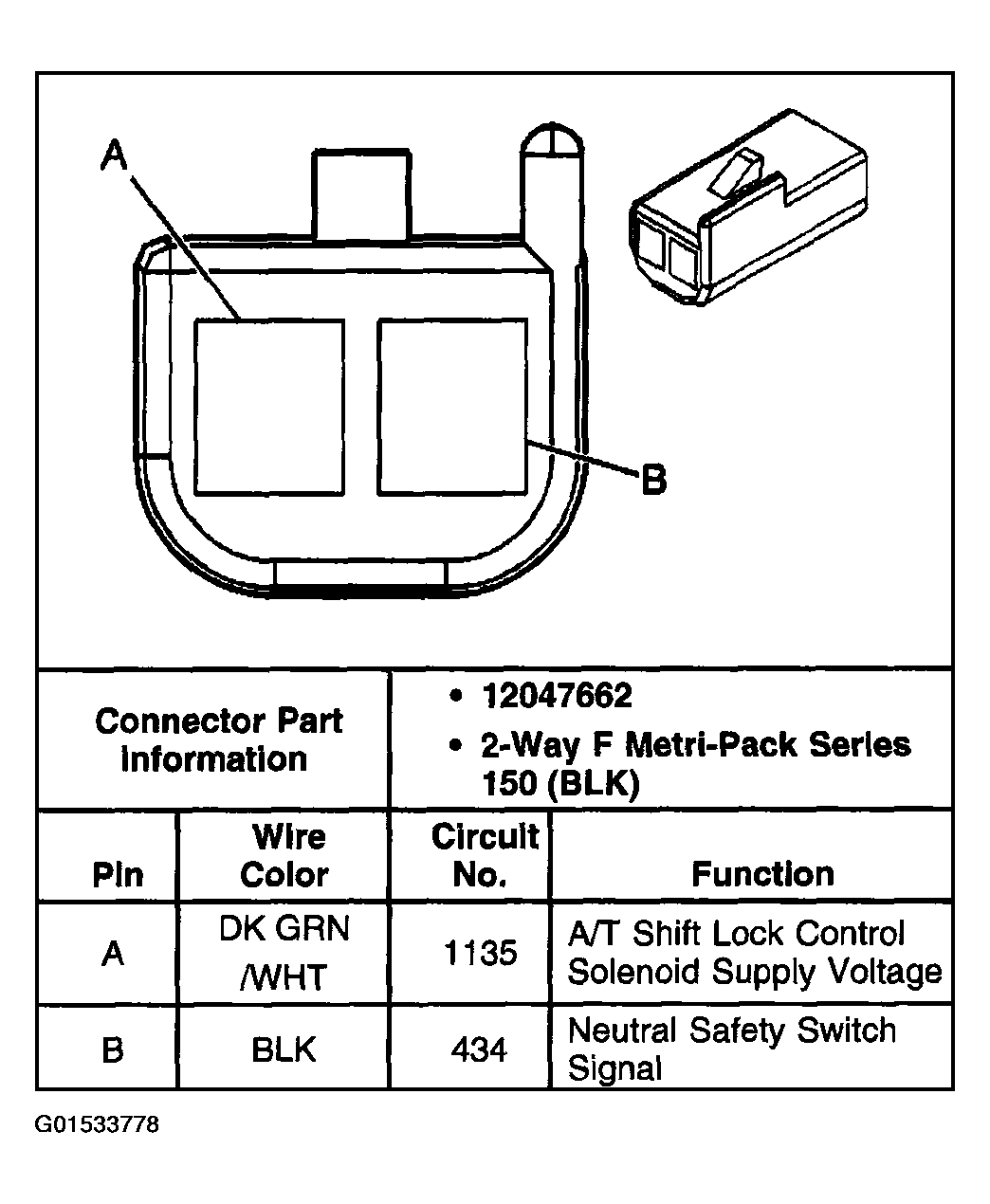

Fig 1: A/T Shift Lock Control Solenoid Connector End View
G01533778Courtesy of GENERAL MOTORS CORP.
