LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Oldsmobile
>>
2004
>>
Bravada 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

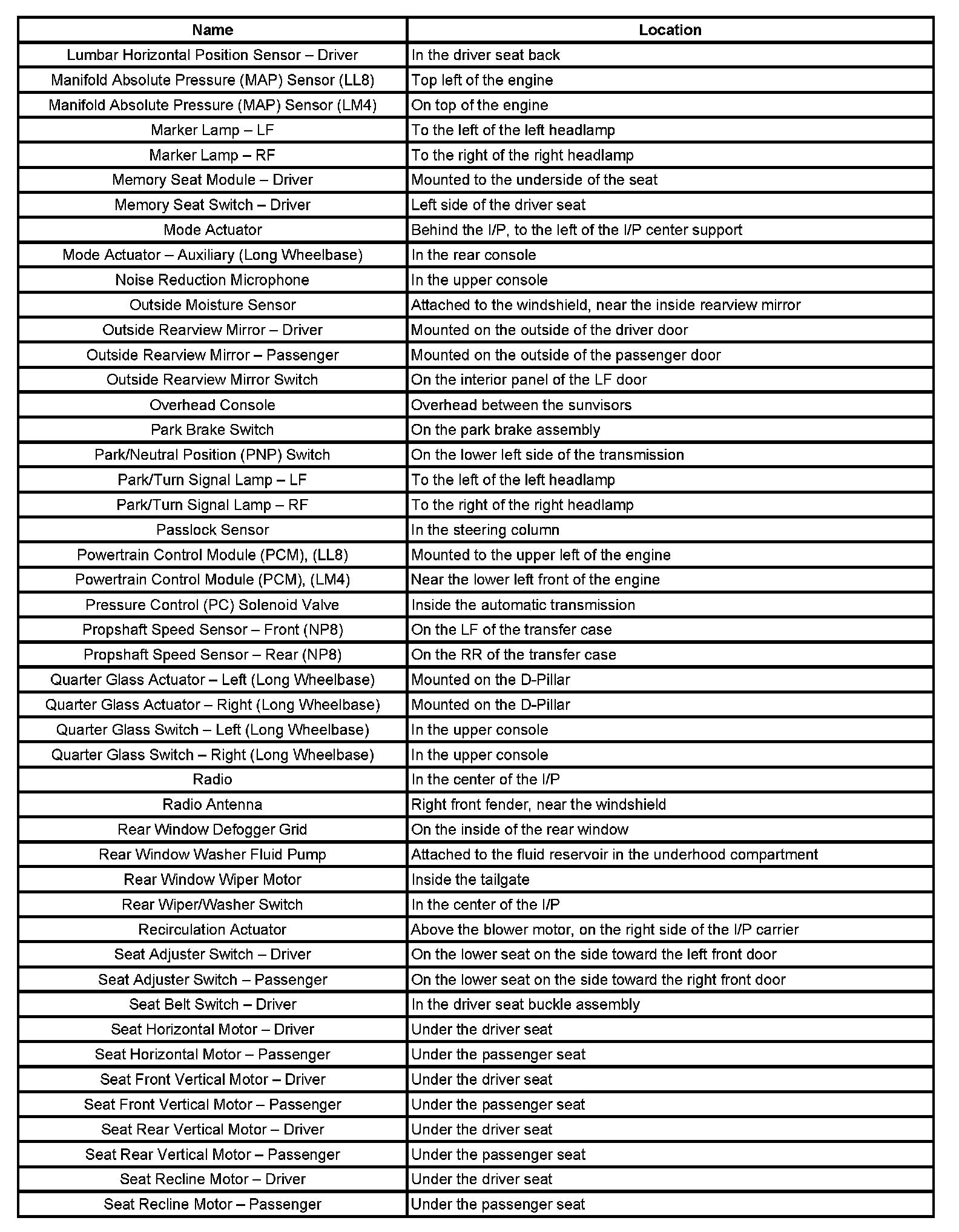

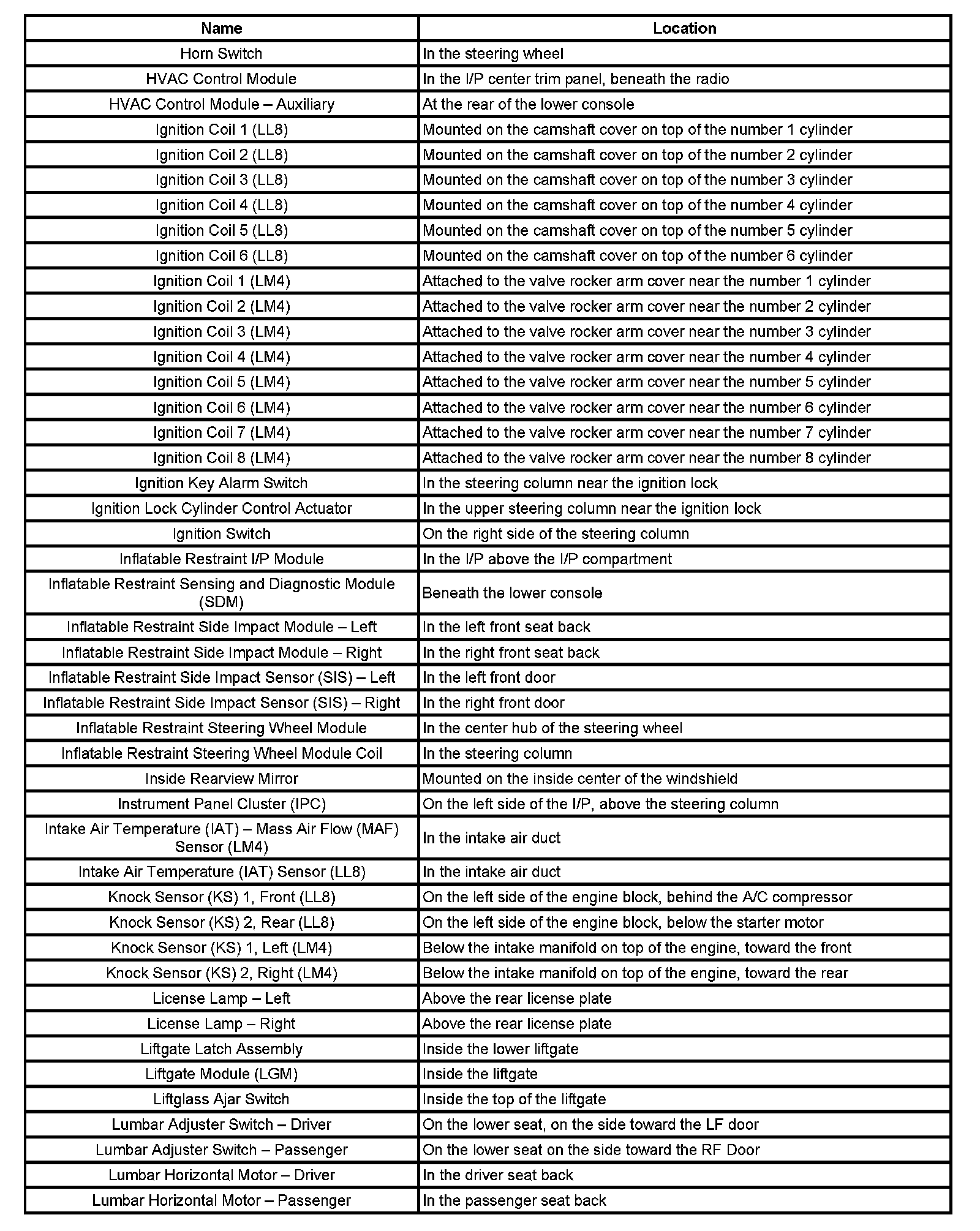

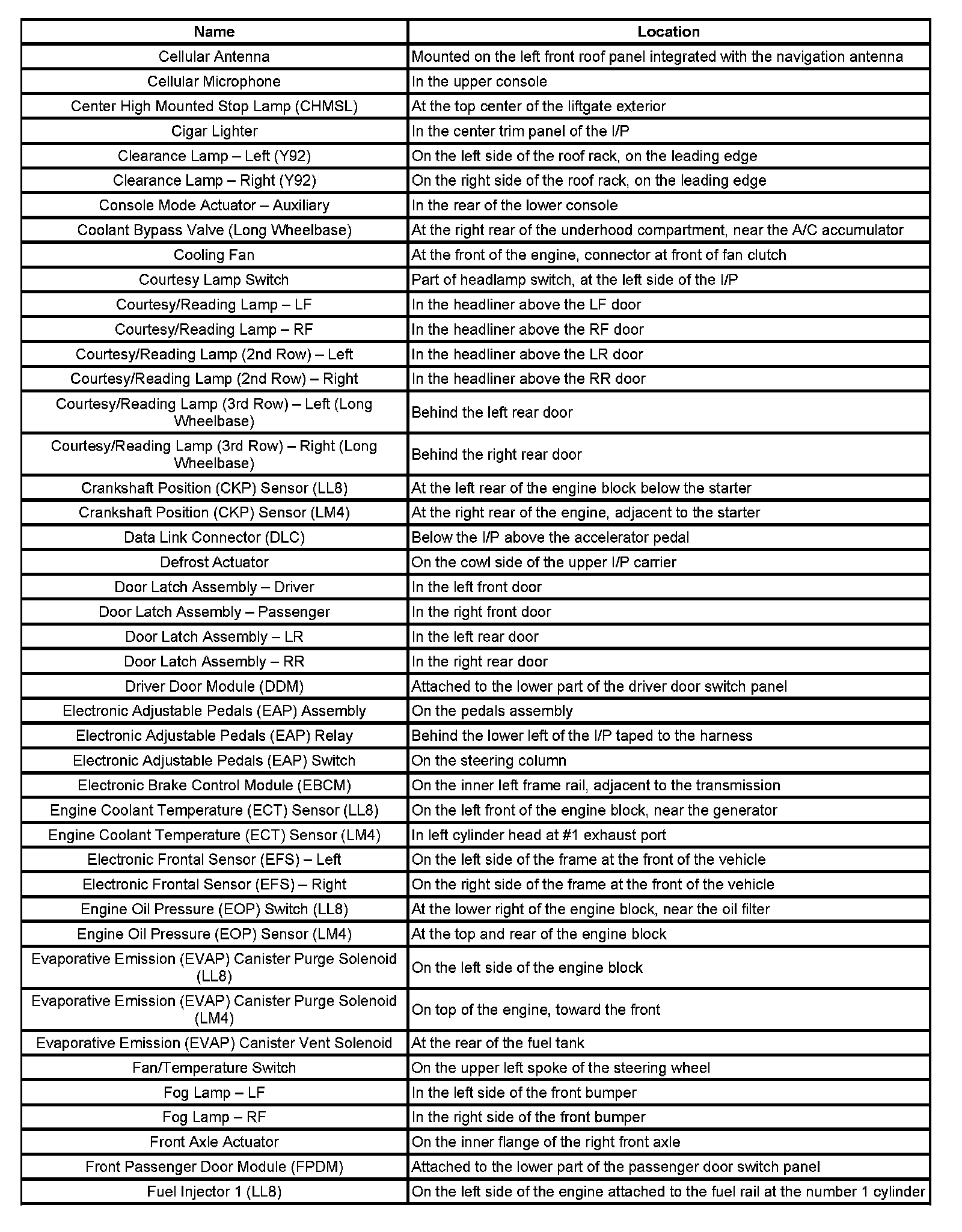

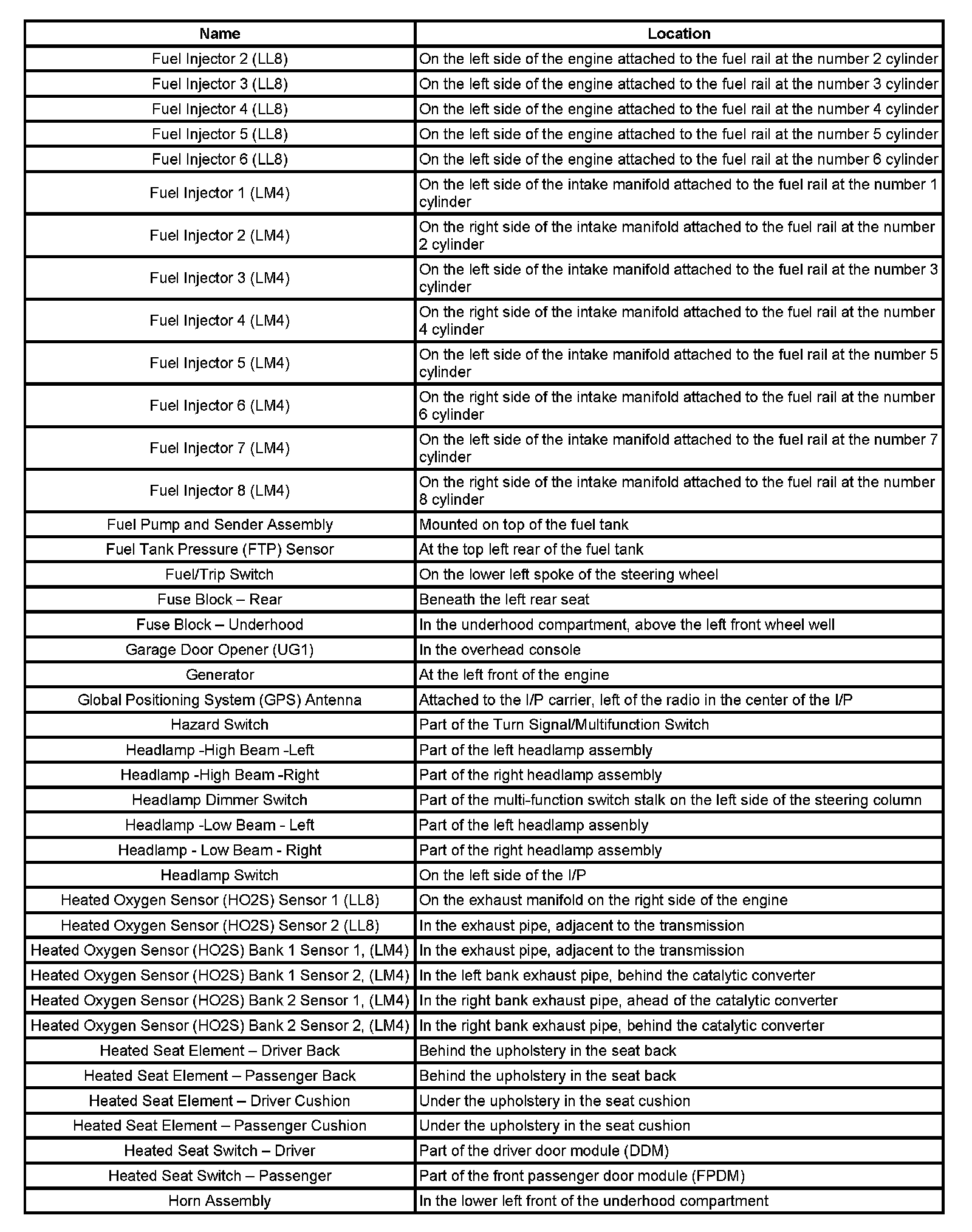

Components
1-2 Shift - Cargo:
Cell - Fuel:
Fuel - Horn:
Horn - Lumbar:
Lumbar - Seat:
Seat - Window:
Win - Win:
