Power Outlet Component Views

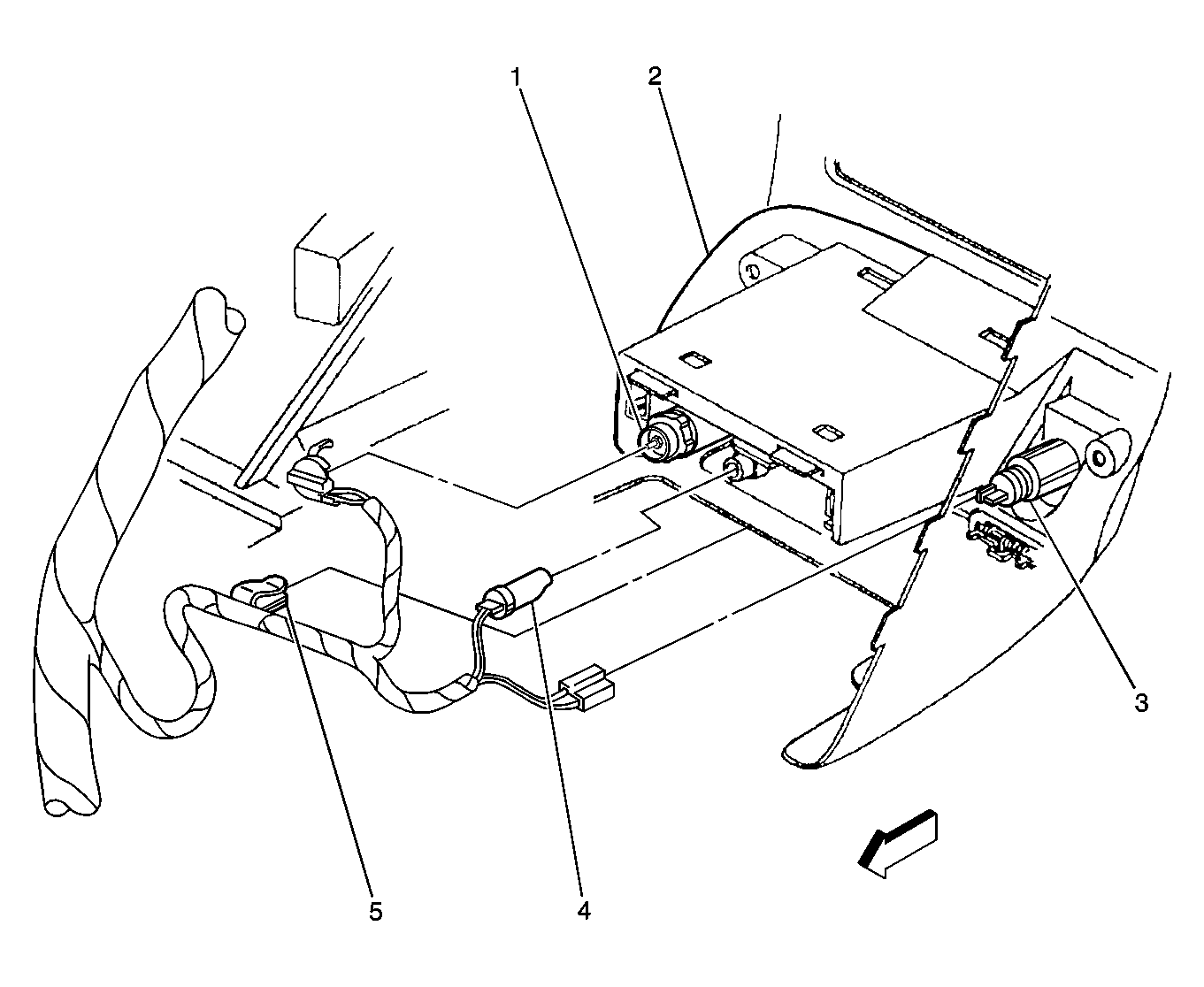

Fig 1: Center of I/P
GM447360Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cigar Lighter
2 Ashtray
3 Auxiliary Power Outlet-Front
4 Cigar Lamp
5 I/P Harness
