Removal & Installation: Removal: Notes

Disconnect battery negative cable. Remove flexible joint bolt and two lower column guide bolts. Remove two column-to-instrument panel nuts and disconnect electrical connections. Withdraw column and shaft assembly.

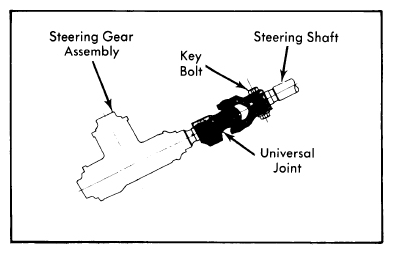

Fig 1: Flexible Joint Connecting Steering Shaft With Steering Gear
G09356373Courtesy of NOT AVAILABLE
