Injection ECU

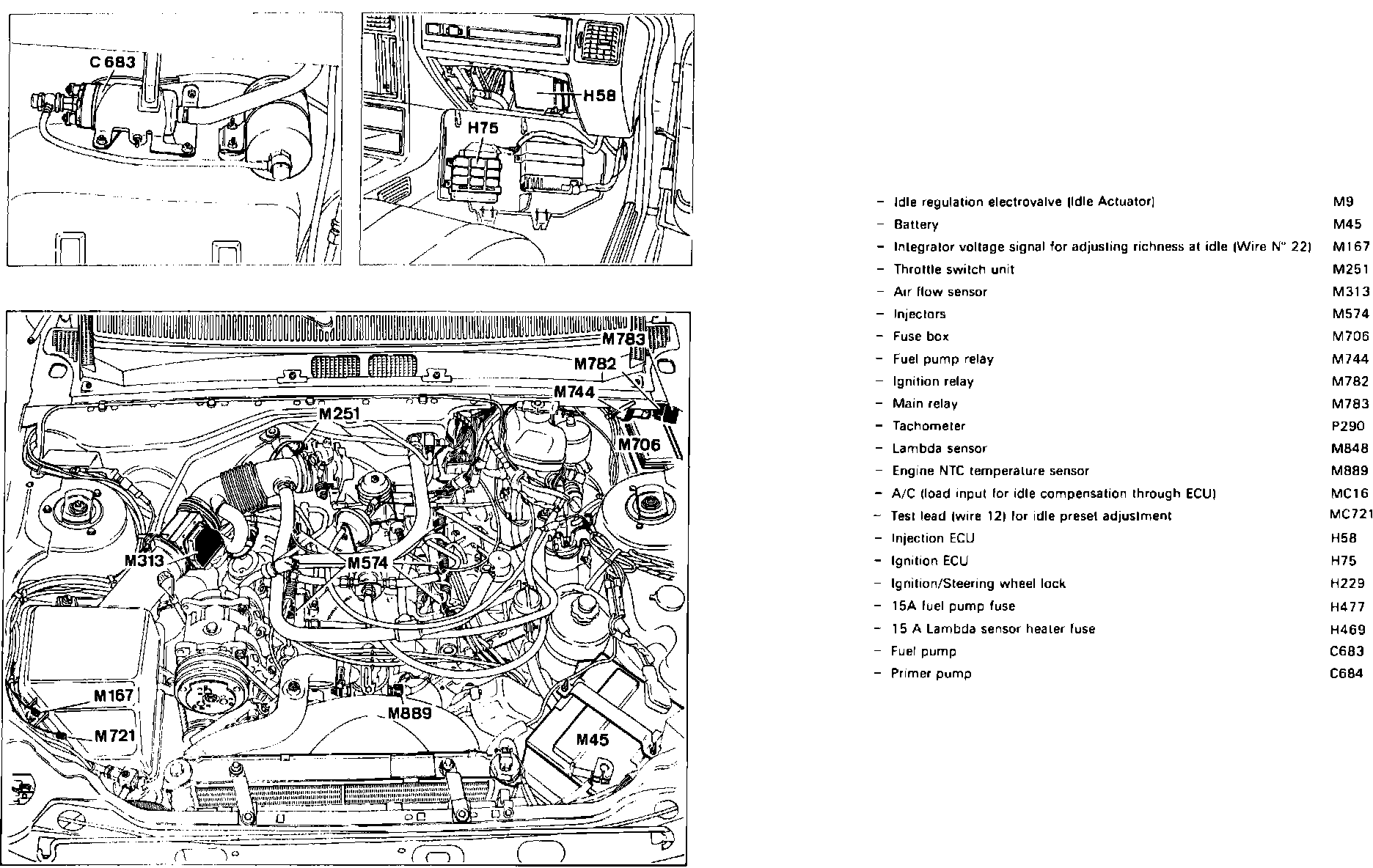

Electronic Fuel Injection System Components (Part 1 of 2).:

Electronic Fuel Injection System Components (Part 1 of 2).:

Mounted In RH Side Of I/P Behind Glove Box At Firewall

Applicable to: N9TE & N9TEA Engines

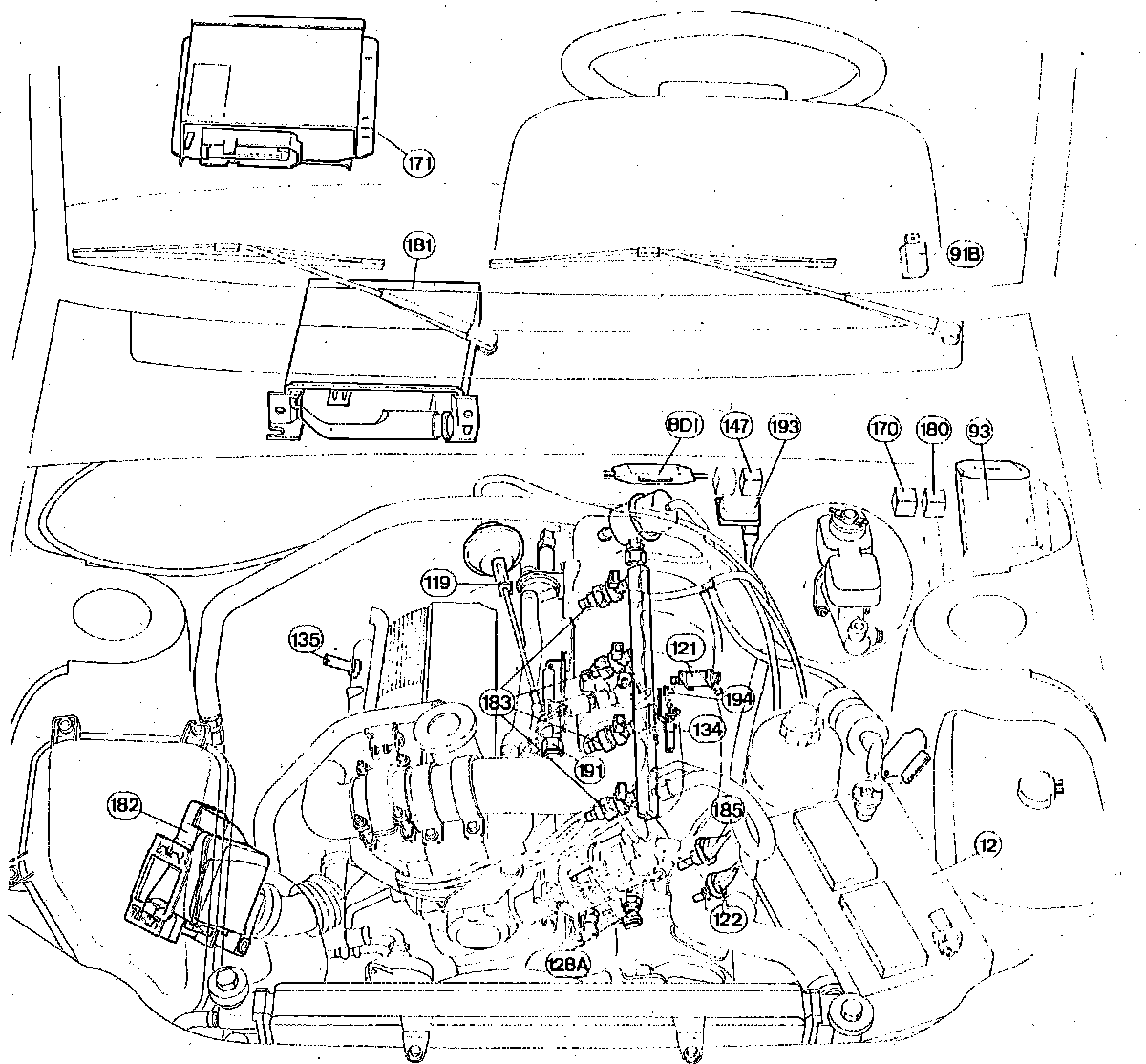

Electronic Fuel Injection System Components.:

Mounted In RH Side Of I/P Behind Glove Box At Firewall

Applicable to: ZDJL Engine

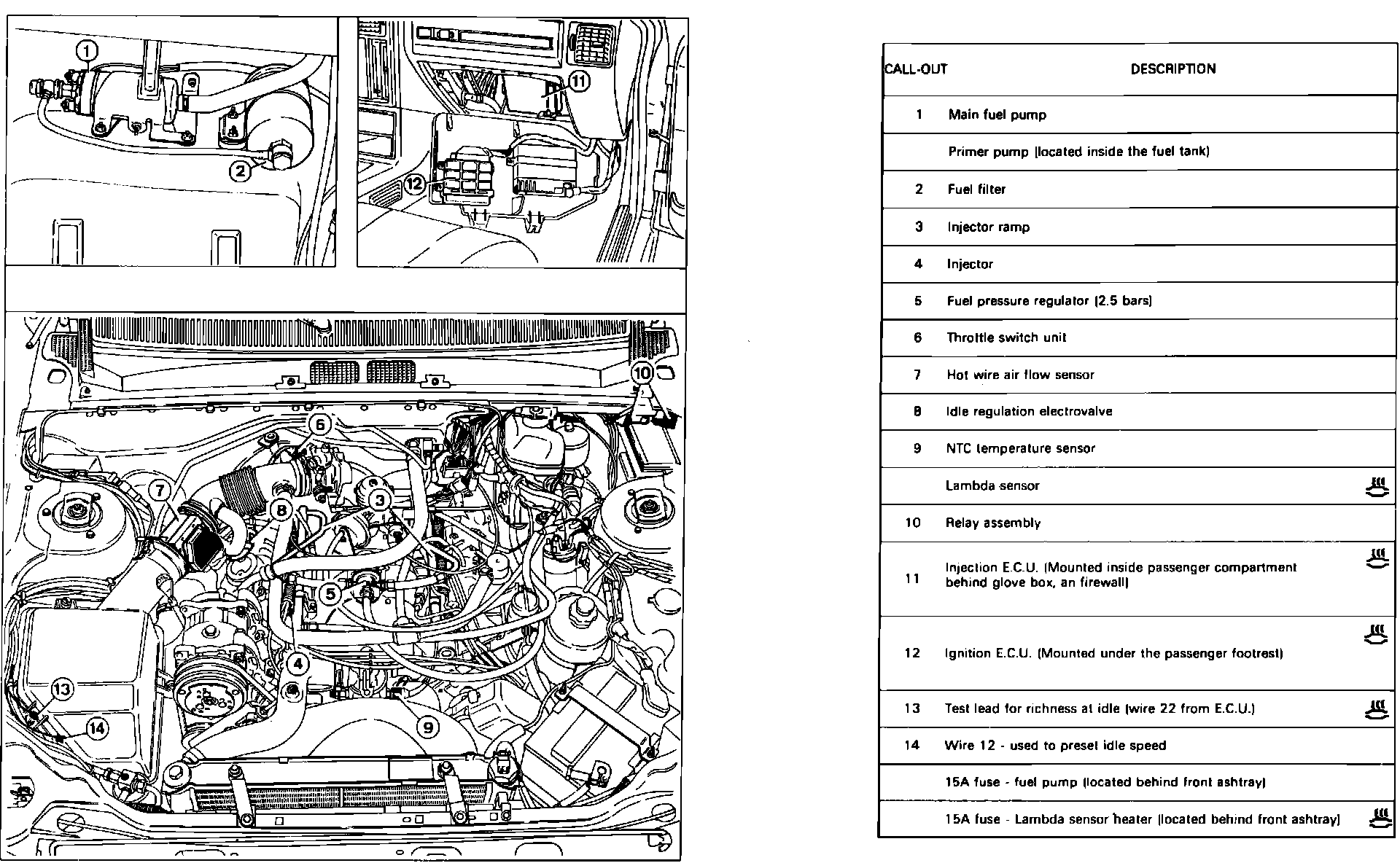

Electronic Fuel Injection System Components (Part 1 of 2).:

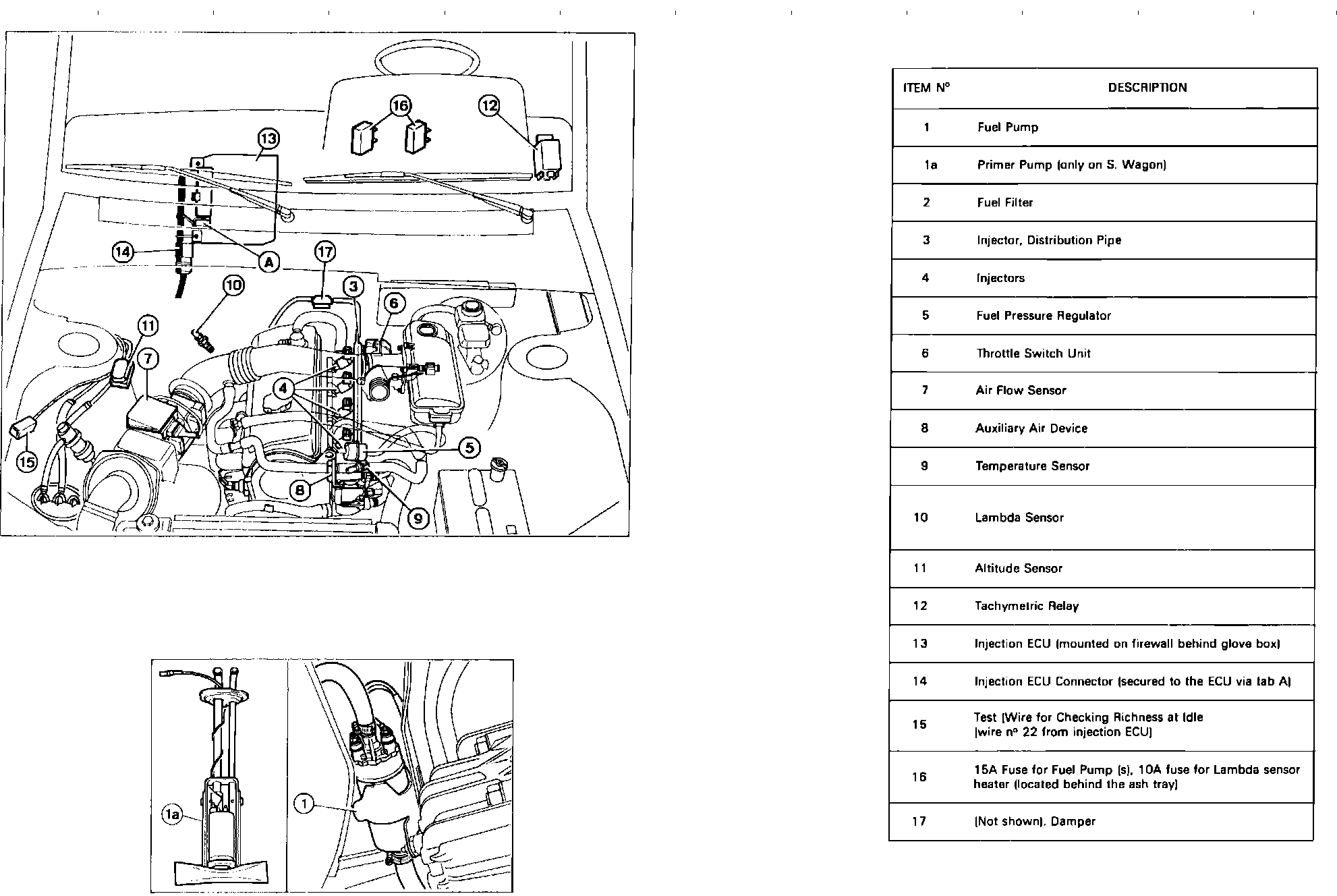

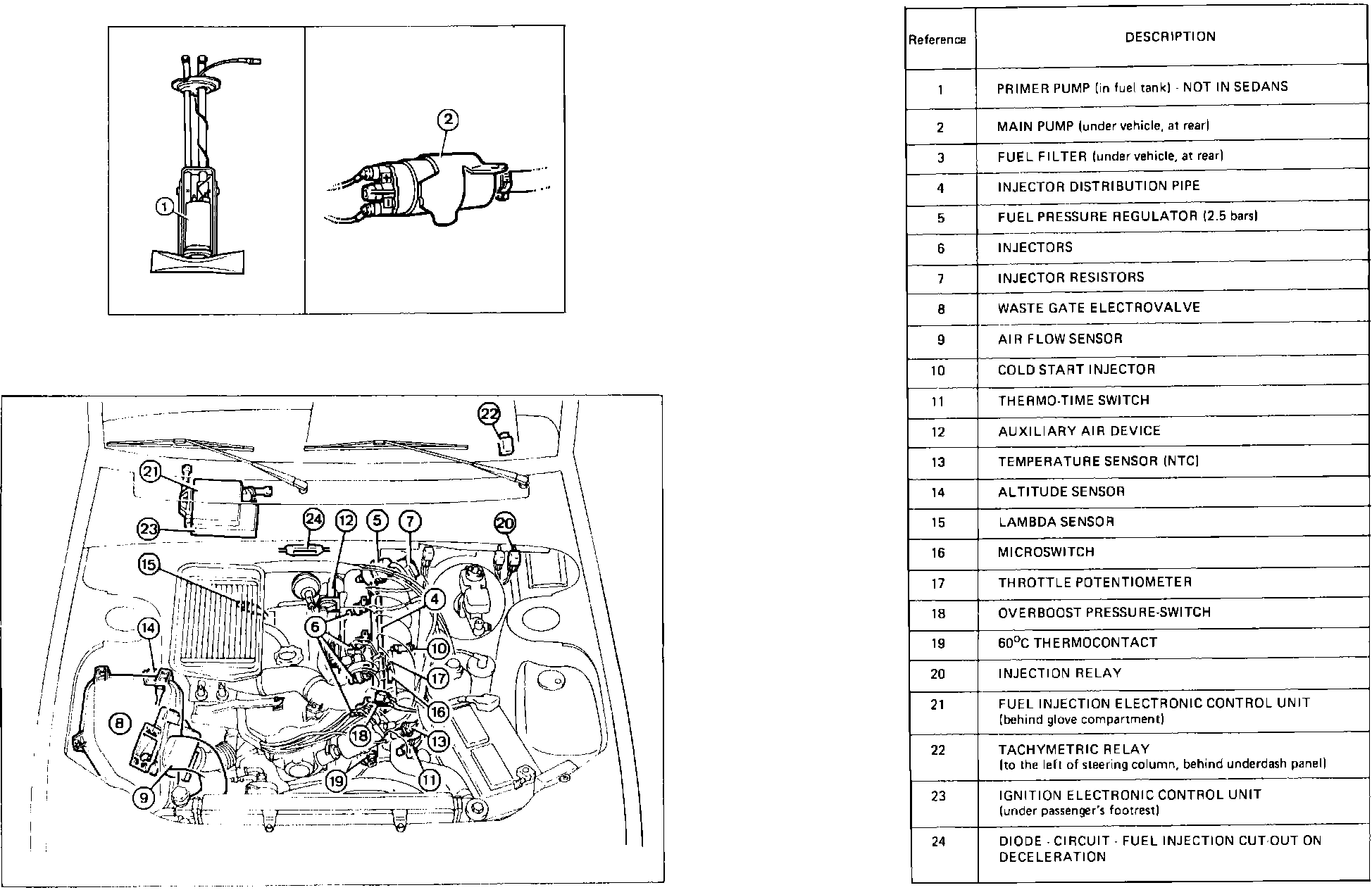

Electronic Fuel Injection System Components (Part 1 of 2).:

Mounted In RH Side Of I/P Behind Glove Box At Firewall

Applicable to: ZD3J Engine
