Plymouth
>>
1978
>>
Arrow Base, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams - Engine Performance
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiring Diagrams - Engine Performance: Wiring Diagram

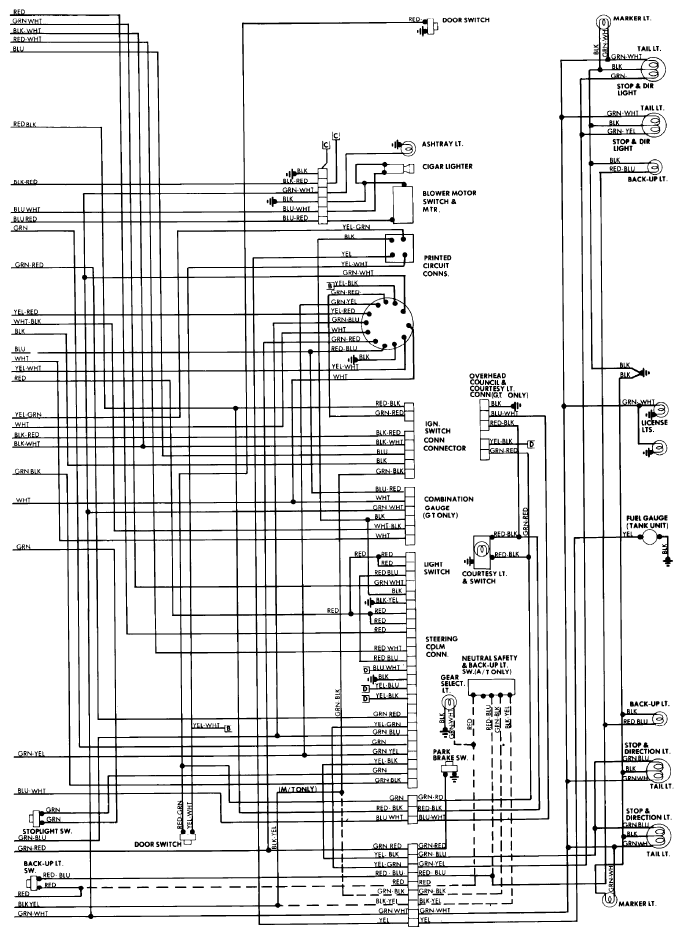

Fig 1: Wiring Diagram - Hatchback (1 of 2)
Courtesy of CHRYSLER GROUP, LLC

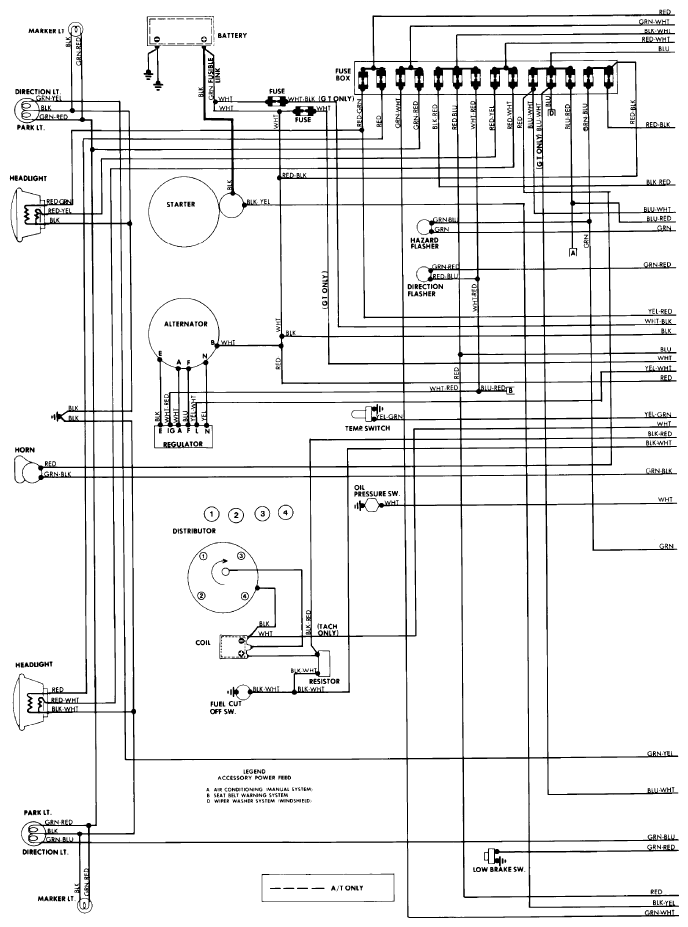

Fig 2: Wiring Diagram - Hatchback (2 of 2)
Courtesy of CHRYSLER GROUP, LLC
