Float Level

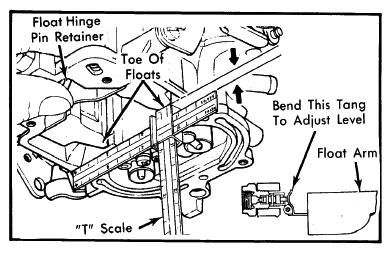

- Install float and hinge pin in main body. Install hinge pin retainer. Install float needle valve, seat and gasket in main body. Tighten securely. See Fig 1.
Courtesy of CHRYSLER GROUP, LLC
- Invert main body. Catch accelerator pump intake check ball if previously installed. Hold retainer in place with finger to fully seat float pin in cradle.
- Using a "T" scale, measure float level specified clearance from air horn gasket surface on main body to toe of each float. To adjust, bend float tang. If necessary, bend either float arm to equalize float positions.
