Speed Control Cable Installation

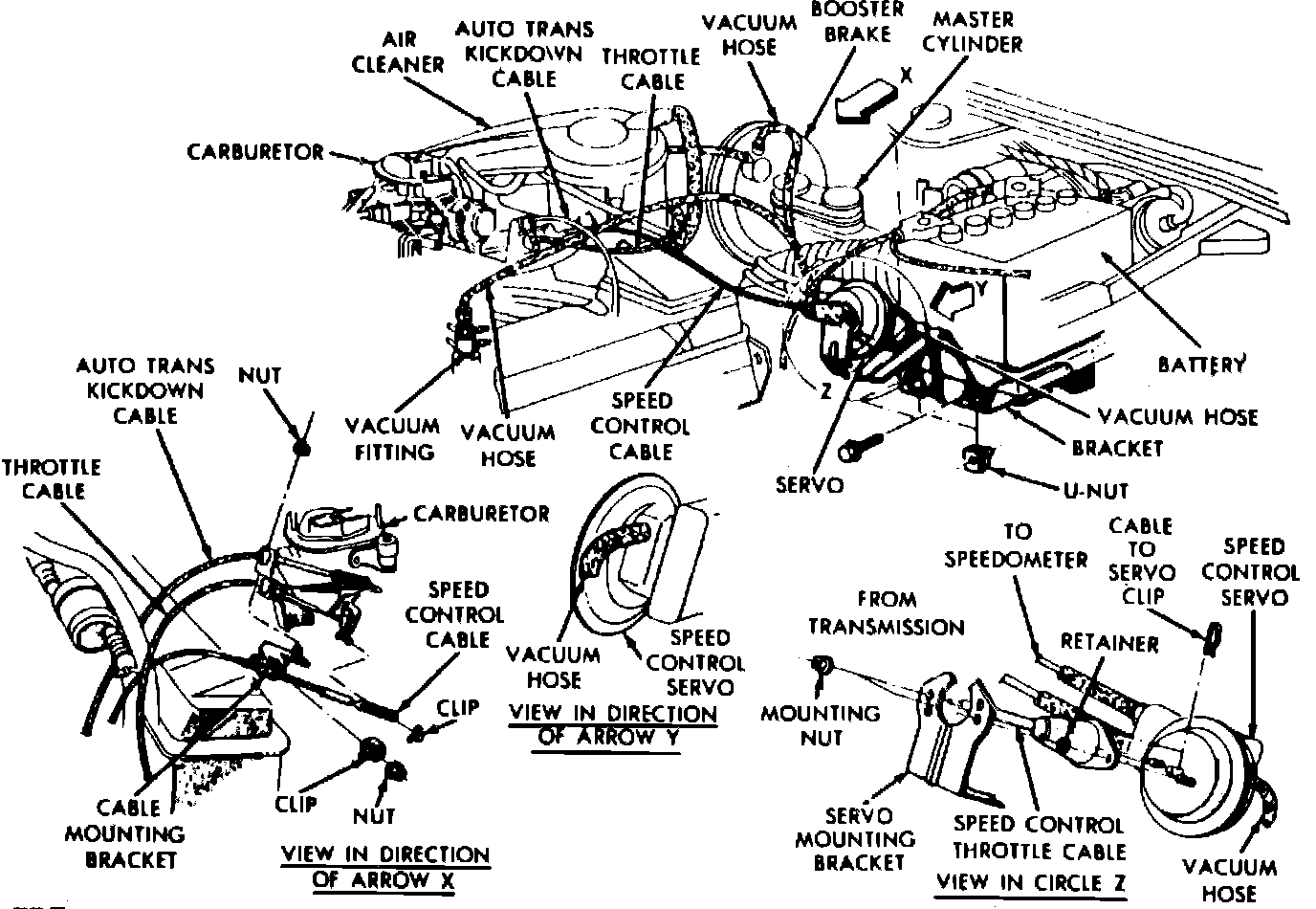

Fig. 17 Speed control cable installation. 1982-84 Rampage & 1983 Scamp w/2.2L engine:

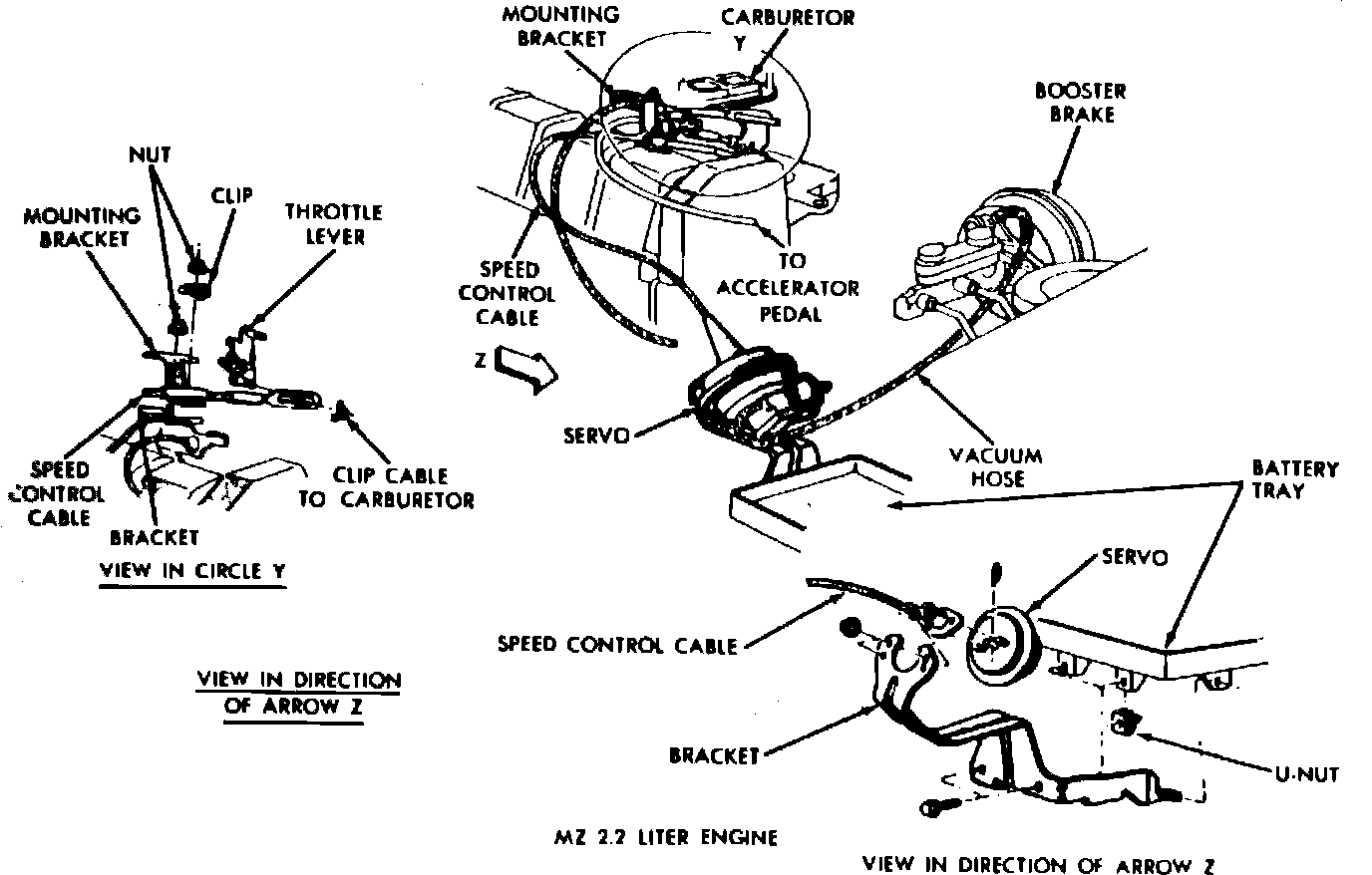

Fig. 18 Speed control cable installation. 1982-84 Rampage, 1983 Scamp & 1984-85 Mini-Vans/Wagons w/2.2L engine:
