Manifold Pressure/Vacuum Sensor: Service and Repair

Fig. 8 Glove compartment removal:

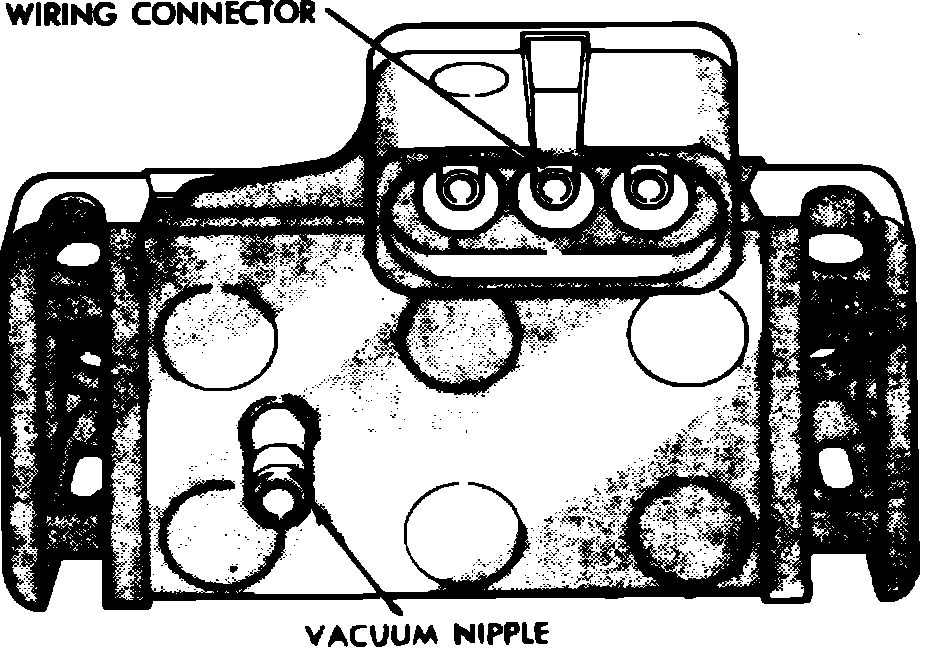

Fig. 9 Manifold absolute pressure (MAP) sensor replacement. 1984:

1984
1. Remove glove compartment, Fig. 8.
2. Disconnect vacuum hose and wiring harness from sensor, Fig. 9.
3. Remove sensor attaching screws, then the sensor.
4. Reverse procedure to install.
