Main Relay (Computer/Fuel System): Service and Repair

Fig. 6 Logic module & automatic shutdown (ASD) relay replacement:

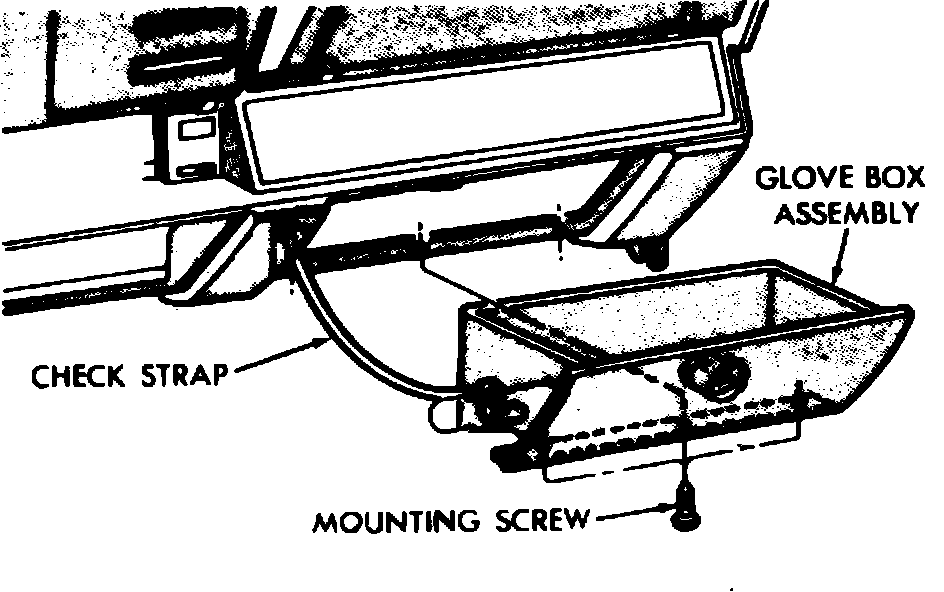

Fig. 8 Glove compartment removal:

1. Remove glove compartment, Fig. 8.
2. Disconnect wiring harness from relay, Fig. 6.
3. Remove relay attaching screw, then the relay.
4. Reverse procedure to install.
