Test 12: Testing CCD Bus System

Fig 1: Test 12 Circuit Diagram

G90I16418

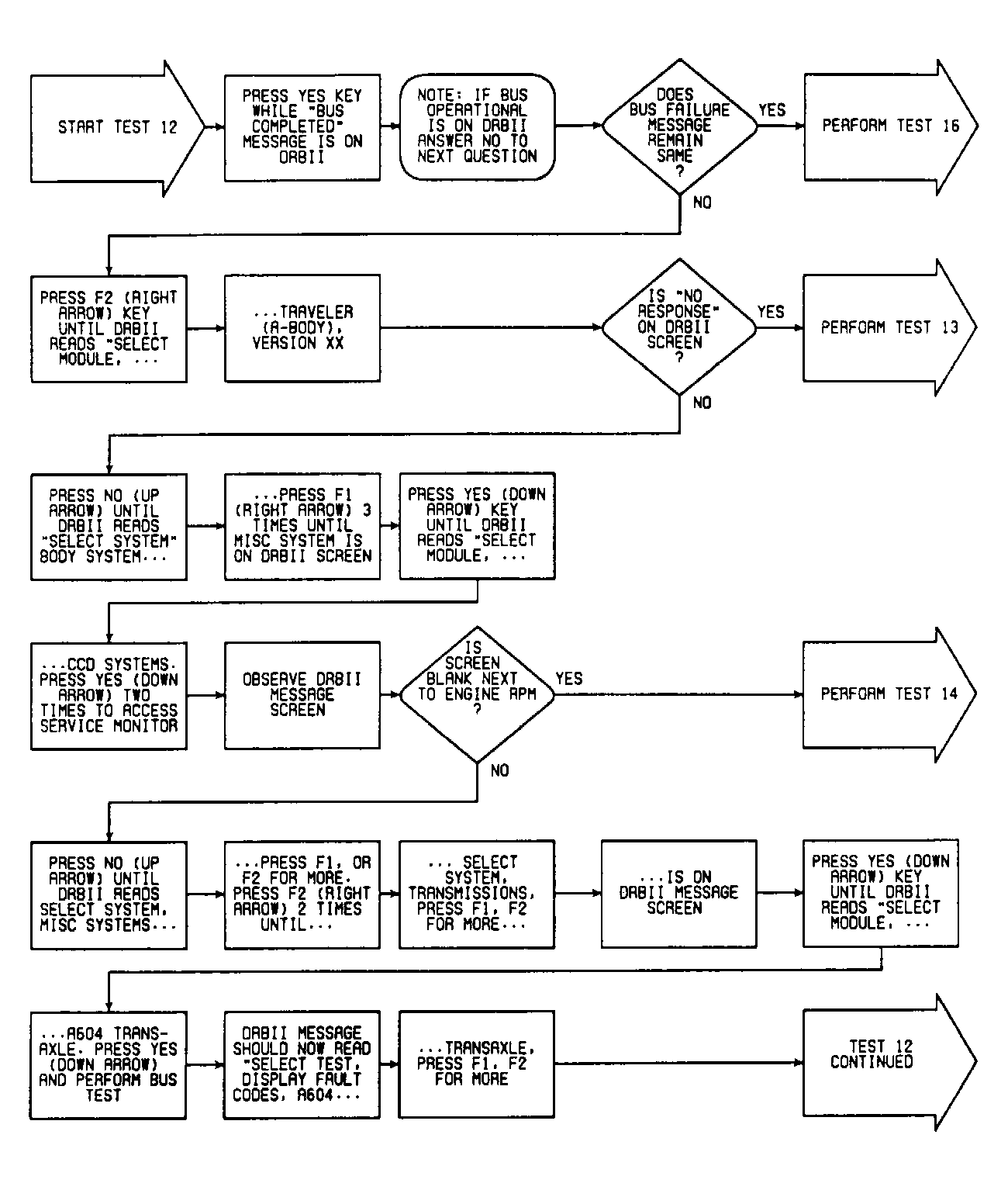

Fig 2: Test 12 Flow Chart (1 of 3)

G90A11544

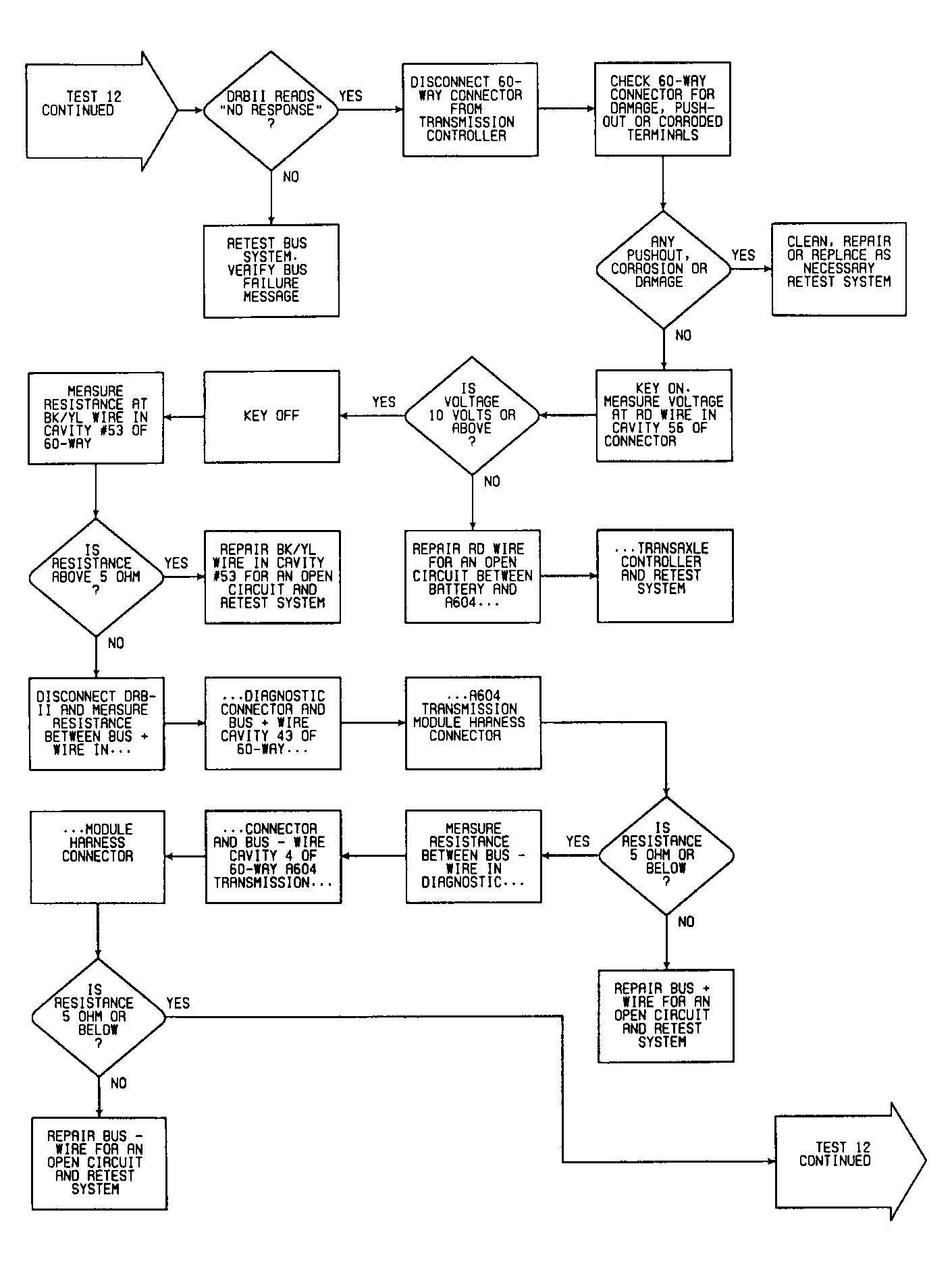

Fig 3: Test 12 Flow Chart (2 of 3)

G90B11545

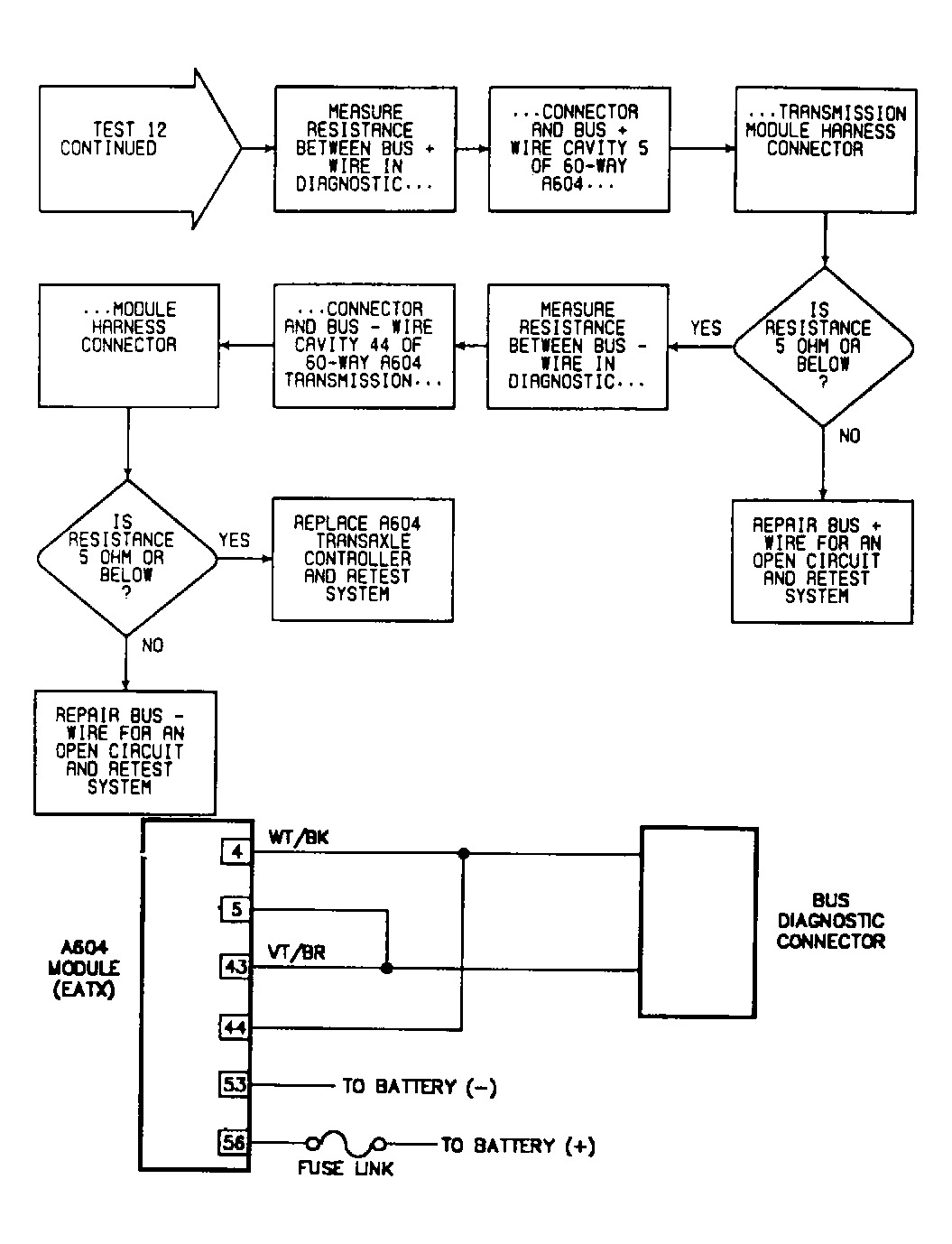

Fig 4: Test 12 Flow Chart (3 of 3)

G90C11546
