Test 16: Check Eng Controller For Bus Operation
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Test 16: Check Eng Controller For Bus Operation

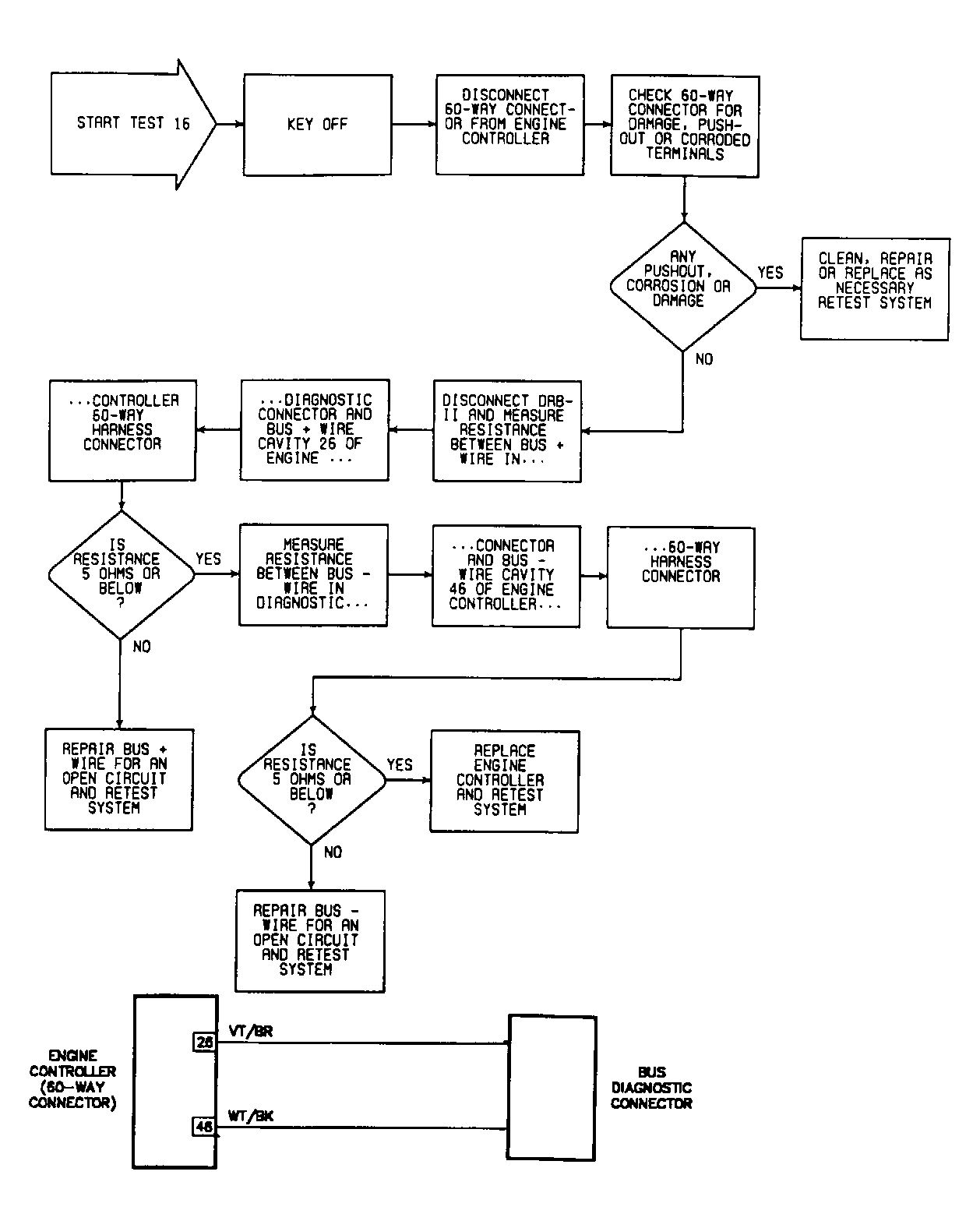

Fig 1: Test 16 Circuit Diagram & Flow Chart
