Test 18: Testing DRB-II For Proper Operation

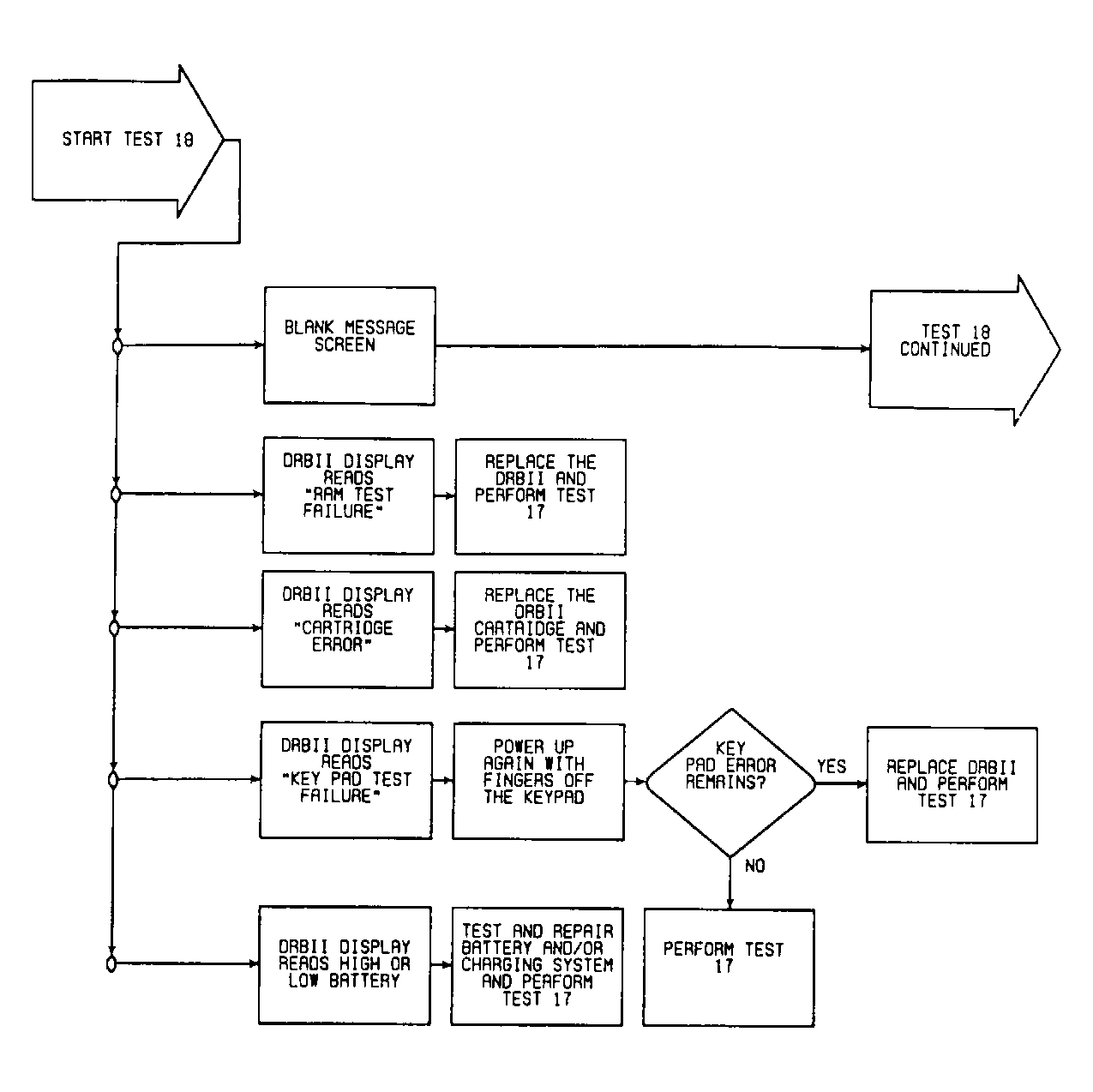

Fig 1: Test 18 Flow Chart (1 of 2)

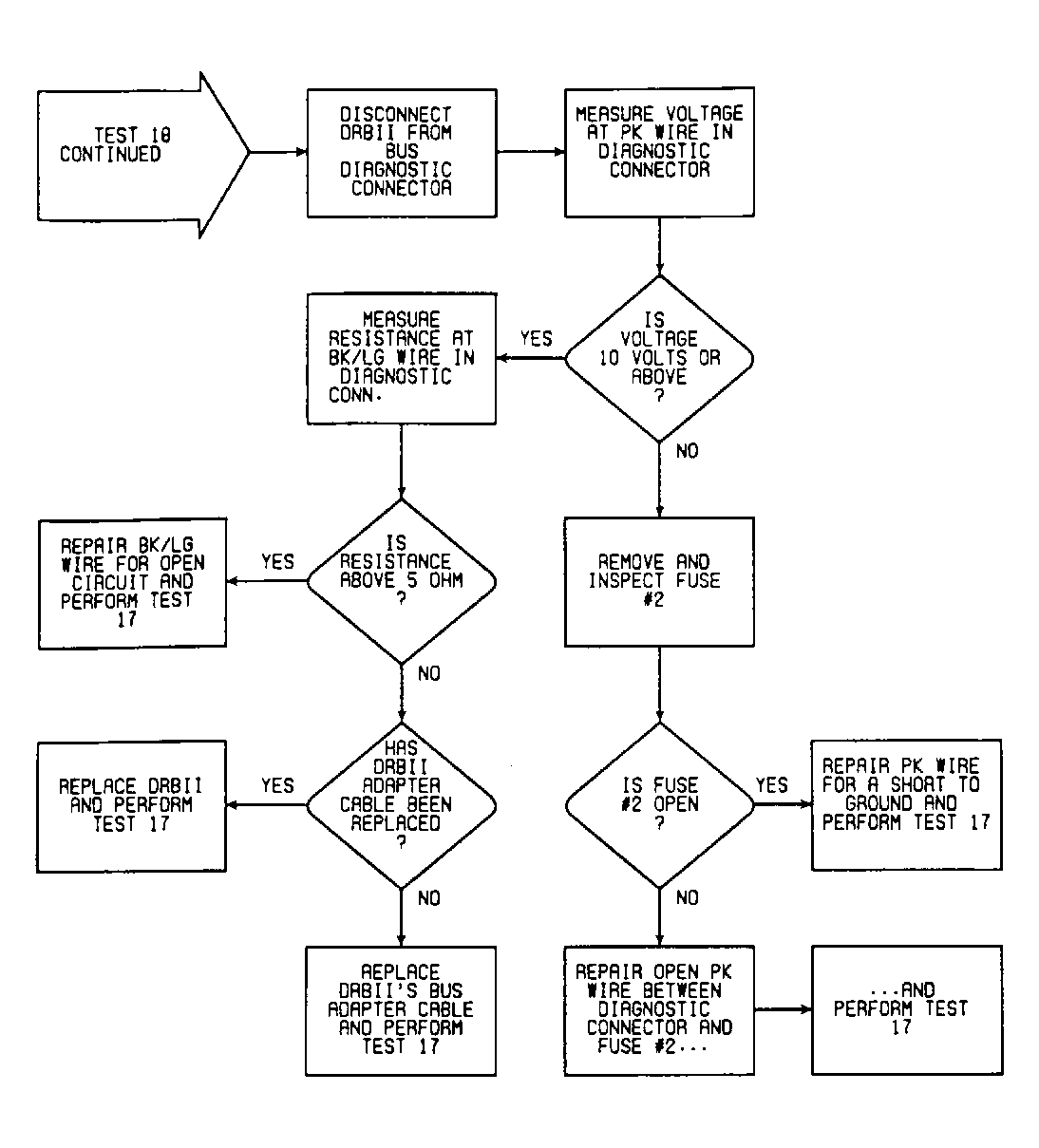

Fig 2: Test 18 Flow Chart (2 of 2)
