Test 8: Repair CCD Bus System For Short To Bat

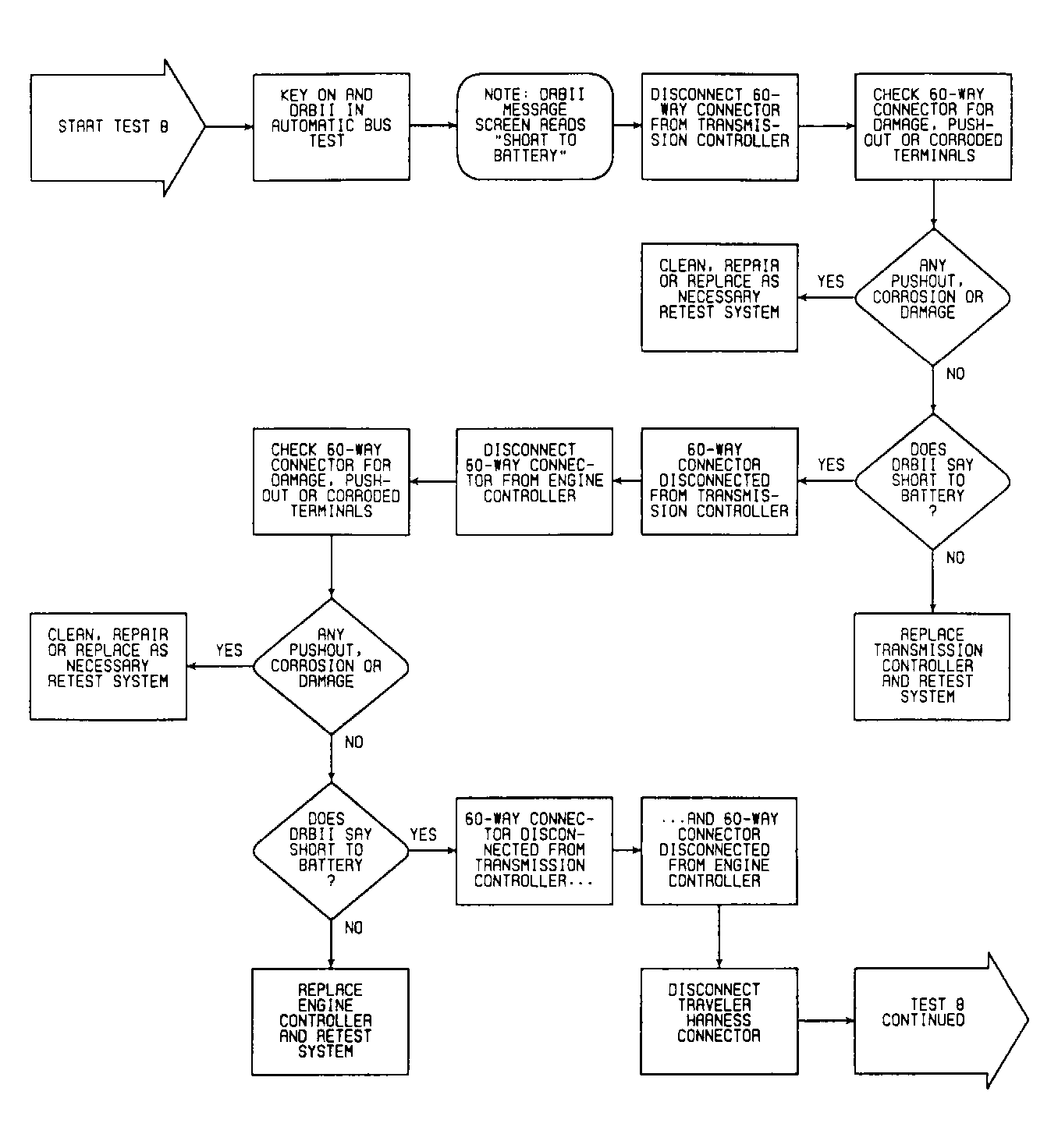

Fig 1: Test 8 Flow Chart (1 of 2)

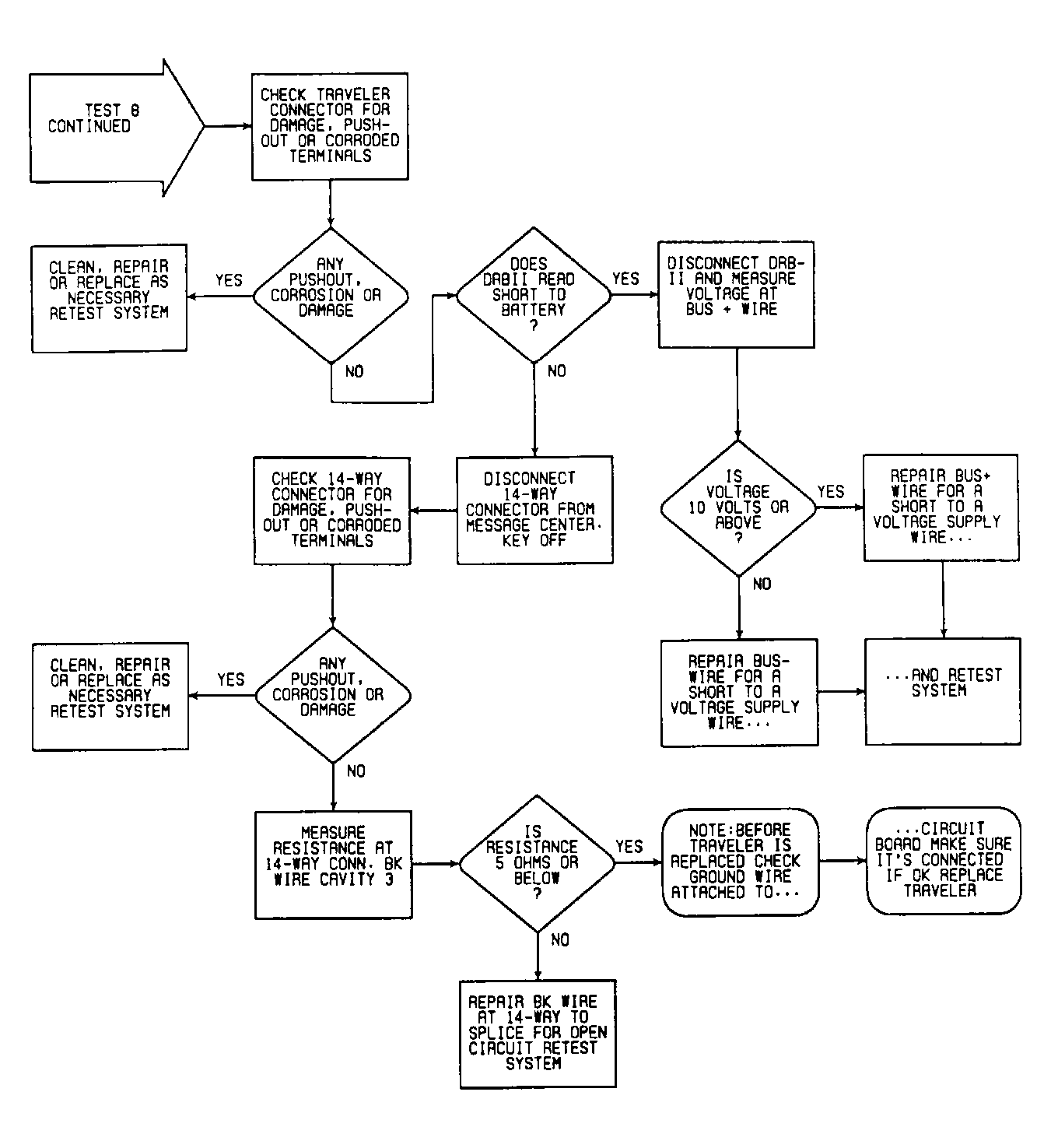

Fig 2: Test 8 Flow Chart (2 of 2)
