Clearance and Design Specifications

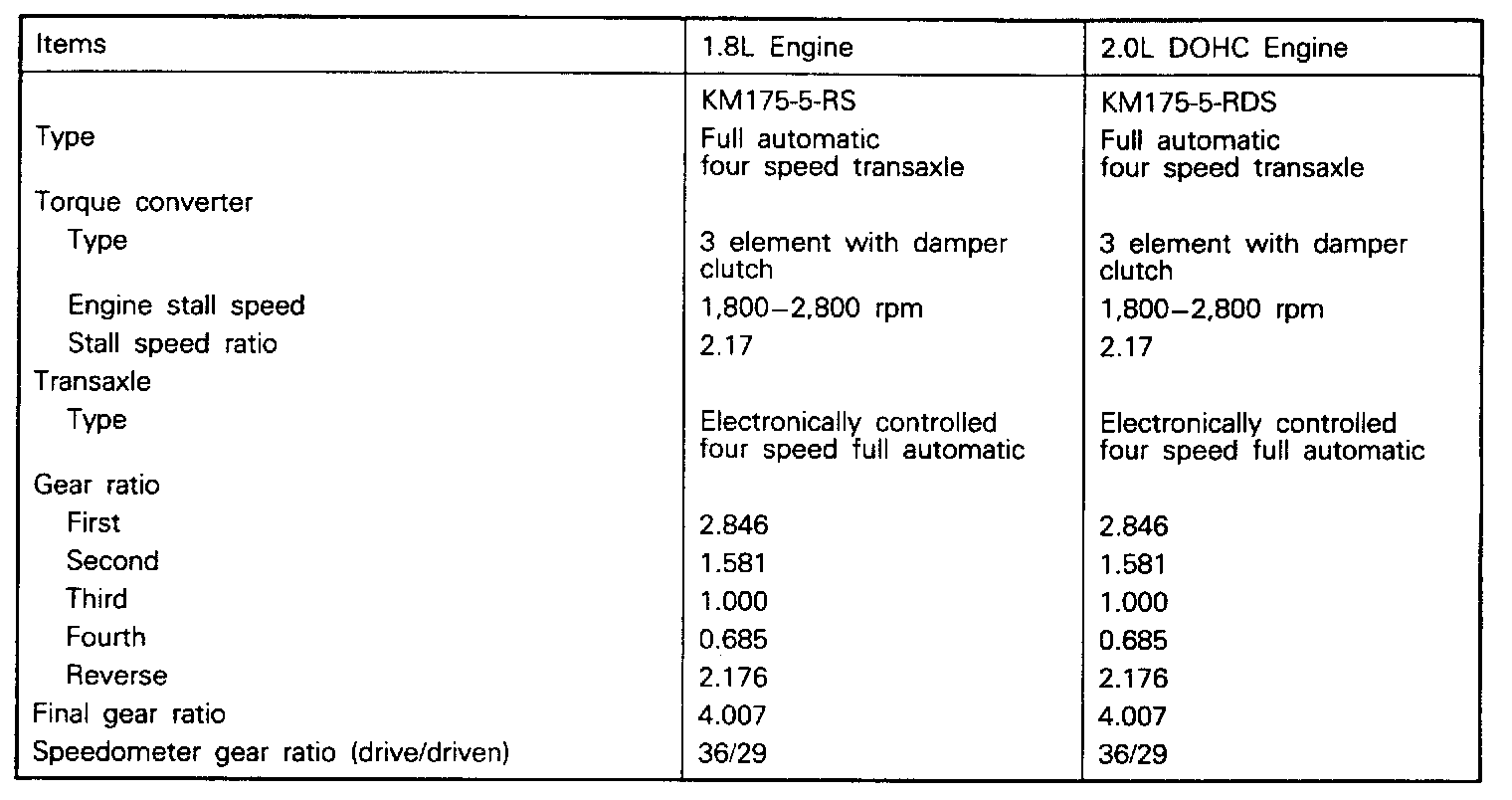

General Specifications:





Service Specifications:

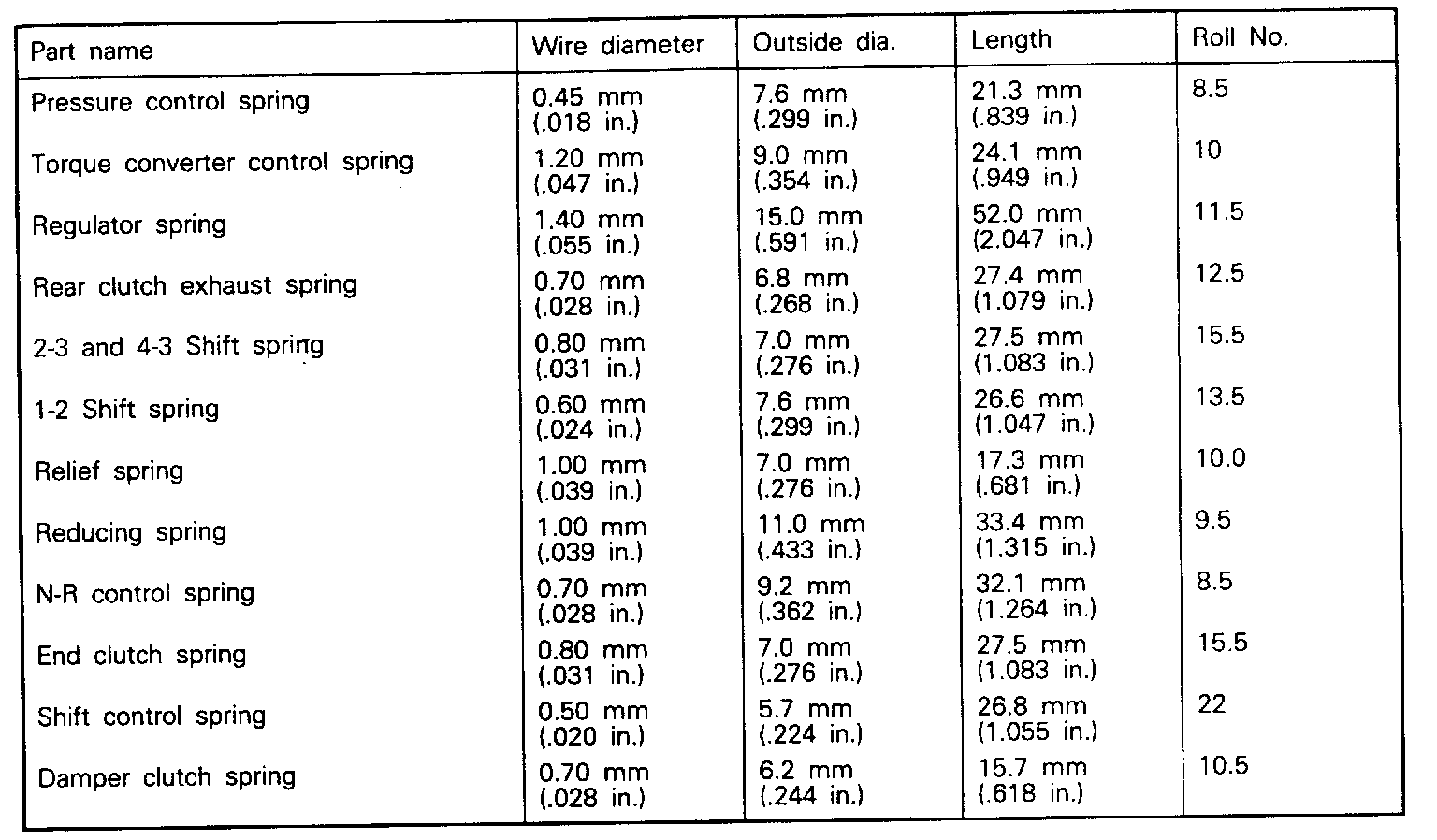

Valve Body Spring Identification Chart:

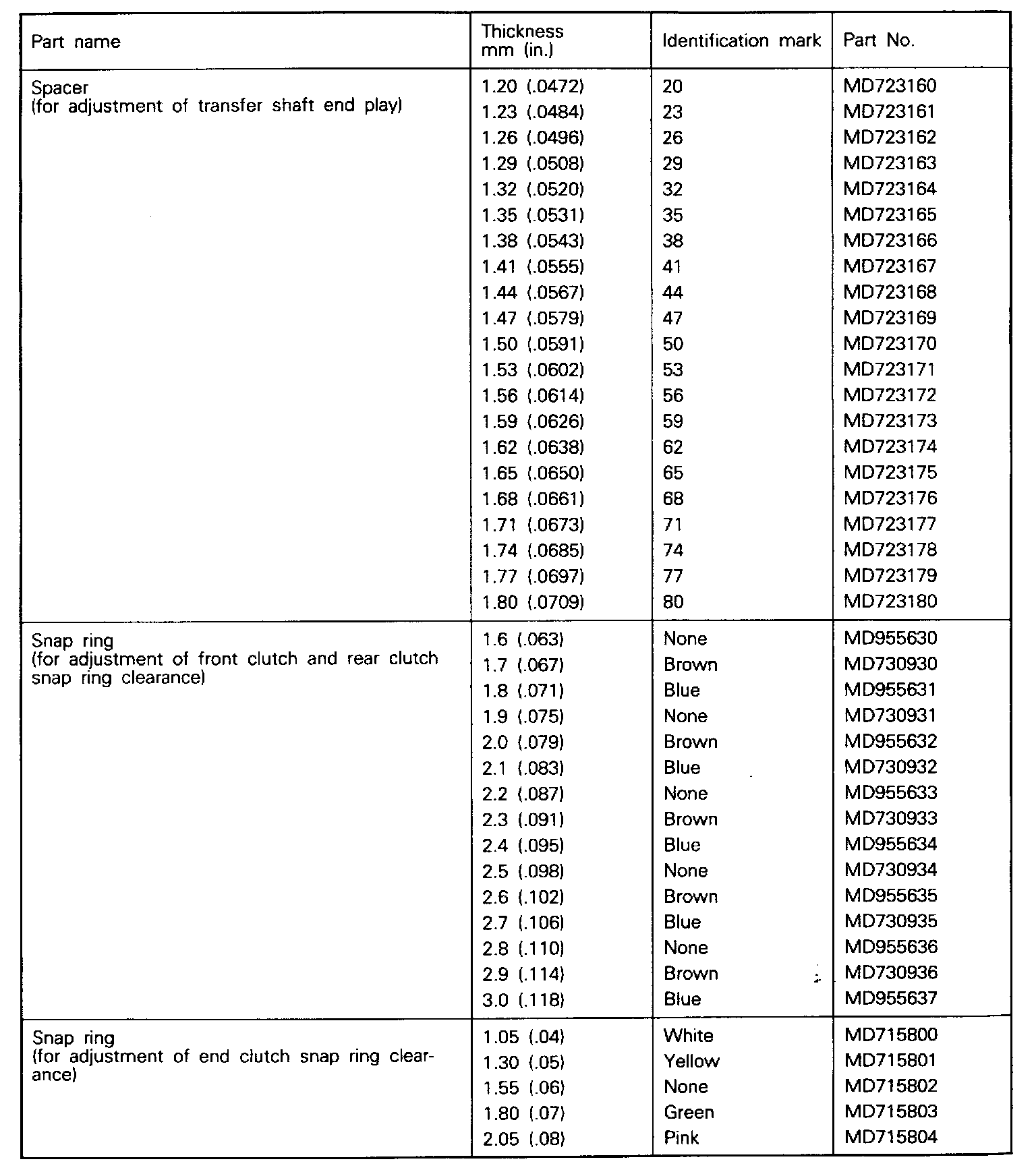

Input Shaft Spacer Set:

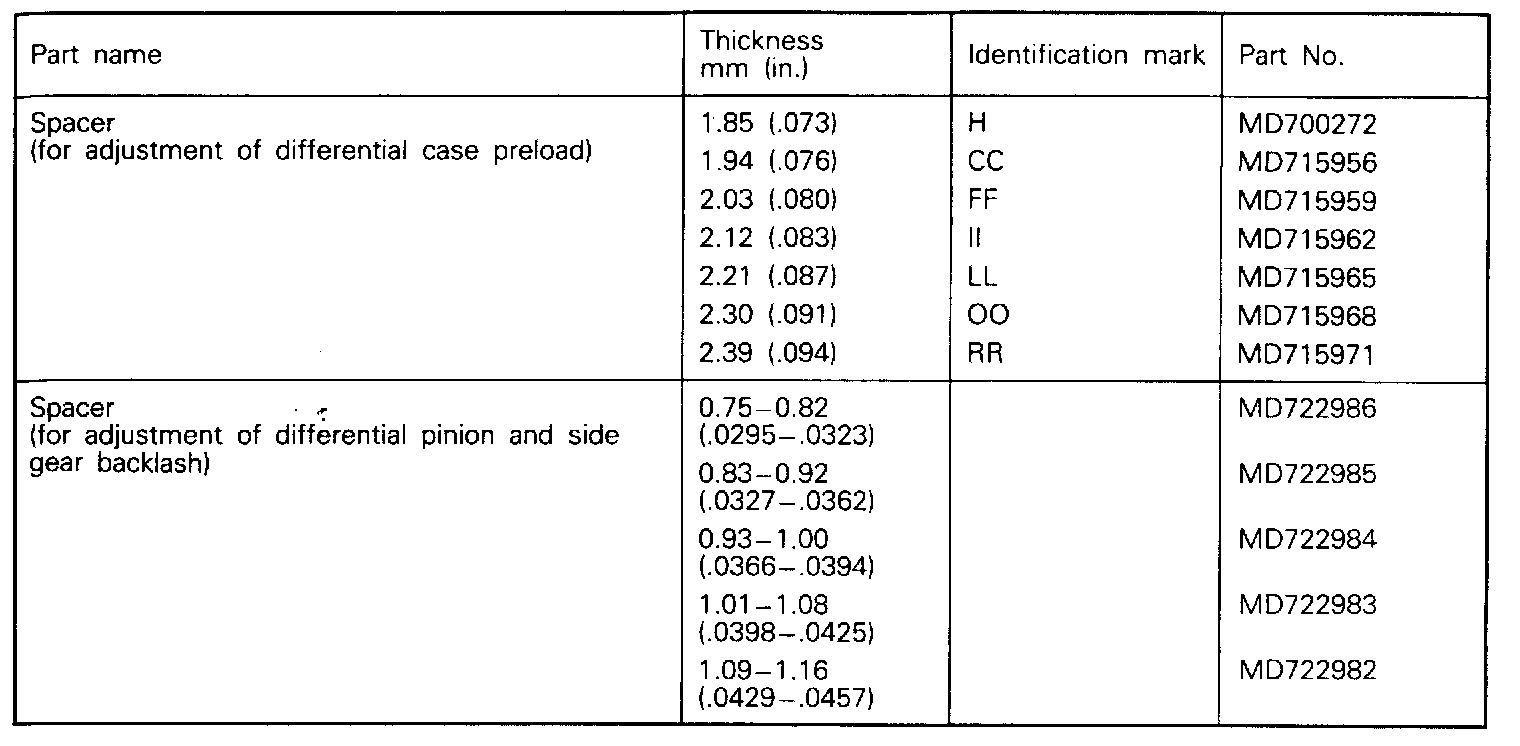

Spacer And Snap Ring Chart:




Continued:





Lubricants:
