Control Assembly: Service and Repair

1. Remove the ash tray receiver.

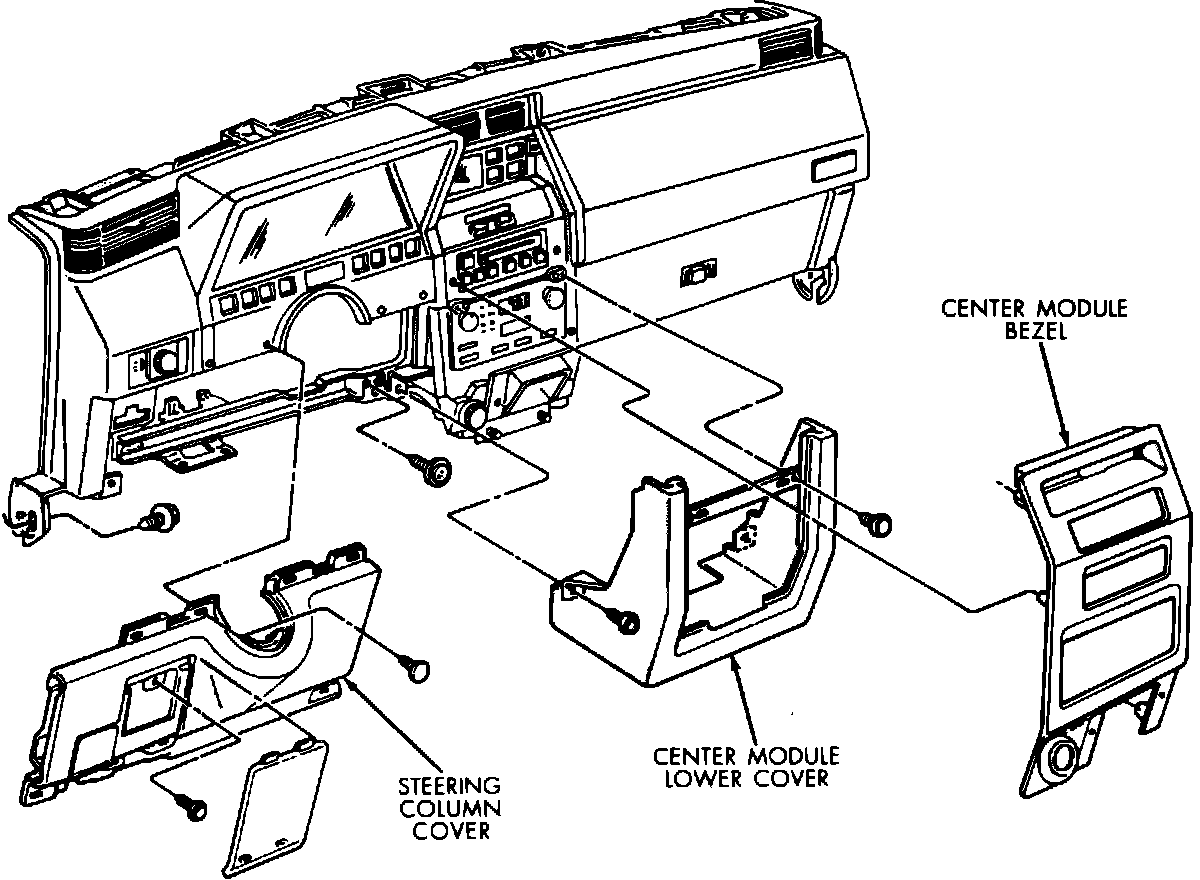

Center Bezel:

2. Remove the center bezel by pulling it reward until the spring clips release.

A/C Heater Control:

3. Remove the control panel retaining screws and pull the control panel reward.
4. Disconnect the temperature control cable, electrical connector, and vacuum connector.
5. Reverse procedure for installation.
