Polarity Protection Relay: Locations

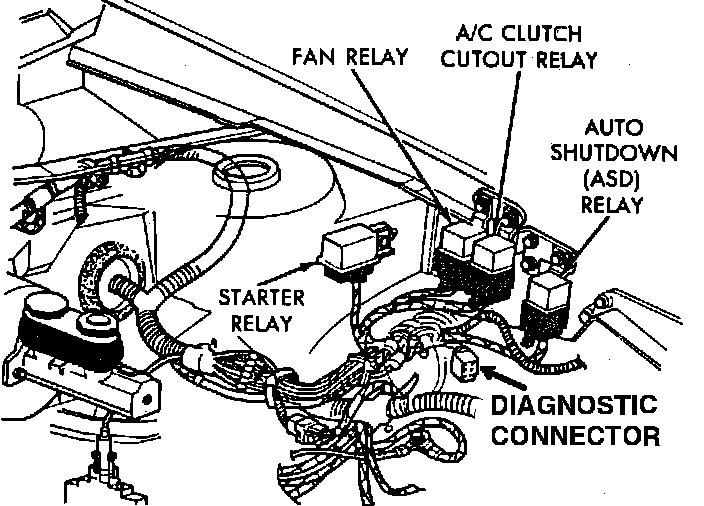

Relay Location:




The ASD relay is found on the left inner fender apron near the left strut tower and the diagnostic connector.
