Engine Control Module: Service and Repair

Single Board Engine Controller (SBEC):

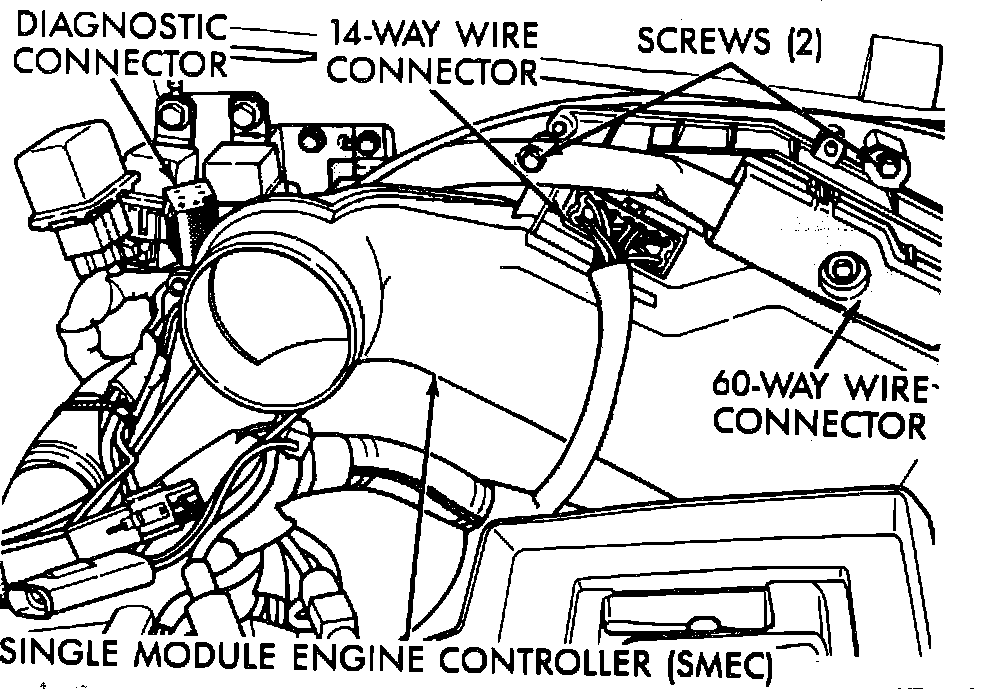

REMOVAL

1. Remove air cleaner duct or air cleaner assembly.
2. Remove battery.
3. Remove (2) module mounting screws.
4. Remove 60-way electrical connector from the SBEC. Remove the SBEC.



INSTALLATION


1. Connect the 60-way electrical connector to SBEC.
2. Mount SBEC to inside left front fender. Install and tighten mounting screws.
3. Install the battery.
4. Install air cleaner duct or air cleaner assembly.
